Description
Description
Fits
| Year | Make | Engine |
| 2015-2016 | Chevrolet | LML w/6.6L Duramax |

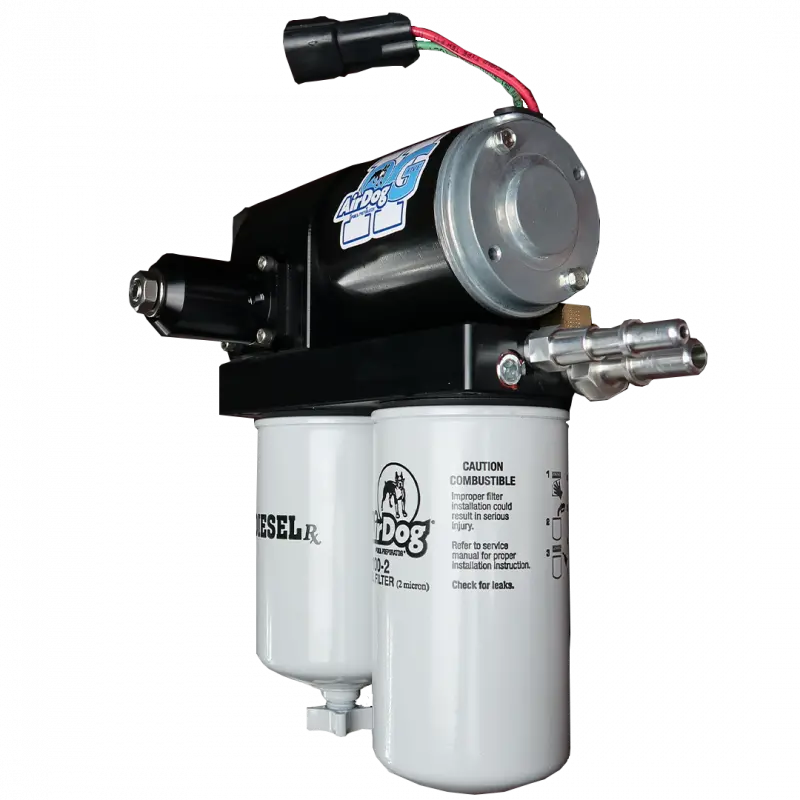

This is the AirDog II-5G DF-220 fuel system for the 2015-2016 Chevy Duramax. This diesel lift pump mounts to the factory frame standoff in front of the fuel tank using our cradle bracket. A 5/8in draw straw is installed in the fuel tank to draw fuel to the pump. The pressure side connects directly to the factory 1/2in fuel line on the frame. The AirDog Air/Vapor return is sent back to the tank through the factory 12mm” suction line once the module is modified. This is a 220GPH (Gallon Per Hour) lift pump system for heavily modified trucks (1000 HP and above). Check out the installation manual for a list of parts that are included with this kit.
Part Number: A7SABC515
Features
- 220GPH Lift Pump
- For use on 1000+HP Trucks
- Mounts to the frame
- 5/8 draw straw
- Connects to factory fuel line
- Ideal for heavily modified trucks over 1000 HP
Installation
- Click Here
Warranty
- Click Here
