Description
Description
Fits
| Year | Make | Model | Engine |
| 2003-2004 | Dodge Ram | 2500/3500 4WD | 5.9L Cummins & 48RE Trans. |

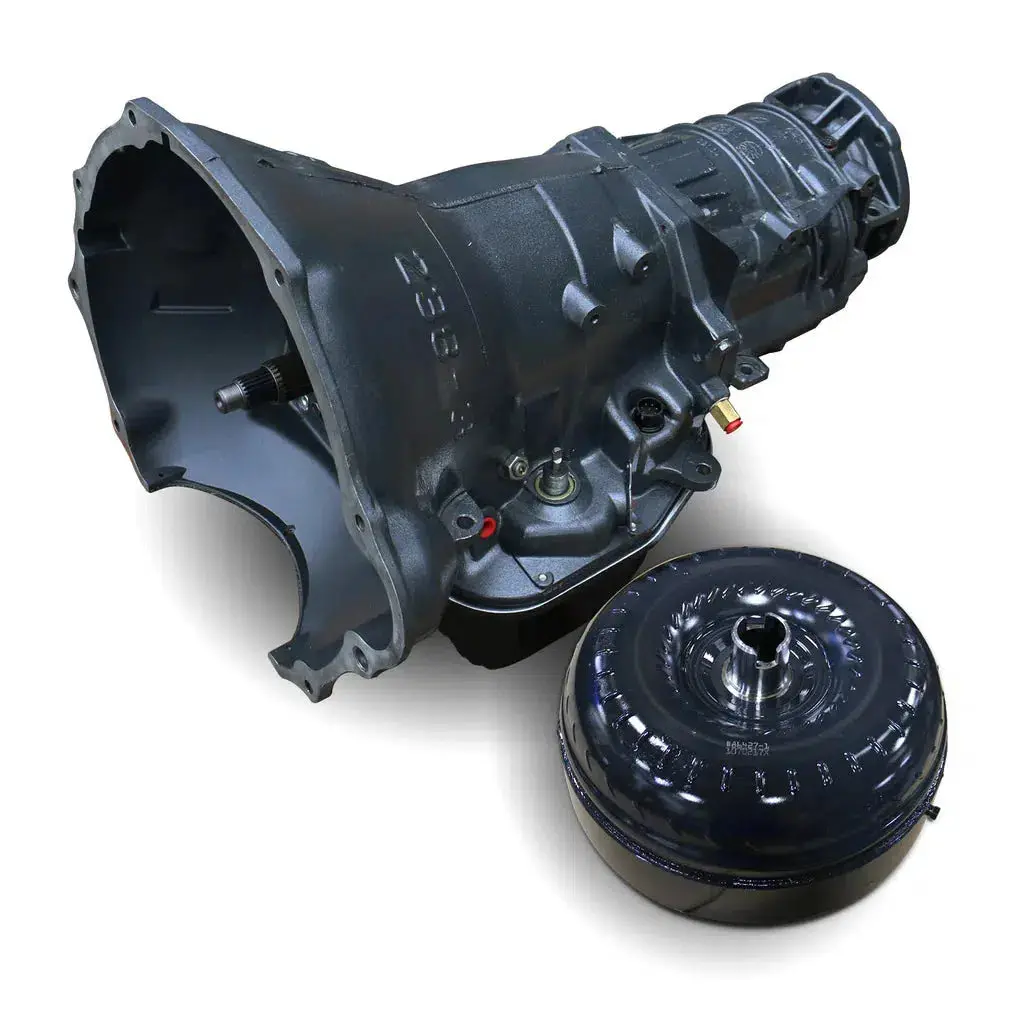

When you purchase a BD transmission and torque converter package, you’re snagging a perfectly paired duo that has been put to the test on the dyno for maximum performance and reliability. Each transmission also includes BD’s own heavy-duty pan for added fluid space. Whether you’re towing, hitting the streets, or dominating the track, when it comes to a reliable transmission that can handle your diesel’s force and strength, BD is the obvious go-to choice.
Part Number: 1064194SST
Features
Transmission:
- Upgraded Valvebody
- Upgraded governor solenoid
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Increased line pressure to 190-200psi
- No shuttle shifting problems
- Modified manual valve for lube in all positions
- Stock thrust bushings replaced with roller Torrington bearings
- Clutch Count: DIRECT 6
- Clutch Count: FORWARD 5
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- High temp/energy Raybestos band
- Billet band lever
- Billet band strut
- Drilled intermediate shaft for increased lubrication
- BD rigid aluminum heavy duty transmission pan
- Pan adds 2qt extra oil capacity
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Increase the durability of your drivetrain
- BD auxiliary full flow filter kit for extra protection
- Cooler line case saver in every transmission
- Every transmission is tested on a dyno
Torque Converter:
- Enhanced Stall – Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Up to triple the amount of lock-up clutch material
Installation
- 9 Hours
- Install Click Here
- Auxiliary Filter Kit Click Here
Warranty
Parts Only – No Race abuse is covered.
- 36 Months
- 150,000 Miles
- Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
