Description
Description
Fits
| Year | Make | Model | Engine |
| 2005-2007 | Dodge Ram | 2500/3500 4WD | 5.9L Cummins & 48RE Trans. |

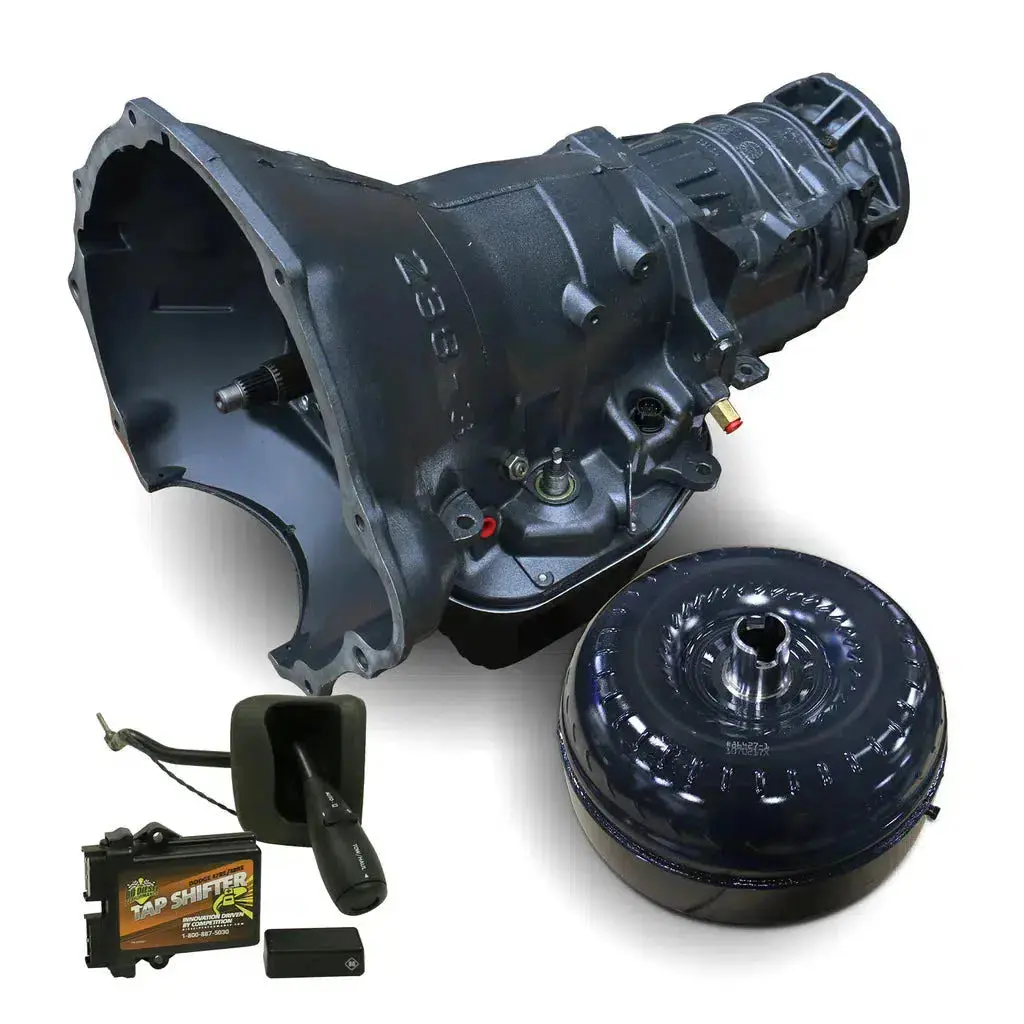

This transmission comes with a new gear lever, gear selection display, and control module, fingertip shifting has never been easier. Upgrade to the 48RE Tapshifter for full electronic gear selection, torque converter lock-up control, gear limiting function, and manual gear mode. Don’t push your stock transmission to the limit – choose BD for added durability and peace of mind. Plus, all of BD’s transmissions come with a heavy-duty pan and most come with an auxiliary transmission filter kit for even more protection. And with a Billet Input Shaft specially designed for rapid acceleration and high torque!
Part Number: 1064234BFT
Features
- Increase the durability of your drivetrain
- Provides manual torque converter lock-up clutch control
- Works with stock shifting and has gear limiting function
- Sealed plug-in wiring, no cutting or tapping of wires required
- Includes new model shift lever, BD control module, BD gear selection display and wiring harness
- Stock thrust bushings replaced with roller Torrington bearings
- Every transmission is tested on a dyno
- Upgraded Valvebody
- Increased line pressure to 190-200psi
- No shuttle shifting problems
- Drilled intermediate shaft for increased lubrication
- Modified manual valve for lube in all positions
- Billet band strut
- Billet band lever
- Billet “Big” fine spline input shaft
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- High temp/energy Raybestos band
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Upgraded governor solenoid
- Cooler line case saver in every transmission
- BD auxiliary full flow filter kit for extra protection
- BD rigid aluminum heavy duty transmission pan
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Pan adds 2qt extra oil capacity
Installation
- 7.5 Hours (Includes swapping of sensors and cooler flush)
- Install – Click Here
- Auxiliary Filter Kit – Click Here
- 48RE Tap Shifter – Click Here
- Tapshifter Custom Map Editor – Click Here
Warranty
Parts Only – No Race or Sled Pull abuse covered.
- 36 Months
- 150,000 Miles
- Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
- BD torque converter must be installed at the time of installation of the transmission – use of a 3rd party or OE converter will invalidate the transmission warranty
