Fits
| Year | Make | Model | Engine |
| 2005+ | Ford | F-250/F-350 | 6.0L, 6.4L, 6.7L Powerstroke |

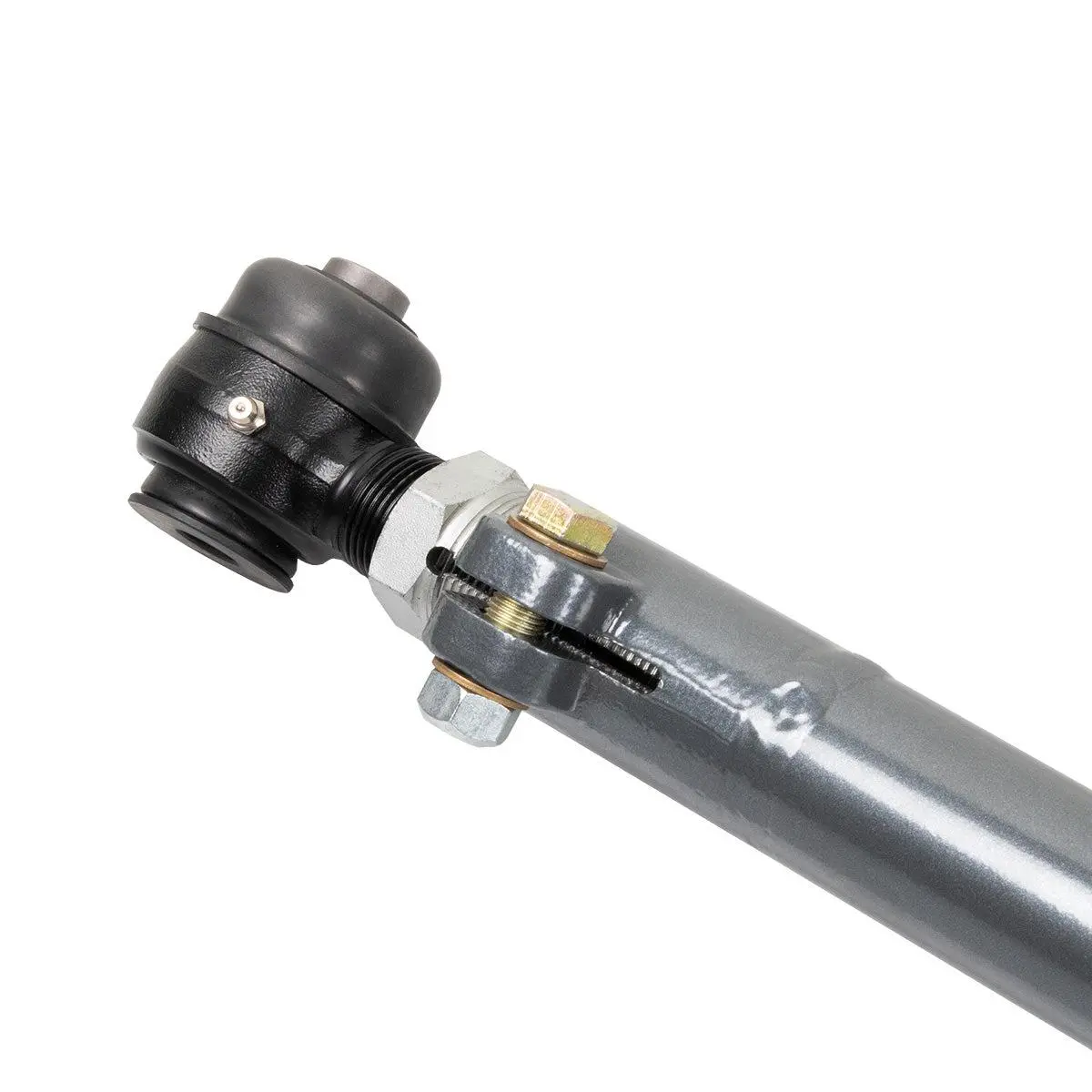

Improve strength, and durability & eliminate any chance of bending, tie rod flop & steering dead-spot commonly encountered with hydro assist setups with Synergy’s HD Tie Rod. 100% bolt-on & fully adjustable these tie rods are a good upgrade for any Powerstroke owner.
Part Number: 8602-11
Superseded Part Number: 8602-01
Features
- Over 40% stronger than the stock tie rod
- Tie Rod bolts right into the factory mounts with no additional wheel requirements
- No factory tie rod components need to be reused
- Includes Synergy HD Metal on Metal Tie Rod Ends with oversized 1 1/4″ shank
- Tie Rod is CNC formed from 1.75″ x .188 wall seamless chromoly tubing and heat treated after forming
- Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
- Synergy Double Adjuster Sleeve allows adjustment of tie rod length without removing it from the vehicle
- Both ends of the bar use pinch bolts instead of jam nuts to simplify installation and adjustment
- Max extended length: 62.5″
- Min collapsed length: 59.75″
Includes:
- (1) 8602 Ford Super Duty tie rod
- (1) 4150-L Ford Super Duty single plane tie rod end
- (1) 4151-L Ford Super Duty through shaft tie rod end
- (1) 3622-12-12-PL Adjuster sleeve 1 4151-L Ford1/4-12 LH Shank Tie Rod End, Thru Shaft
Installation
- Click Here
Notes
- Replacement Tie Rod Ends:
(1) 4151-L
(1) 4150-L - Backwards compatible with factory drag link
- Synergy drag link (8600-01) recommended but not required
- For use in the under-knuckle configuration for Super Duty trucks
- Synergy High-Performance Grease recommended (4119) to be used with all Tie Rod Ends
- Synergy Premium Copper Infused Anti-Seize (4118) to be used with all threaded components (TRE’s and Adjuster Sleeve)
