Description
Description
Fits
| Year | Make | Model | Engine |
| 2007-2018 | Dodge Ram | 2500/3500 4WD | 6.7L Cummins & 68RFE |
When you purchase a BD transmission and torque converter package, you’re snagging a perfectly paired duo that has been put to the test on the dyno for maximum performance and reliability. Each BD transmission also includes BD’s own heavy-duty pan for added fluid space. Whether you’re towing, hitting the streets, or dominating the track, when it comes to a reliable transmission that can handle your diesel’s force and strength, BD is the obvious go-to choice.
Part Number: 1064264BM
Features
Transmission:
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase

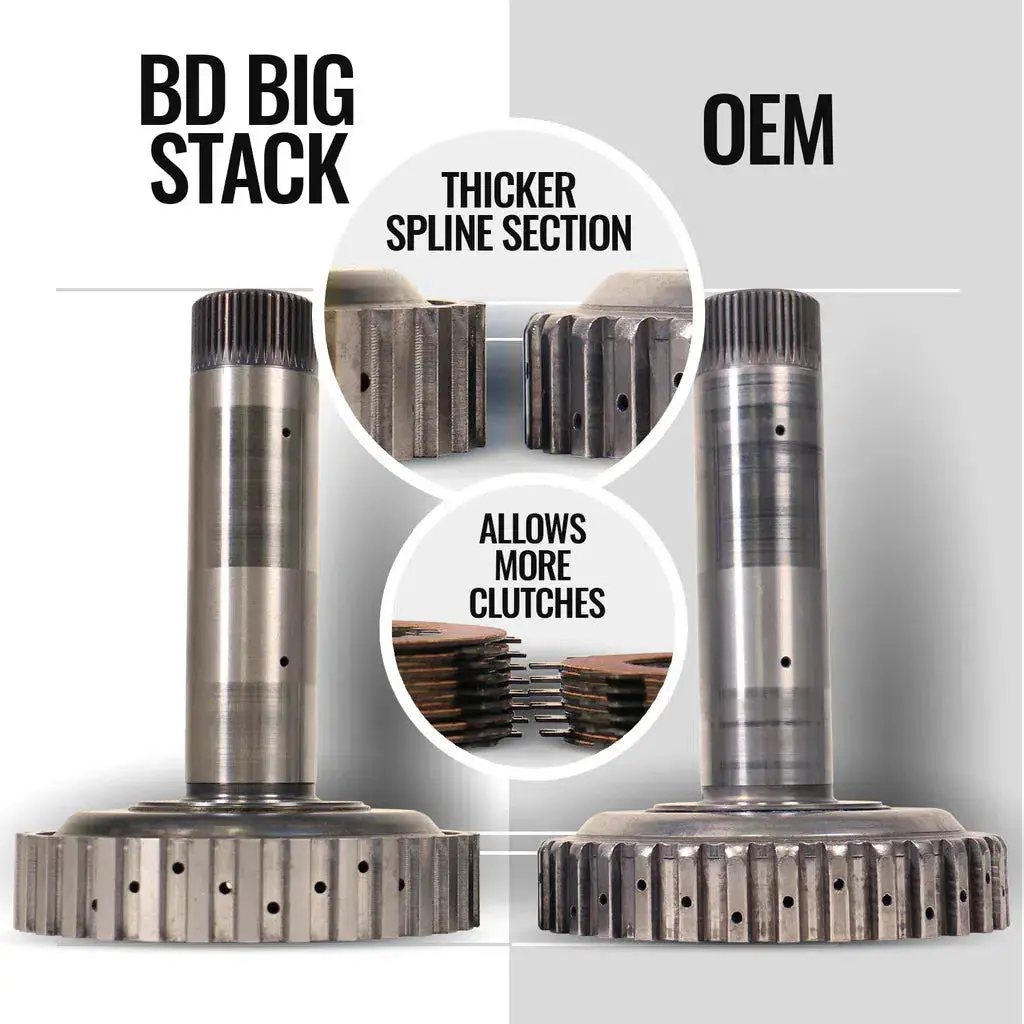

- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- TCC limit valve machined and sleeved to address high wear area with in pump
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
- Performance Transmission but with the added touch of a Billet Input Shaft to take the “snap” from rapid throttle and high horsepower
Torque Converter:
- Triple Disc
- Enhanced Stall – Street/Towing applications
- HD springs absorb shock of engagement
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Thrust bearings – not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximizes torque
- New sprag components ensure long term durability
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
Installation
- 9 Hours
- Install Click Here
- Line Pressure Module Click Here
Warranty
Parts Only – No Race abuse is covered.
- 36-Months
- 150,000 Miles
- Warranty Form Click Here
