Description
Description
Fits
| Year | Make | Model | Engine |
| 2011-2014 | Ford | F-250/F-350 (Dyno Cert) | 6.7L Powerstroke |
| 2011-2016 | Ford | Ford Cab Chassis F-350/F-450/F-550 & F-650 (Chassis Cert) | 6.7L Powerstroke |

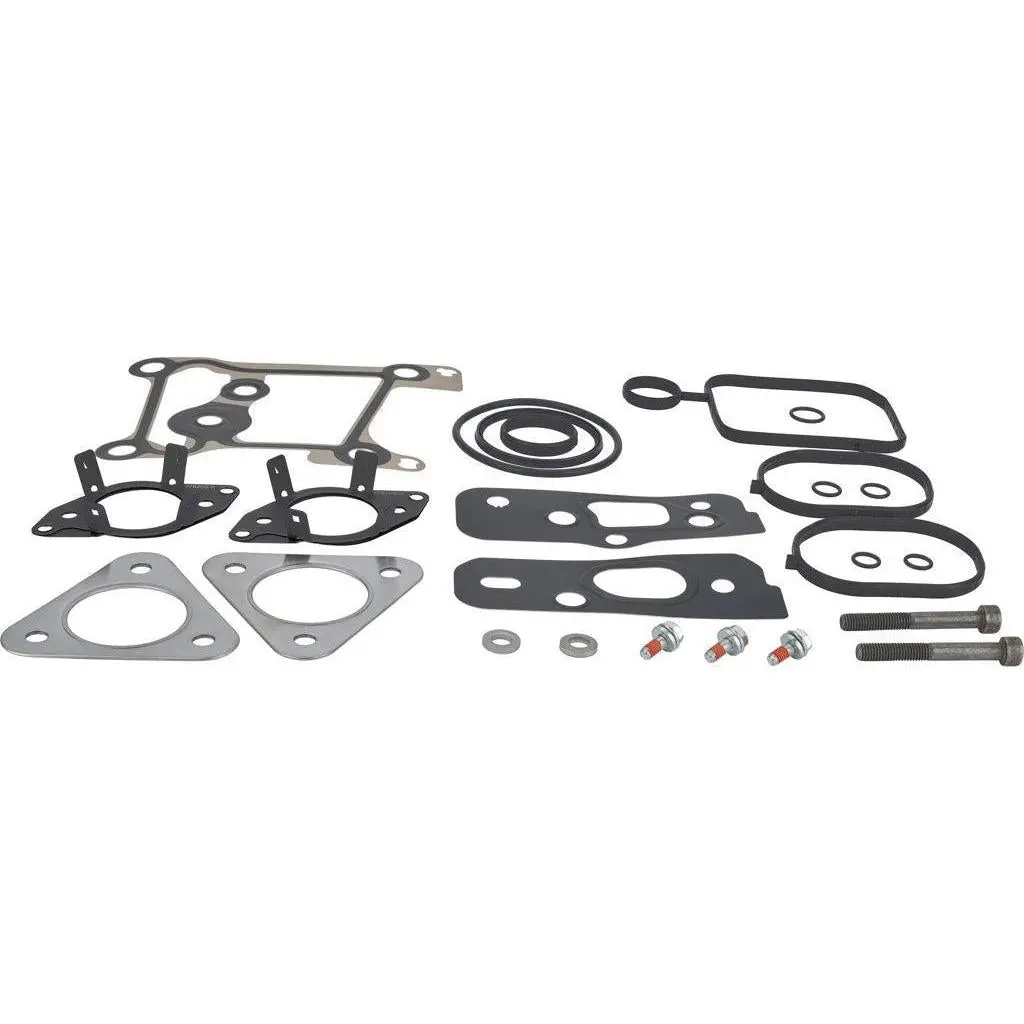

Engineered to OE or equivalent standards, this turbocharger install kit guarantees a secure, leak-free repair and contains all necessary components needed for installation.
Part Number: AP0166
Features
Includes:
- (1) Pedestal to Block mounting gasket OE# BC3Z-6587-A
- (1) Outlet Ducting Seal OE# BC3Z-8590-D
- (1) Fluid Seal Ring OE# BC3Z-8527-N
- (2) Fluid Seal Ring OE# BC3Z-8527-D
- (2) Fluid Seal Ring OE# BC3Z-8527-E
- (2) Exhaust Manifold to Up-pipe Gasket OE# BC3Z-6N640-A
- (1) Intake Manifold Duct Seal OE# BC3Z-8590-L or TRS1084
- (1) Intake Manifold Gasket OE# BC3Z-9439-B
- (1) Turbo to pedestal mounting kit OE# BC3Z-6L612-A
- (2) EGR Bypass Valve Gasket OE# BC3Z-9E464-F
- (1) Intake Manifold Gasket OE# BC3Z-9439-A
Notes
- 2015 and 2016 Cab Chassis need to verify turbocharger part number, as these years included running design changes that went from a ball bearing turbocharger to a journal bearing turbocharger that requires different install components. This kit only works for the ball bearing turbocharger.
- Kit does NOT include Exhaust Clamps
