2011-2019 Chevrolet/GMC Duramax 6-Inch BDS Lift System – BDS 196H

Description

Description

Click here to customize this Kit

Fits

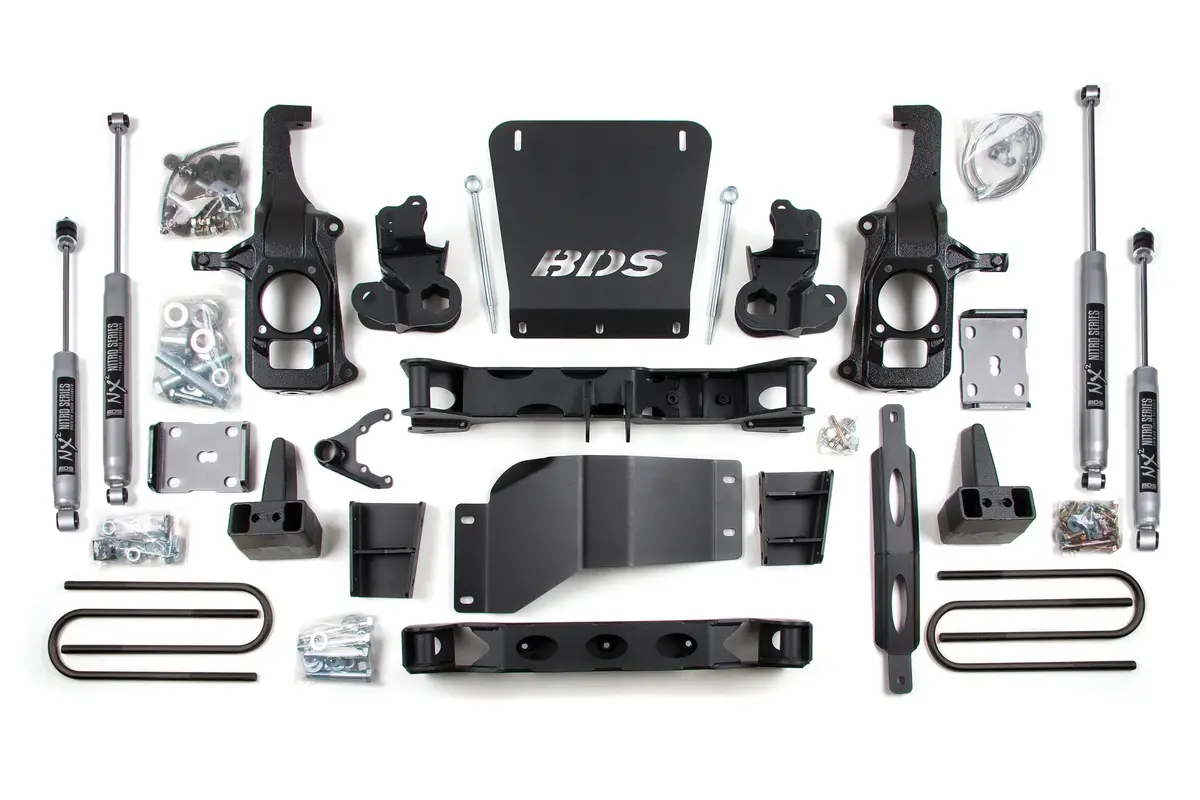

Take your Duramax up a notch with this BDS Suspension 6.5″ Lift Kit. This kit utilizes high arched cross members that blend perfectly with the angle of the factory-installed lower control arms for a completely integrated look while lifting your vehicle a full 6.5″ dramatically increasing ground clearance at the front cross members and improving operating geometry. A front skid plate and differential skid plate come standard to lock everything together, creating a nearly indestructible subframe for extreme off-road protection.

Part Number: BDS196H

Features

• 5″ Rear block
• NX2 Series Shocks
• Torsion Bar
• 6-1⁄2″ High Clearance IFS
• Front Skid Plate & differential skid plate
• High arched cross members that blend perfectly with the angle of the factory installed lower control arms
• Clears 37’s
• Retains OE driving characteristics

Tire & Wheel Combinations:

• 37″ x 12.50″ w/ 17 x 8 and 4-1/2″ to 4-5/8″
• 37″ x 12.50″ w/ 18 x 9 and 4-1/2″ to 4-5/8″
• 37″ x 12.50″ w/ 20 x 9 and 5″ – 6″

Notes

• Torsion Bar Tool required to load/unload the torsion bars.
• Will not fit dually’s
• Stock 17″ & 18″ wheels cannot be reinstalled.
• Stock 20″ wheels cannot be reinstalled on 2015-2019 models
• Factory dually wheels cannot be reinstalled.
• Models with two-piece rear driveshaft may require #12161
• If minor front driveline vibration occurs at highway speeds while in 4wd and the vehicle will be used in this situation on a regular basis, we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
