2013–2026 Ram 3500 Cummins 2-Inch Front Leveling Kit (Non-Air Ride) – BDS Model 694H

Description

Description

Fits

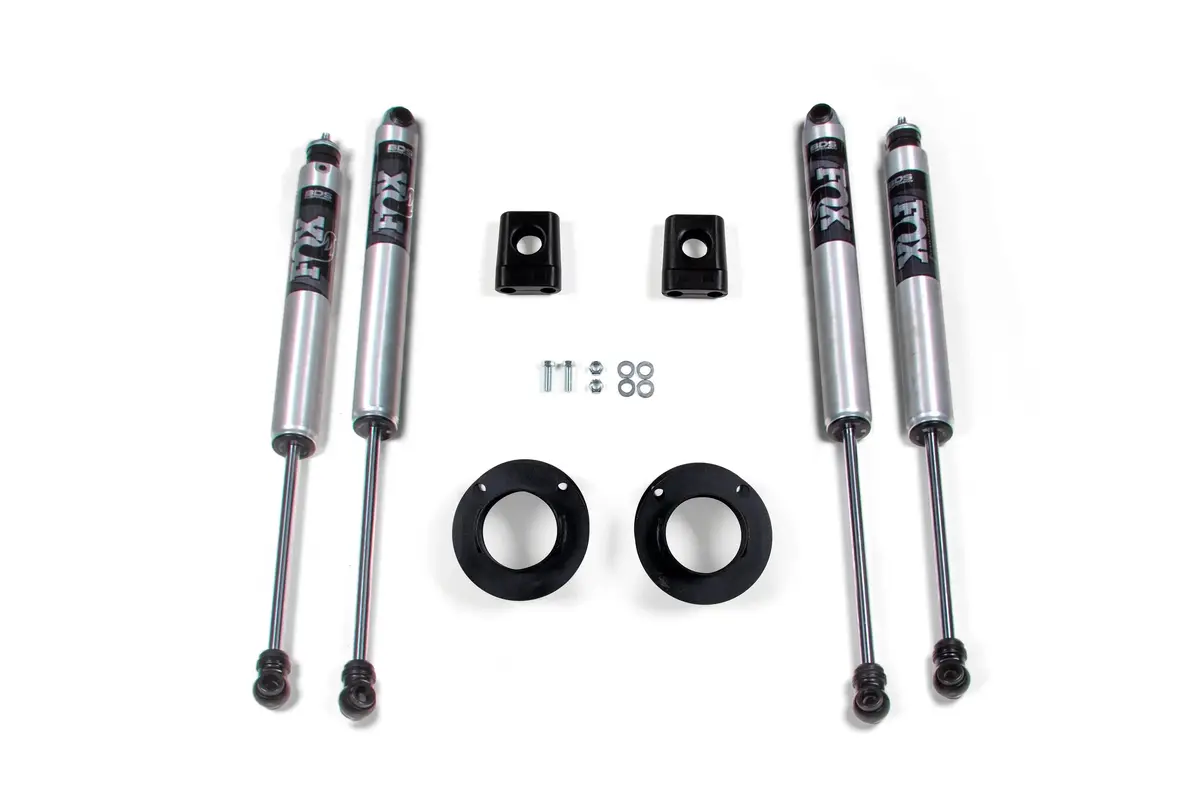

The BDS 694H 2″ Leveling Kits are designed to lift and level the stance of your new RAM 3500 by using a pair of heavy-duty steel fabricated coil spacers that allow for clearance of up to 35″ tires. Compatible with the RAM 3500 4WD trucks, the lift comes from a pair of specially designed top mount steel fabricated coil spacers. They are pitched and indexed to work with the unique coil mount design of the late model RAM HD trucks and are secured to the coil bucket to maintain proper indexing when the coil springs are unloaded. With the additional ride height, the front bump stops are replaced with taller polyurethane units to control suspension compression.

Part Number: BDS694H

Features

• Utilizes heavy-duty steel fabricated coil spacers that allow for clearance of up to 35″ tires
• Coil spacers are pitched and indexed and secured to the coil bucket in order to maintain proper indexing when the coil springs are unloaded
• Taller polyurethane bump stops control the suspension compression
• BDS NX2 gas series shocks to improve the ride quality
• Allows for the installation of up to 35″ tires

Tire & Wheel Combinations:

• 35×12.50 w/ 17×9/18×9/20×9 and 5″

Notes

• Will not fit pre-2013 models
• If your 2013 Dodge 1 Ton has the 4-Link Front Suspension Click Here.
• Will not fit models with rear air suspension.
• Not Designed for Cab and Chassis Models.

Installation

• Installation Guide
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
