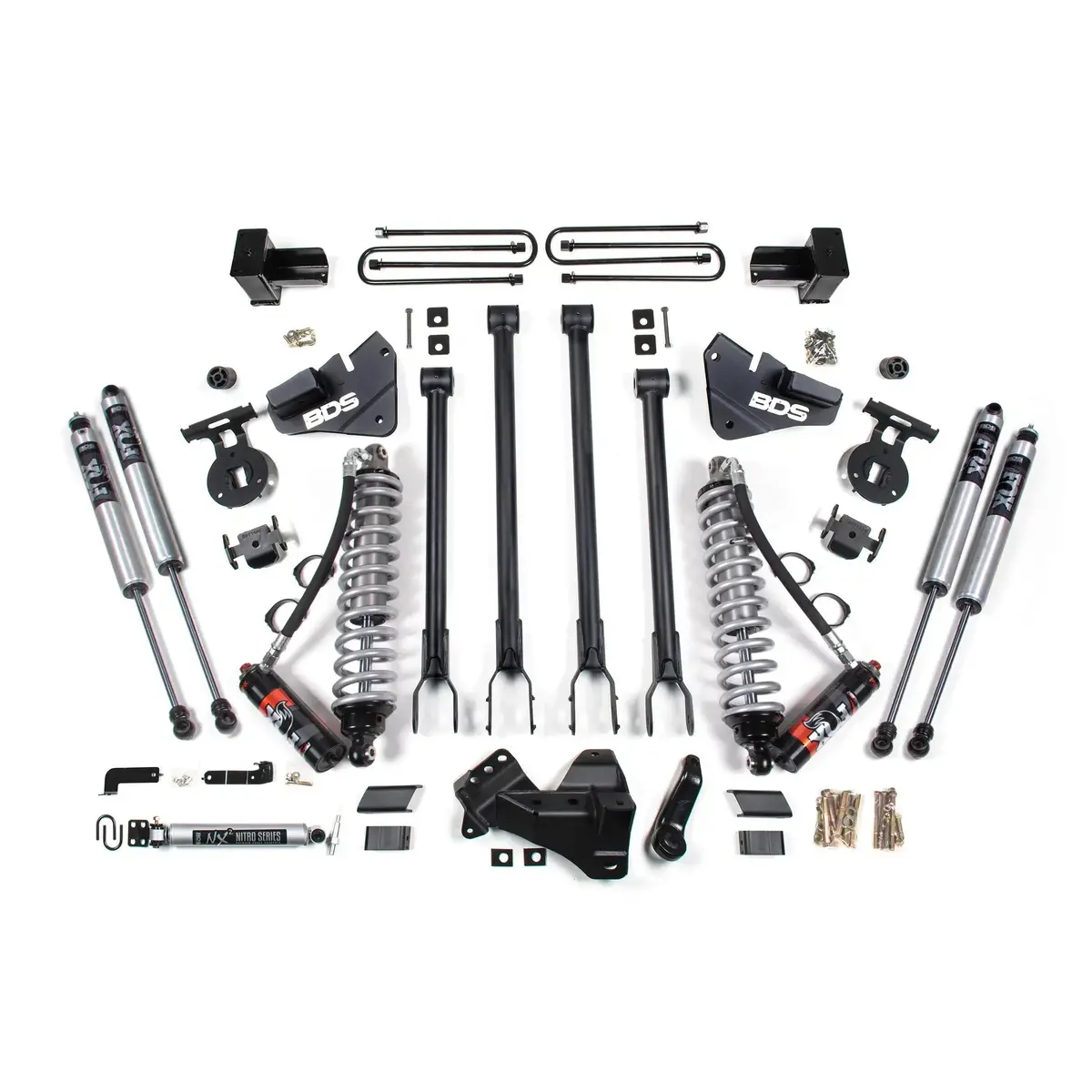

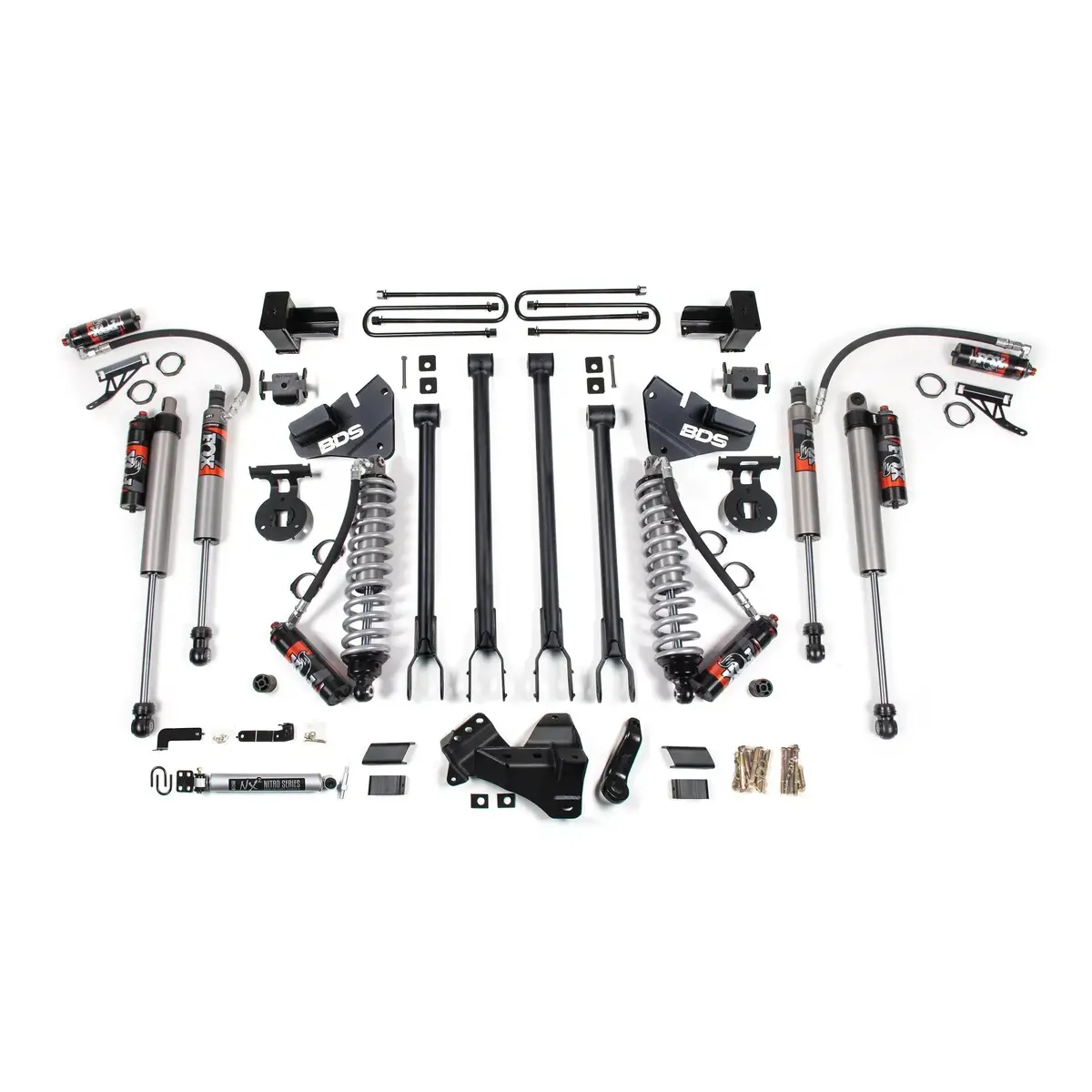

2017–2019 Power Stroke 4-Inch Four-Link Lift Kit – BDS Model 1577FPE

Description

Description

Fits

Year	Make	Model
2017-2019	Ford F-Series	6.7L Powerstroke

Click here to Customize this Kit

Crank your Powerstrokes suspension and handling up to 11 with the BDS 5″ Radius Arm lift kit, this kit has everything you need to safely and properly lift your truck effectively improving your stance and off-road capabilities without compromising ride quality. And with Fox 2.5 Elite Series coilovers; your truck can handle any abuse you throw at it, on, or off-road.

Part Number: BDS1577FPE

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Tire Fitment:

• 37 x 12.5 with and in. Backspace

Additional Info

Auxiliary Front and Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC – Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer’s Warranty

Notes

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• 37 x 12.50 tires may require minor trimming.
• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• If your truck is equipped with a factory rear sway bar add: 123005
