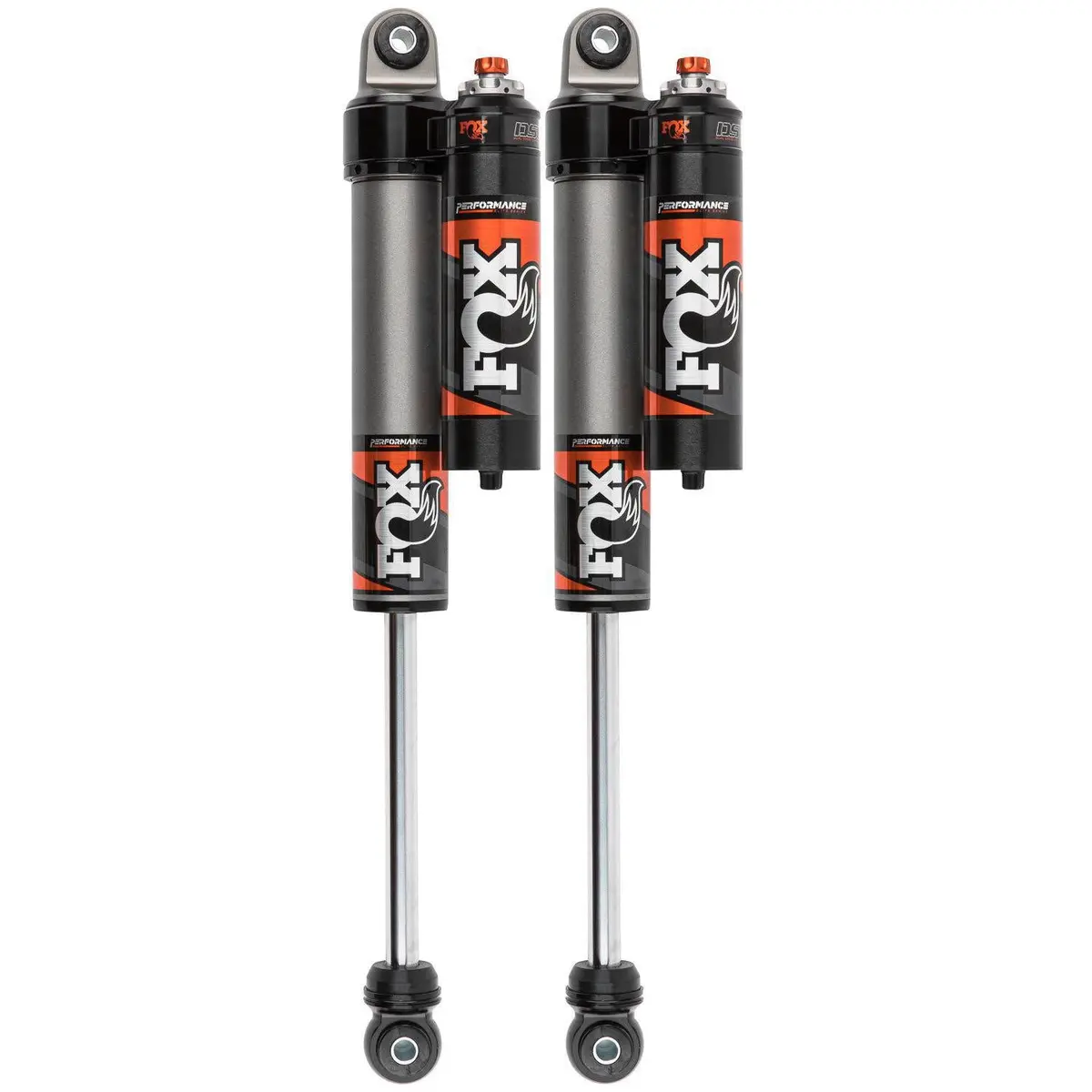

2017–2024 Ford Power Stroke Rear Elite 2.5″ Performance R/R Shock – 4–6″ Lift (883-26-100)

Description

Description

Fits

FOX Performance Elite Series 2.5 shocks improve the stock Powerstroke platform by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation of your truck.

Type III anodization prevents corrosion and wear of the 2.5″ aluminum bodies. External reservoirs increase oil capacity, remove dead space from the shock body, and decrease the harshness associated with nitrogen ramp-up. Cooler shock temperatures, more travel, and consistent damping forces result. Each reservoir features a Dual Speed Compression (DSC) adjuster; strategically mounted to eliminate interference with aggressive tires at full lock.

Part Number: 883-26-100

Features

• Aluminum Body & External Reservoir Dissipates Heat Faster Than Steel
• 2.5″ impact extruded and CNC machined 6061-T6 hard anodized aluminum Body resists rust over time
• Body Plating Hard-anodized for a durable finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8″ hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow Piston design
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length: 34.93″
• Compressed Length: 21.35″
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Travel: 13.58″
• Rear Lift Height: 4-6″
