Fits
| Year | Make | Model | Type |
| 2019-2024 | Dodge / Ram | 3500 Truck | w/o Air-Ride |

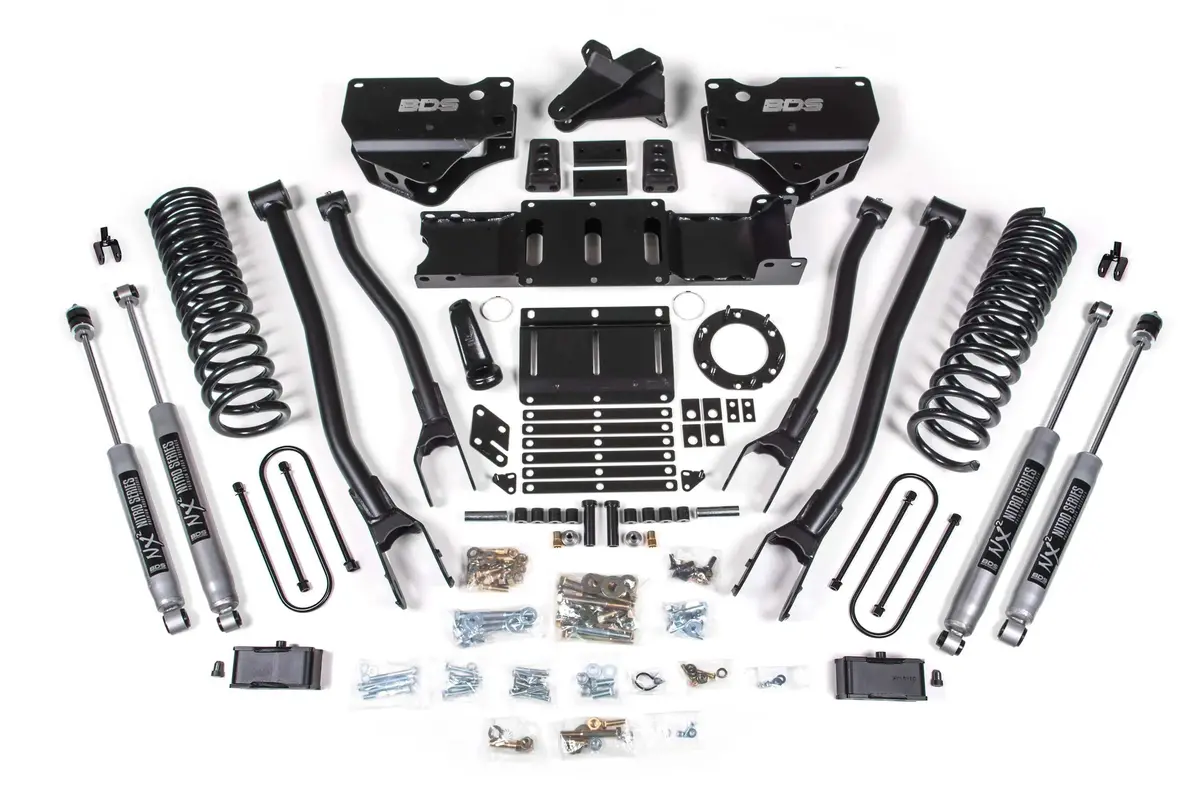

BDS Suspension expands its listings for the late model 2019+ Cummins 3500 4WD diesel trucks with new 4″ 4-link conversion systems. Designed to improve the looks and performance of your new RAM, these new kits join existing radius arm variants to offer improved strength and handling on/off-road. This kit includes everything necessary to correctly lift them for improved off-road capability with room for larger tires while improving overall vehicle handling.
Part Number: BDS1666H
Features
- Progressive rate 4″ coil springs for optimal ride quality on and offroad
- 4-Link kit converts from radius arms for improved handling, strength & control
- BDS NX2 gas shocks
- 2″ rear block
- HD Upper & Lower control arms
- Sway bar drop brackets
- Forged drop pitman arm
- Brake line brackets to allow full droop
- Polyurethane bump stops to limit up travel
- HD bar drop bracket to re-center the front axle
- HD Transmission Crossmember
- Transfer Case indexing ring for 6 & 8 bolt
- Allows clearance for 37″ tires
Tire & Wheel Combinations:
- 37×12.50 w/ 20×9 and 5.625″
- 35×12.50 w/ 20×9 and 4.5″
Notes
- T-case indexing ring available for 6-bolt and 8-bolt equipped models, check the vehicle before ordering
- Will not fit Cab and Chassis models
- Will NOT fit rear air-ride equipped models
- Diesel models only
- Will NOT Fit Mega Cab Aisin Transmissions (8-bolt)
- Does not fit Dually Models with 8-bolt Transmissions (Aisin)
- Does not work with manual shift transfer cases

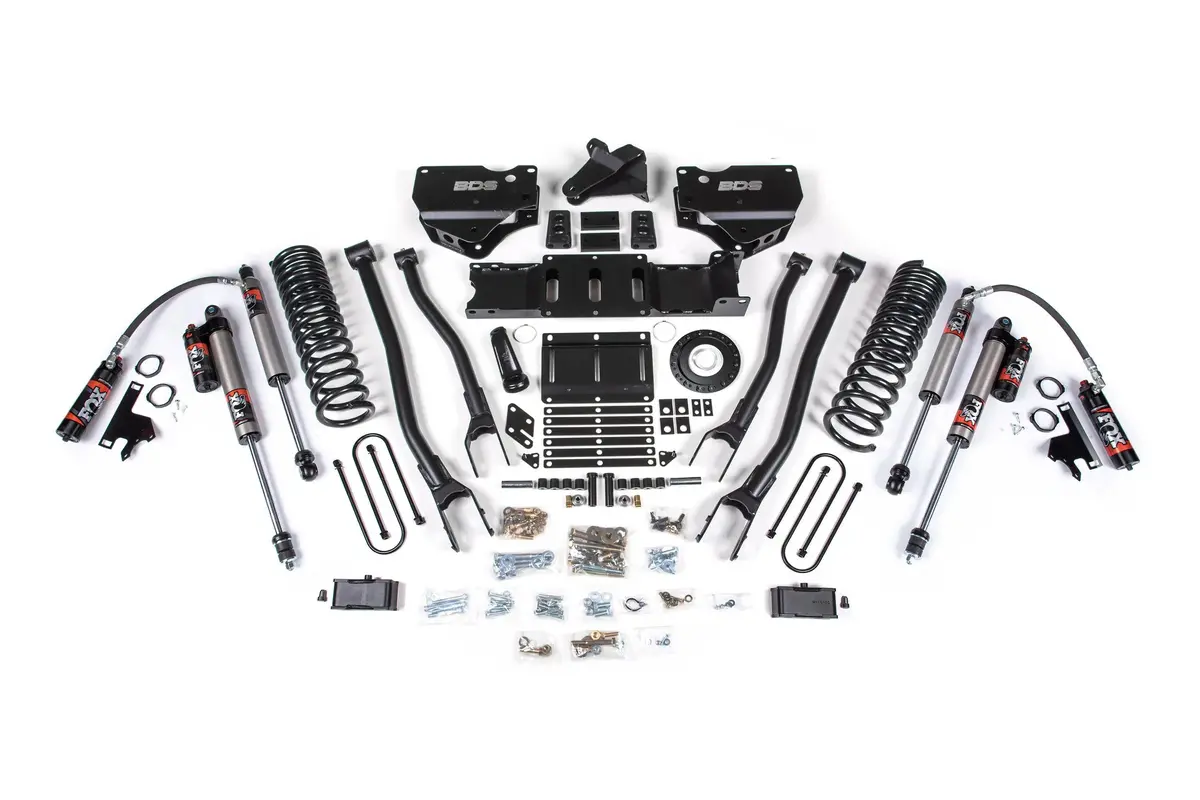

- Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
Installation
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
