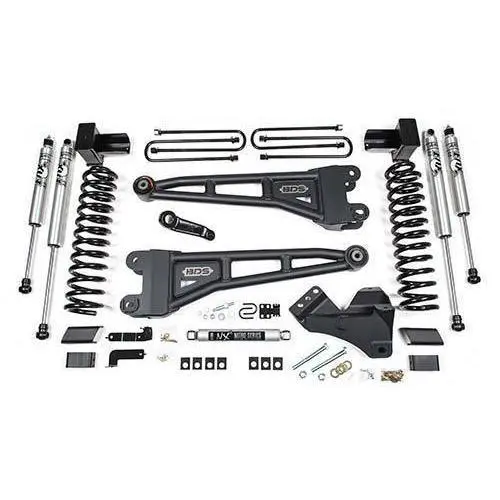

2020–2022 Ford Powerstroke 4-Inch Radius Arm Lift Kit – BDS Model Bds1551h

Description

Description

Click here to customize this Kit

Fits

Year	Make	Model
2020-2022	Ford	F250/F350 Super Duty w/ 6.7L Powerstroke SRW

Note: This will not fit Dual Rear Wheels Models (DRW)

Built to take full advantage of the factory suspension design, these 4″ radius arm systems correct suspension, steering and driveline geometry with room for 37″ tires. The arms bolt into the factory mounting points and reposition the front axle to correct the caster angle.

Part Number: BDS1551H

Features

• Full-Length Diesel Specific Coils for Smooth Ride
• Pitman Arm & Trackbar Bracket for Steering Correction
• HD Radius Arms to Correct Frontend Caster
• NX2 series steering stabilizer with mounting bracket
• BDS NX2 Shocks
•  4.5″ fabricated block with an integrated bump stop wing is used in place of the factory block to level the stance.
• Factory-style 3-1/4″ rubber bushings to minimize road vibrations & allow for a long, maintenance-free bushing life.
• Longer black e-coated u-bolts
• Sway bar relocation brackets
• Bump stop extensions
• Brake line relocation brackets
• Allows Fitment of 37″ Tires – (May require minor trimming)

Tire & Wheel Combinations:

• 37×12.50 w/ 17×9 and 4.5″-5″
• 37×12.50 w/ 18×9 and 4.5″-5″
• 37×12.50 w/ 20×9 and 4.5″-5″

Notes

• Removal of the factory leaf spring block required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• Torque wrench capable of 405 ft-lbs required.
• Due to taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8″ UBT4027 (Qty: 4) is required)

Installation

• Click Here For Installation Instructions
• Difficulty: 4 (where 1 = easiest and 5 = complicated)

Warranty

• Supplemental Drivetrain Limited Protection – 5 Year/60,000 Miles on Ford, Nissan, & Toyota vehicles and 5 Year/100,000 Miles on Dodge/Ram, GMC, & Jeep vehicles.
• Free, no cost protection for BDS customers
• Could save thousands of dollars on possible repairs
• An easy online registration process
• Available for most late-model vehicles
