Fits
| Year | Make | Model | Engine |
| 2020-2025 | GMC/Chevrolet | Silverado/Sierra 2500/3500 2WD/4WD | L5P, 6.6L Duramax |

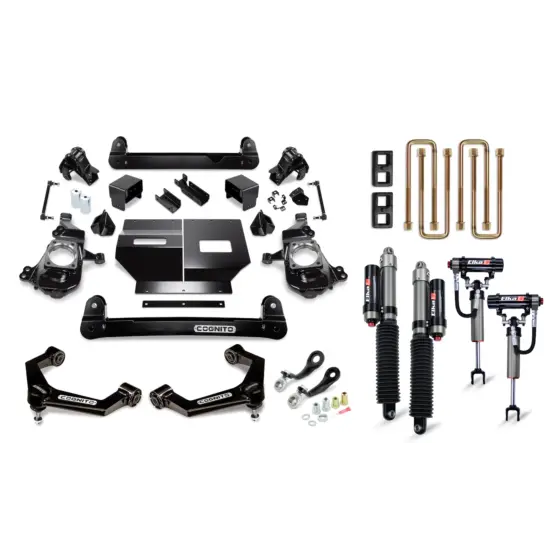

Elevate your Duramax with this premium, all-inclusive 4″ Elite Lift Kit W/ Elka 2.5 Reservoir Shocks!
The Ball Joint SM Series Upper Control Arms provide style, function and performance by correcting ball joint angles in lifted and leveled trucks. They are powder-coated, semi-gloss black, welded, boxed sheet metal arms. Pre-installed maintenance-free ball joints and pivot bushings are included.
Pitman and Idler Arm Support Kit replaces weak factory components in Chevy/GMC trucks and SUVs. Solves a decades-old steering problem that affects both stock and aftermarket systems.
The Elka 2.5 shocks feature Dual Speed Compression adjustment, providing a smoother ride, less noise (no more squeaks or rattles), better handling on and off-road, and improved towing capabilities.
The 2” Block and U Bolt kit includes 2″ tall powder-coated semi-gloss black cast steel blocks and heavy-duty zinc-plated U-Bolts.
Part Number: 210-P1151
Features
- Yields 4″ of front lift & 2″ of rear lift
- Block and U-Bolt Kit
- SM Series Ball Joint Upper Control Arms
- Patented Pitman and Idler Arm Support Kit
- Elka 2.5 Performance Series Remote Reservoir Shocks
- Maintains Adequate Droop Travel for Superior Ride Quality
Installation
- 14-hour DIY install time
- Click Here 7024
- Click Here 7244
- Click Here 7267
- Click Here 7271
- Click Here 7381
Tire Fitment
- 37×12.50 tire on stock 20” wheel
Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie back kit plus medium trimming. - 35 on 10” wide wheel +18mm offset
Use tie back kit plus light trimming. - 35 on 10” wide wheel, 0mm offset
Use tie back kit plus medium trimming. - 37×12.50, 9” wide wheel +18mm offset
Use tie back kit plus light trimming. - 37×12.50, 9” wide wheel, 0mm offset
Use tie back kit plus medium trimming. - 37×12.50 on 10” wide wheel, +18mm offset
Use tie back kit plus medium trimming. - 37×12.50 on 10” wide wheel, 0mm offset
Use tie back kit plus heavy trimming.
Additional Fitment
| Year | Make | Model | Sub-Model |
| 2020-2025 | GMC | Sierra 3500 HD | SLT |
| 2020-2025 | GMC | Sierra 3500 HD | SLE |
| 2023-2025 | GMC | Sierra 3500 HD | Pro |
| 2024-2025 | GMC | Sierra 3500 HD | Denali Ultimate |
| 2020-2025 | GMC | Sierra 3500 HD | Denali |
| 2020-2025 | GMC | Sierra 3500 HD | AT4 |
| 2020-2025 | GMC | Sierra 2500 HD | SLT |
| 2020-2025 | GMC | Sierra 2500 HD | SLE |
| 2023-2025 | GMC | Sierra 2500 HD | Pro |
| 2024-2025 | GMC | Sierra 2500 HD | Denali Ultimate |
| 2020-2025 | GMC | Sierra 2500 HD | Denali |
| 2020-2025 | GMC | Sierra 2500 HD | AT4 |
| 2020-2025 | Chevrolet | Silverado 3500 HD | WT |
| 2020-2025 | Chevrolet | Silverado 3500 HD | LTZ |
| 2020-2025 | Chevrolet | Silverado 3500 HD | LT |
| 2020-2025 | Chevrolet | Silverado 3500 HD | High Country |
| 2020-2025 | Chevrolet | Silverado 3500 HD | Base |
| 2020-2025 | Chevrolet | Silverado 2500 HD | WT |
| 2020-2025 | Chevrolet | Silverado 2500 HD | LTZ |
| 2020-2025 | Chevrolet | Silverado 2500 HD | LT |
| 2020-2025 | Chevrolet | Silverado 2500 HD | High Country |
| 2020-2025 | Chevrolet | Silverado 2500 HD | Custom |
| 2020-2022 | GMC | Sierra 3500 HD | Base |
| 2020-2022 | GMC | Sierra 2500 HD | Base |
| 2020 | GMC | Sierra 3500 HD | |
| 2020 | GMC | Sierra 2500 HD |
Warranty
Parts Only
- Limited Lifetime Warranty – Cognito Branded Products
