Fits
| Year | Make | Model | Engine |
| 2020-2025 | GMC/Chevrolet | Silverado/Sierra 2500/3500 2WD/4WD | L5P, 6.6L Duramax |

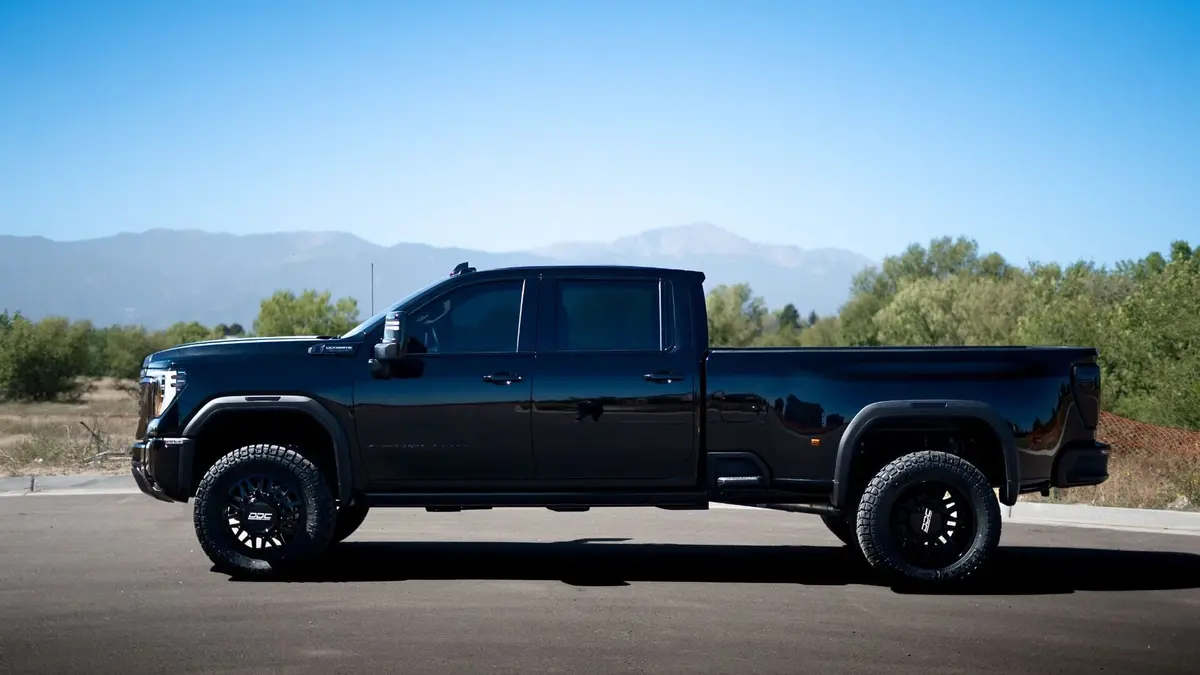

Elevate your Duramax with this all-inclusive 4″ Elite Lift Kit W/ King 2.5 Reservoir Shocks !
The Ball Joint SM Series Upper Control Arms provide style, function and performance by correcting ball joint angles in lifted and leveled trucks. They are powder-coated, semi-gloss black, welded, boxed sheet metal arms. Pre-installed maintenance-free ball joints and pivot bushings are included.
Pitman and Idler Arm Support Kit replaces weak factory components in Chevy/GMC trucks and SUVs. Solves a decades-old steering problem that affects both stock and aftermarket systems.
King 2.5 Reservoir Shocks delivers unmatched performance for your truck with this 4″ Elite Lift. Features bolt-on installation with no cutting or welding, adjustable ride height, and 2.5″ reservoir shocks that increase wheel travel while preventing heat-related performance loss. Serviceable design and easily adjustable with basic tools.
The 2” Block and U Bolt kit includes 2″ tall powder-coated semi-gloss black cast steel blocks and heavy-duty zinc-plated U-Bolts.
Part Number: 510-P1179
Features
- Yields 4″ of front lift & 2″ of rear lift
- Block and U-Bolt Kit
- SM Series Ball Joint Upper Control Arms
- Patented Pitman and Idler Arm Support Kit
- King 2.5 Reservoir Shocks with compression adjusters
- Maintains Adequate Droop Travel for Superior Ride Quality
- Bushings Included: Yes
- Grade Type: Elite
- Maximum Lift: 4
- Mounting Hardware Included: Yes
- Shocks Included: Yes
Installation
- 14-hour DIY install time
- Click Here 7024
- Click Here 7244
- Click Here 7267
- Click Here 7271
- Click Here 7406
Tire Fitment
-
37 x 12.50 tire on stock 20” wheel
Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie-back kit plus medium trimming.35 on 10” wide wheel +18mm offset
Use tie-back kit plus light trimming.35 on 10” wide wheel, 0mm offset
Use tie-back kit plus medium trimming.37 x 12.50, 9” wide wheel +18mm offset
Use tie-back kit plus light trimming.37 x 12.50, 9” wide wheel, 0mm offset
Use tie-back kit plus medium trimming.37 x 12.50 on 10” wide wheel, +18mm offset
Use tie-back kit plus medium trimming.37 x 12.50 on 10” wide wheel, 0mm offset
Use tie-back kit plus heavy trimming
Additional Fitment
| Year | Make | Model | Sub-Model |
| 2020-2025 | GMC | Sierra 3500 HD | SLT |
| 2020-2025 | GMC | Sierra 3500 HD | SLE |
| 2023-2025 | GMC | Sierra 3500 HD | Pro |
| 2024-2025 | GMC | Sierra 3500 HD | Denali Ultimate |
| 2020-2025 | GMC | Sierra 3500 HD | Denali |
| 2020-2025 | GMC | Sierra 3500 HD | AT4 |
| 2020-2025 | GMC | Sierra 2500 HD | SLT |
| 2020-2025 | GMC | Sierra 2500 HD | SLE |
| 2023-2025 | GMC | Sierra 2500 HD | Pro |
| 2024-2025 | GMC | Sierra 2500 HD | Denali Ultimate |
| 2020-2025 | GMC | Sierra 2500 HD | Denali |
| 2020-2025 | GMC | Sierra 2500 HD | AT4 |
| 2020-2025 | Chevrolet | Silverado 3500 HD | WT |
| 2020-2025 | Chevrolet | Silverado 3500 HD | LTZ |
| 2020-2025 | Chevrolet | Silverado 3500 HD | LT |
| 2020-2025 | Chevrolet | Silverado 3500 HD | High Country |
| 2020-2025 | Chevrolet | Silverado 3500 HD | Base |
| 2020-2025 | Chevrolet | Silverado 2500 HD | WT |
| 2020-2025 | Chevrolet | Silverado 2500 HD | LTZ |
| 2020-2025 | Chevrolet | Silverado 2500 HD | LT |
| 2020-2025 | Chevrolet | Silverado 2500 HD | High Country |
| 2020-2025 | Chevrolet | Silverado 2500 HD | Custom |
| 2020-2022 | GMC | Sierra 3500 HD | Base |
| 2020-2022 | GMC | Sierra 2500 HD | Base |
| 2020 | GMC | Sierra 3500 HD | |
| 2020 | GMC | Sierra 2500 HD |
Warranty
Parts Only
- Limited Lifetime Warranty – Cognito Branded Products
