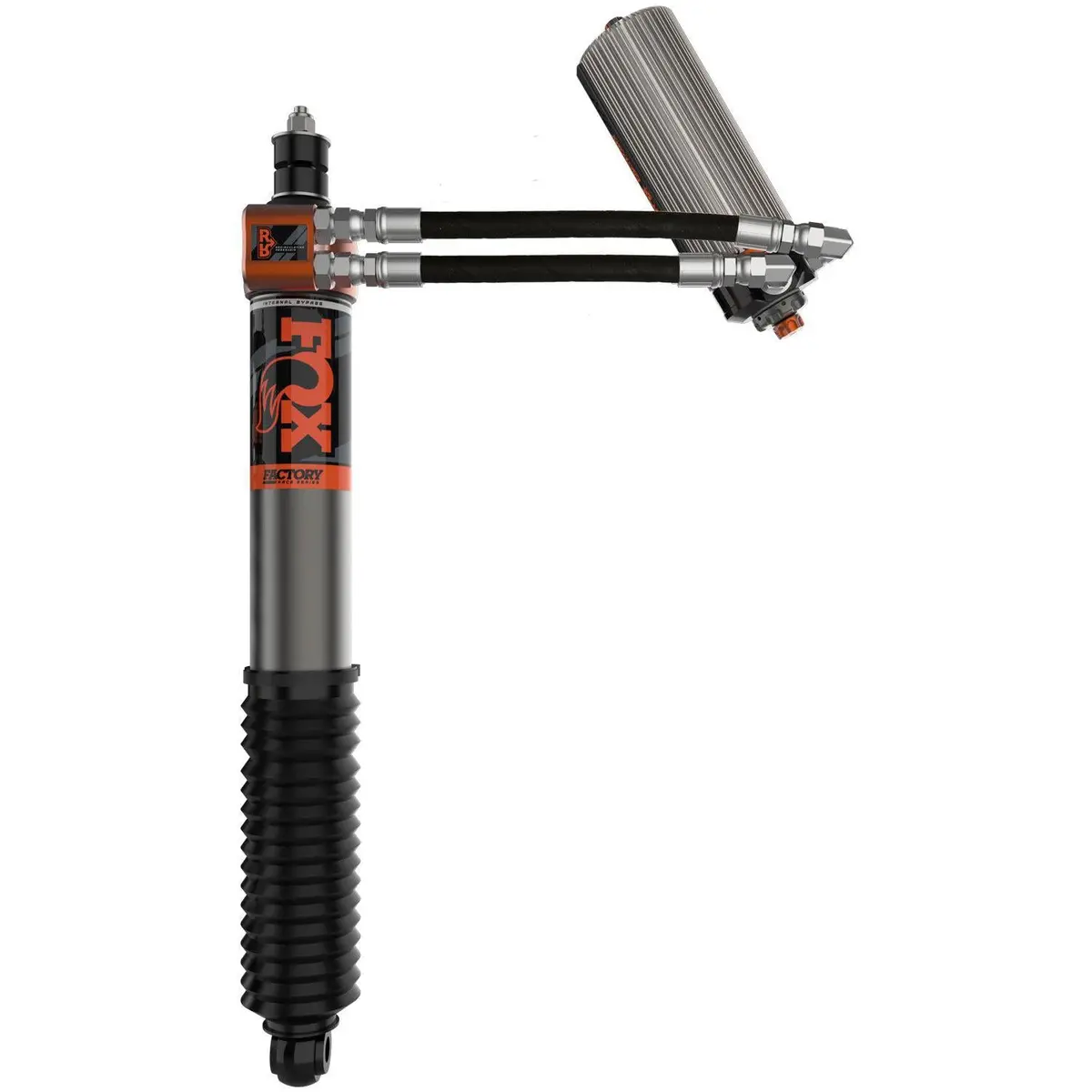

FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.
Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing.
Part Number: 883-26-142
Features
- 3″ impact-extruded and CNC machined 6061-T6 Type III anodized aluminum Body
- Patented, internal bypass design
- Application-specific springs
- 7/8″ hard chrome-plated steel Shafts
- Vehicle-specific tuning maximizes performance
- Redundant sealing pack system: main seal, wiper seal, scraper seal
- Finned Reservoir with DSC adjuster
Specs:
- Travel: 9.97
- Extended Length: 26.25
- Compressed Length: 16.28
- Top Mount: Stem
- Bottom Mount: Eyelet
- Rear Lift: 1-2″
Notes
- Requires extended brake lines
