2023–2024 Ford Powerstroke 3.5-Inch Leveling Kit

Description

Description

Fits

Note: NOT compatible with the ONBOARD SCALES/SMART HITCH

This system will not achieve a proper rear high stance without the installation of the add-a-pack; it will sit slightly rear low with no rear option added!

For those looking for more than just a generic spacer leveling kit, this Carli Signature Series Leveling Lift Kit will lift the front end of your Powerstroke 3.5″ higher and provide you with increased clearance/ wheel travel without compromising payload capacity and maintaining a smooth, responsive ride over any terrain.

Part Number: CS-FLVL-SIG-23

Features

• Carli Signature Series Shocks are Carli-tuned and corrosion-resistant to provide a durable and comfortable ride

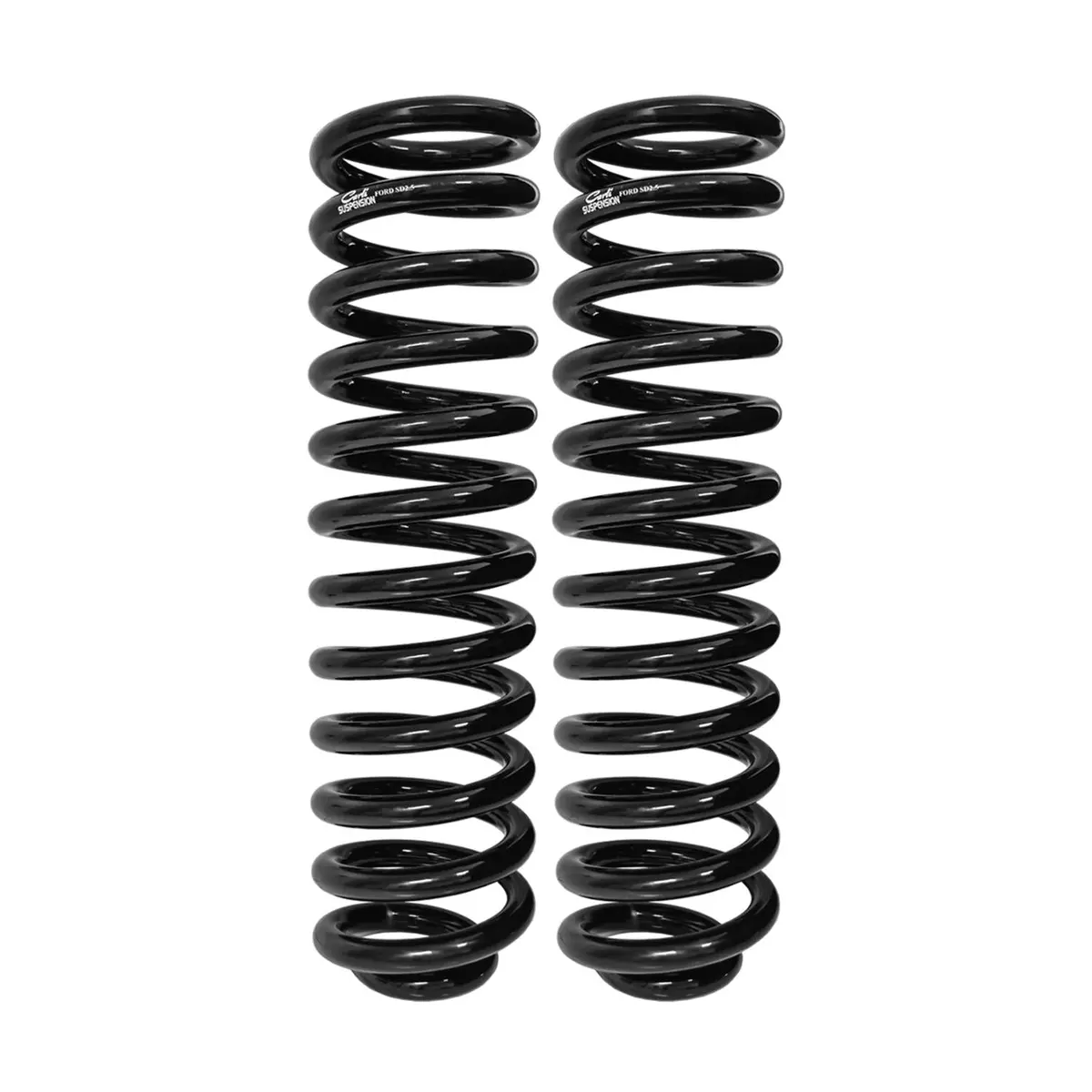

• Front and rear shock packages, radius arm drops, linear rate coil springs, brake line kit, bump drops, and caster correction shims
• Increases wheel travel to 9″ front and 13″ rear

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17
  • Radius Arms: CS-FARA-LVL-23
  • Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Steering Stabilizer – High mount: CS-FHMSS-17
  • Steering Stabilizer – Low mount: CS-FLMSS-23
  • Trophy Hitch: CS-FHITCH-1723

Notes

• NOT compatible with the ONBOARD SCALES/SMART HITCH. Modifying the ride height or spring rate will interfere with this system’s performance.
• This system will not achieve a proper rear high stance without the installation of the add-a-pack; it will sit slightly rear low with no rear option added! (Except Tremor models)
• 3.5″ Lift – 2023-2024 F250/350 4×4 Diesel

• 1.5″ Lift – 2023-2024 F250/350 TREMOR
