4-Inch Radius Arm Lift Kit for 2011–2016 Powerstroke Trucks (BDS 1596FPE)

Description

Description

Fits

Year	Make	Model
2011-2016	Ford F-Series	6.7L Powerstroke

Click here to Customize this Kit

Built to outperform; this 4″ radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35″ tires.

Part Number: BDS1596FPE

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• HD tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Tire Fitment:

• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Additional Info

Rear Lift Option

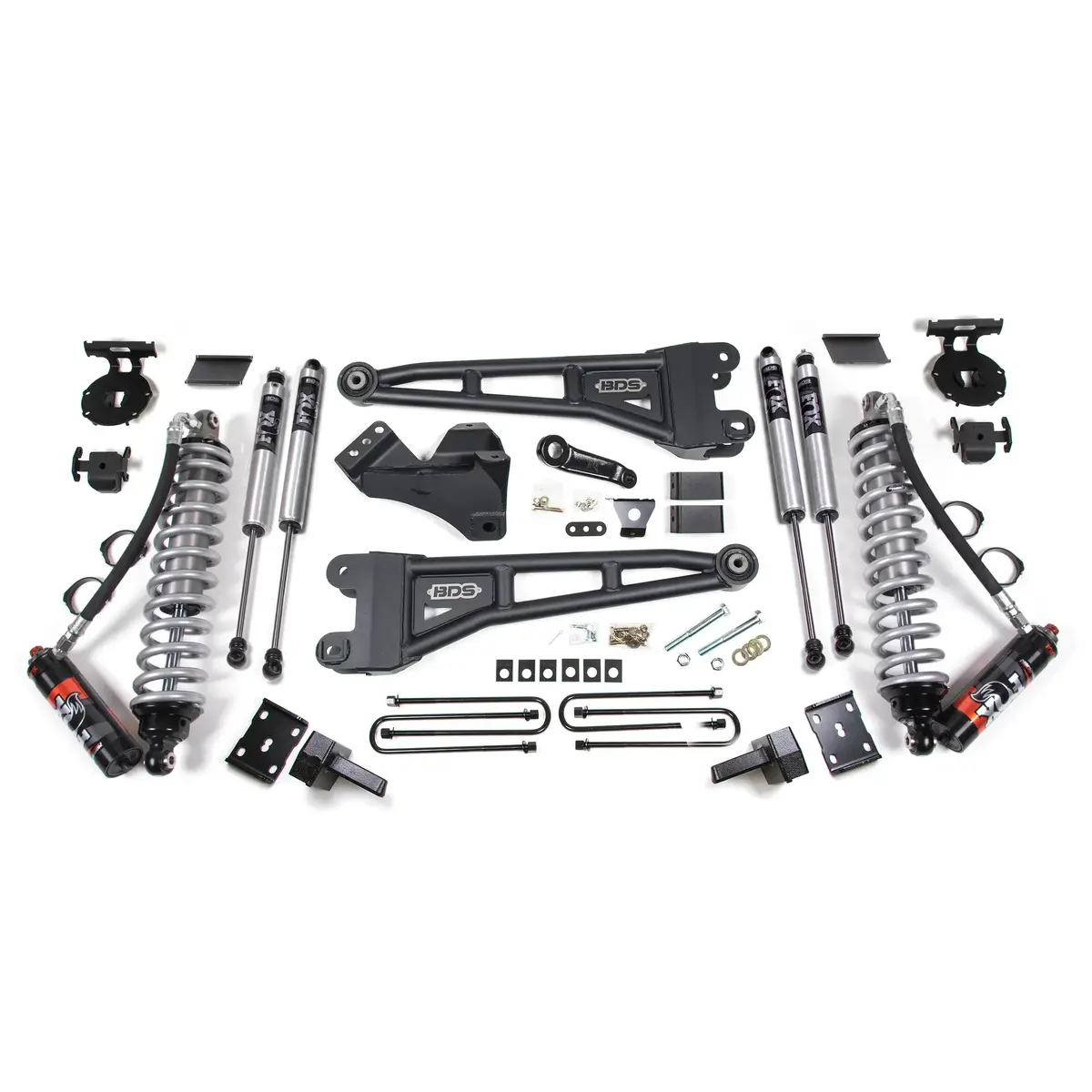

4 Inch Block Kit

• Included in the base system.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

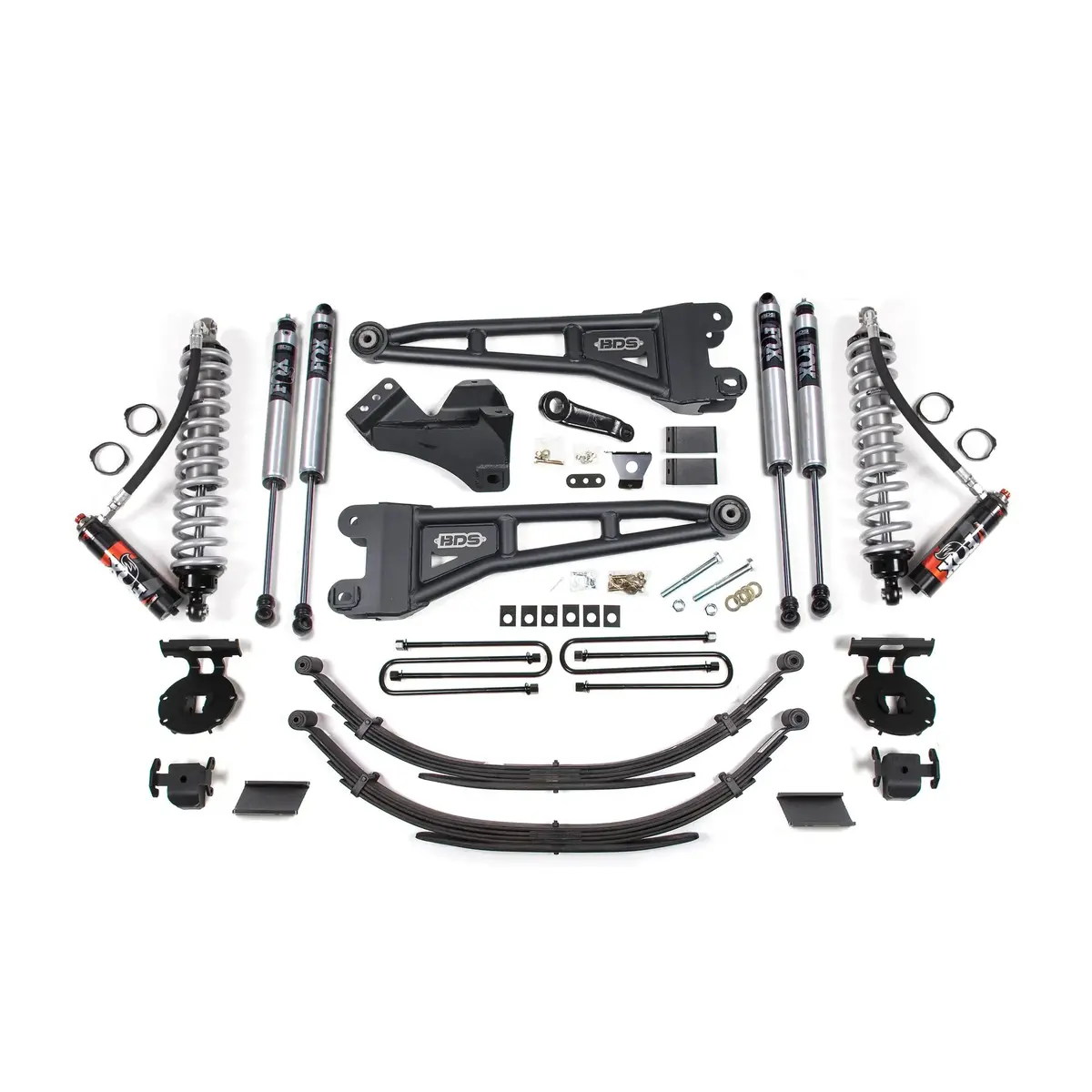

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Notes

• Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8″ block for the level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance – Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-A-Leafs do not apply to rear leaf spring-equipped systems)
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required
• Although extremely rare, front and/or rear driveline vibration may occur
• If equipped with a rear sway bar, #123009 is required
• U-bolts will not work on dually
