Fits
| Year | Make | Model | Engine |
| 2023-2026 | Ford | F-250/F-350 4WD | 6.7L Powerstroke |
Elevate the drive of your ’23-26 Ford Super Duty diesel truck with this 5-inch radius arm lift kit from BDS Suspension. Enhance stance, performance, and capability with this all-inclusive kit, giving your truck the perfect setup and room for up to 37″ tires.

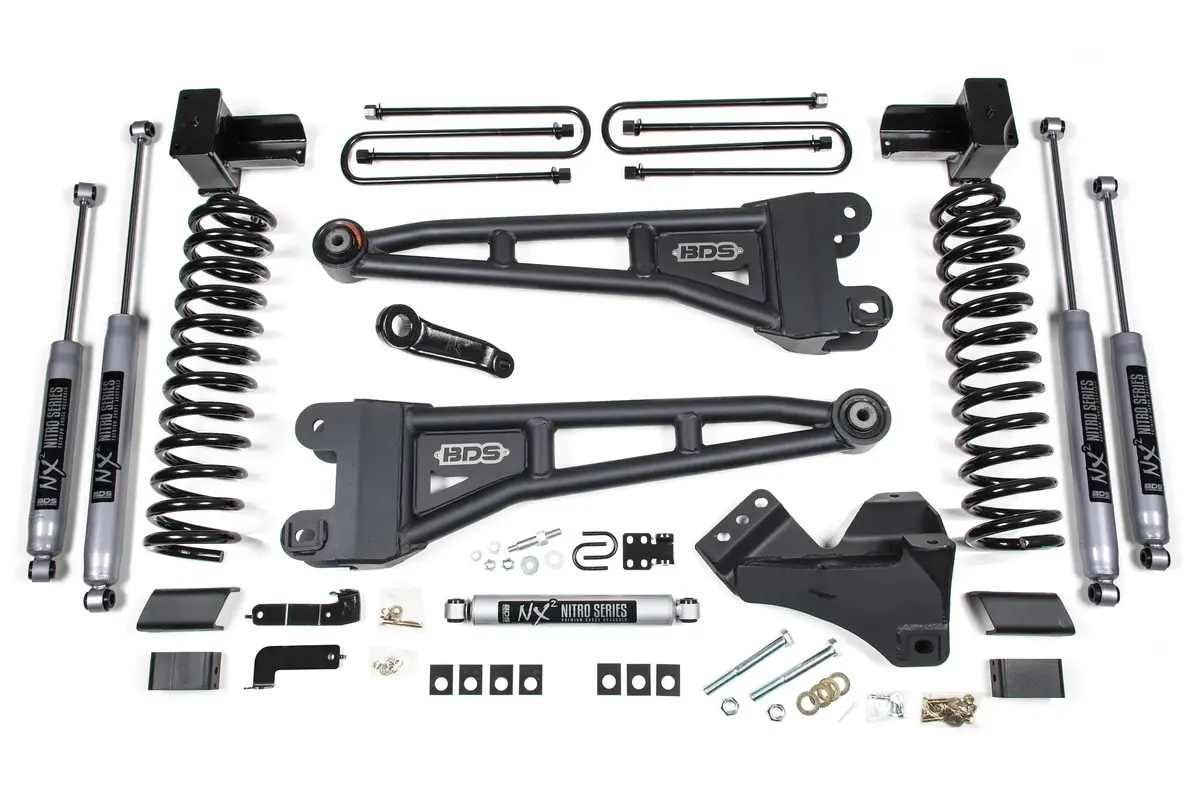

Up front the lift kit comes with diesel-focused Pro-Ride coil springs, tough replacement radius arms, a forged drop pitman arm and track bar bracket for steering, relocated sway bar, brake line holders, and precisely tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Part Number: BDS2203H
Features
- Front Lift Height : 5″
- Rear Lift Height : 3″
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear

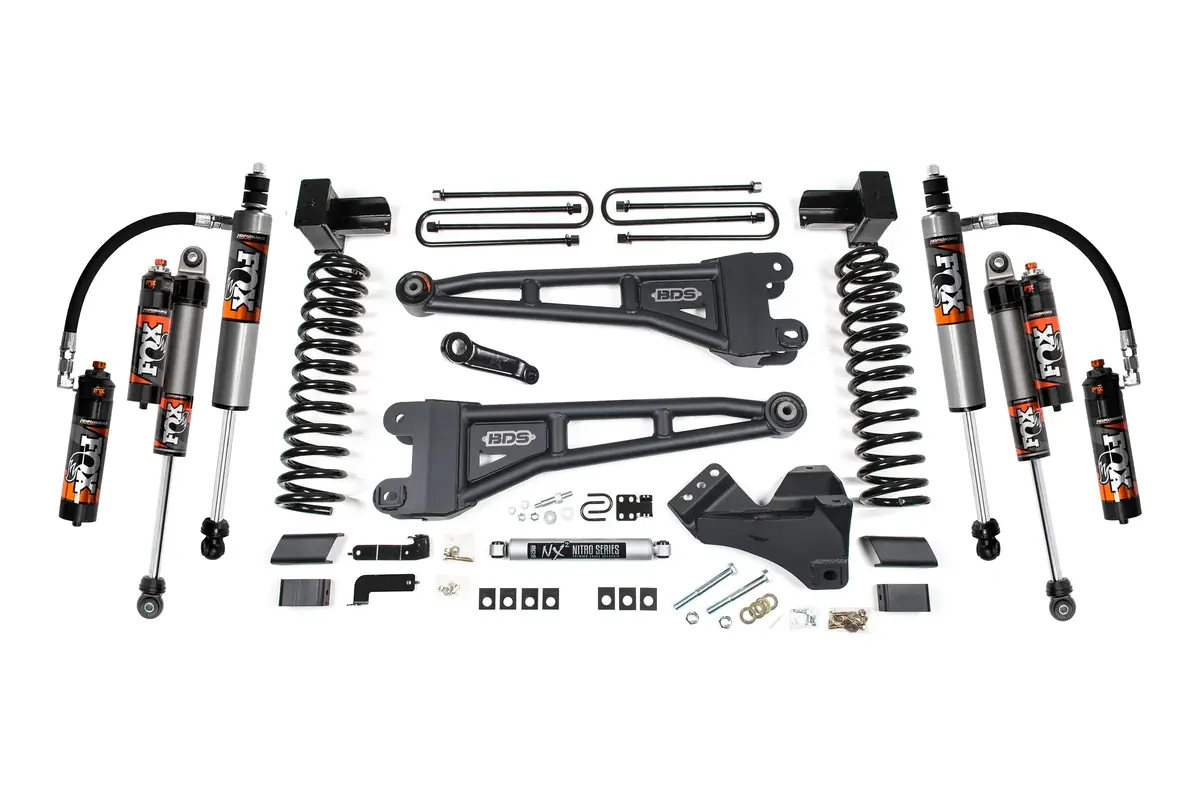

- NX2 Nitro shocks or FOX 2.0 Performance Series with vehicle-specific valving for better control
Tires & Wheels:
- (Trimming may be required)
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
Installation
- Guide 1 Click Here
- Guide 2 Click Here
- Required: Torque Wrench, Die Grinder, Pitman Arm Puller
Notes
- Vehicles with radius arm mounted ride height sensors will require BDS123303.
- Ford recommends the replacement of the pitman arm nut after each time it has been removed.
- Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
- If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
- Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
- Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
- Minor trimming may be necessary for clearance of 37×12.50 tires on certain wheel setups.
- Installation requires a torque wrench capable of 406 ft-lbs.
- Trucks without top mounted overload springs will require (4) UBT4028.
- Vehicles with leaf spring ride height sensors must select the rear block option.
Additional Information
Rear Lift Option
Block Kit
- Included in the base system.
- Made of fabricated steel for high strength.
- Designed to provide correct pinion angles.

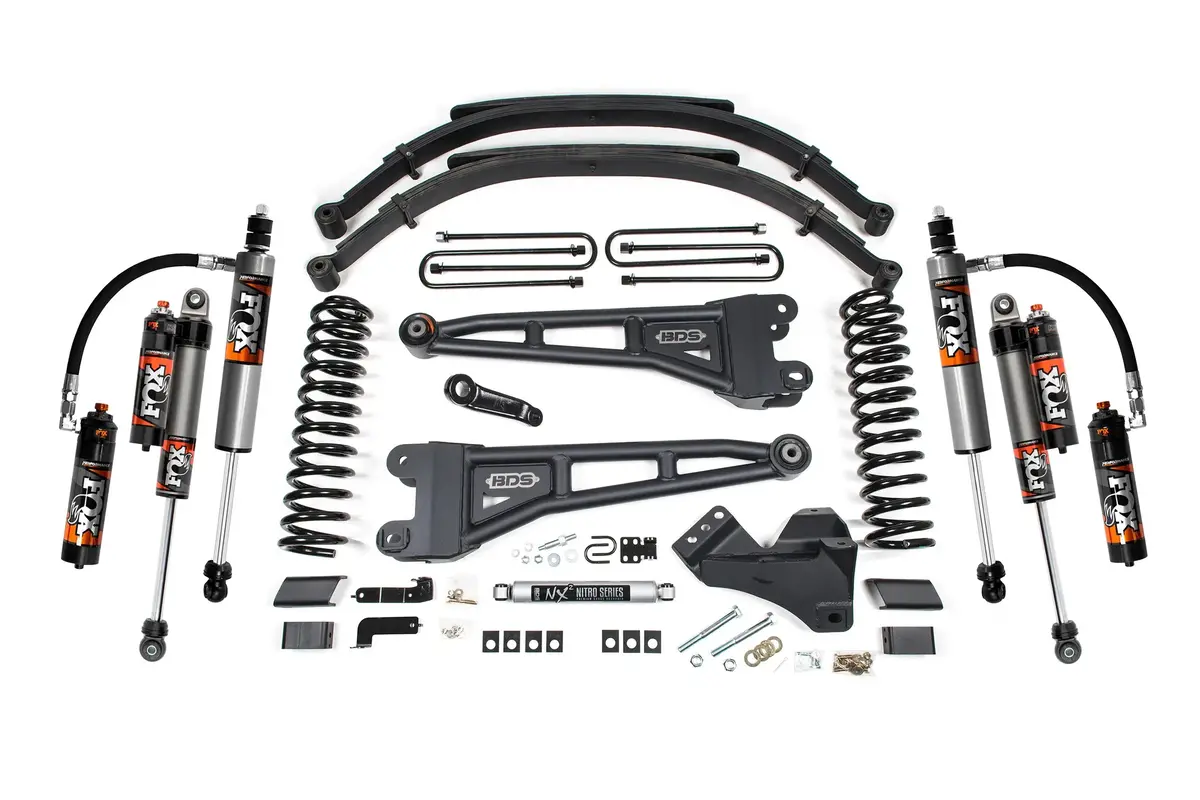

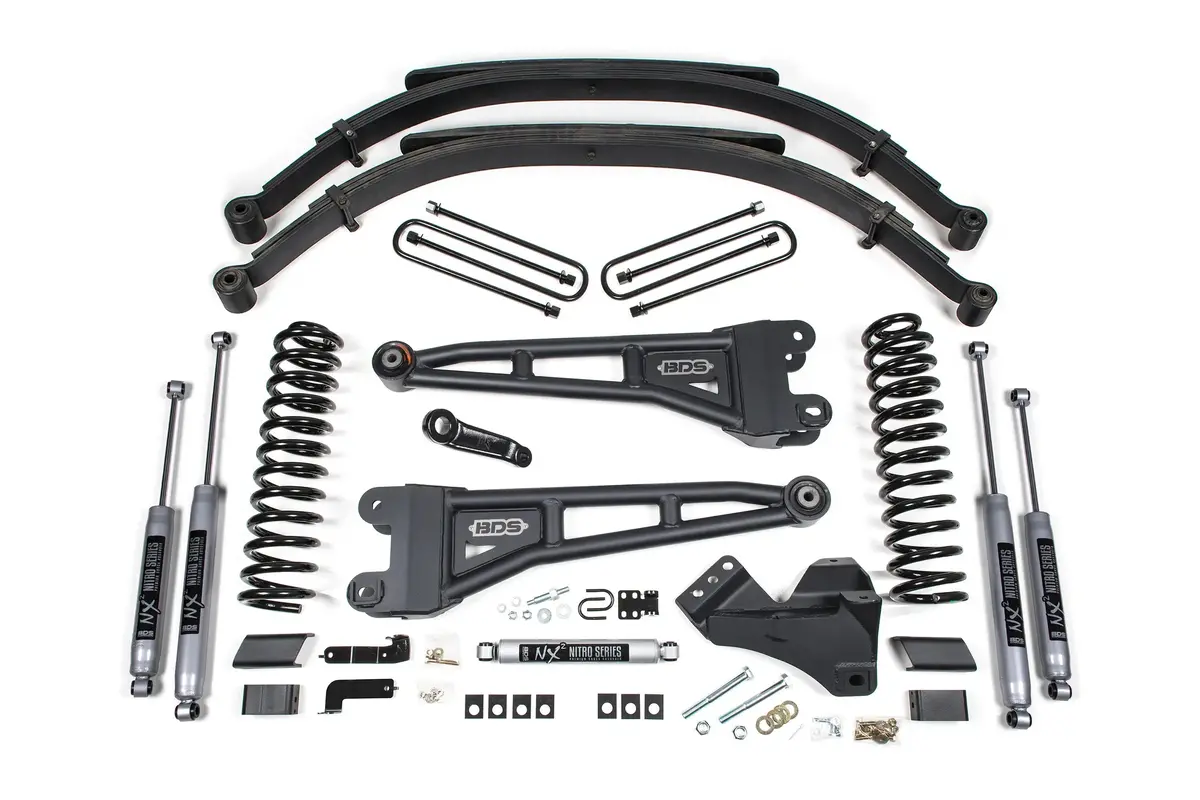

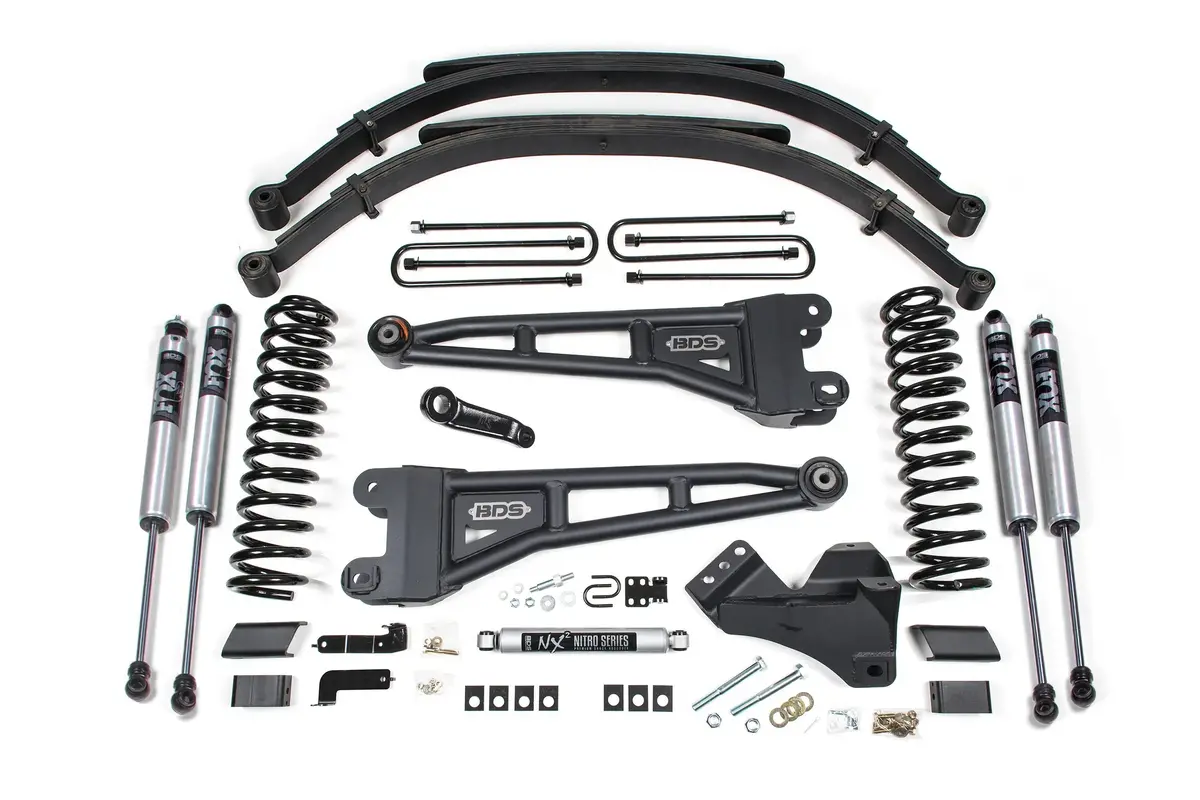

Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
