Fits
| Year | Make | Model | Engine |
| 1999-2016 | Ford | F-250/F-350 Superduty | 7.3L, 6.0L, 6.4L, 6.7L Powerstroke |
Note: Will NOT fit vehicles with 5th wheel hitches. Will fit both Gas/Diesel applications.
The 1999-2016 Powerstroke Alpha HD Pro S Air Suspension Kit reduces sag, sway, and bottoming out. It includes air bags with stainless steel hardware, jounce bumpers, and durable corrosion-resistant end caps reinforced with 20 support wires. A built-in polyurethane bumper prevents damage from bottoming out, allowing safe driving even without air when not towing. Available with or without an internal bag bump stop for added versatility.
Part Number: HP10070-J-S
Features
- 5,000 lbs of load leveling capacity
- 3-hour install time
- Lifetime warranty
- Can be run at 0 psi

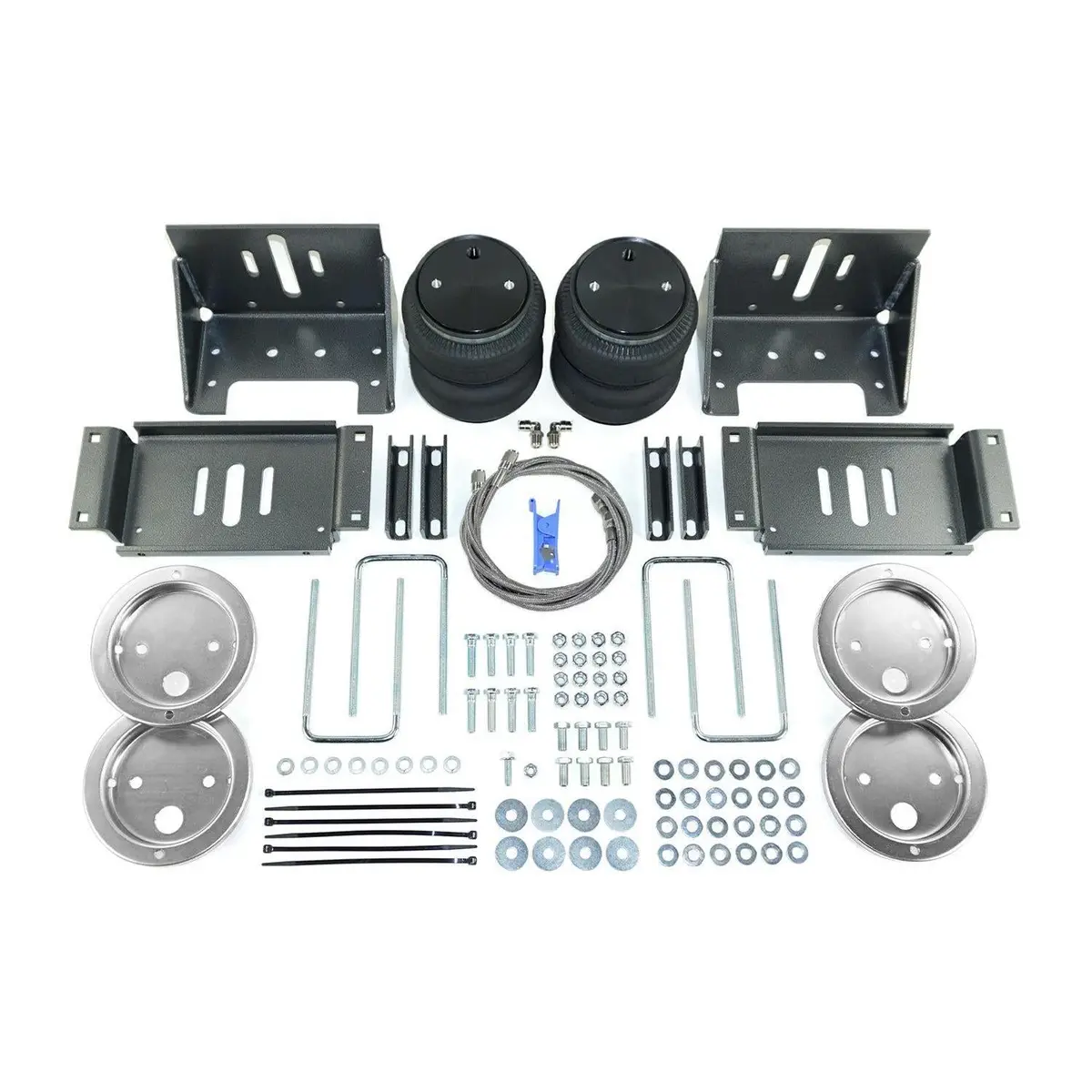

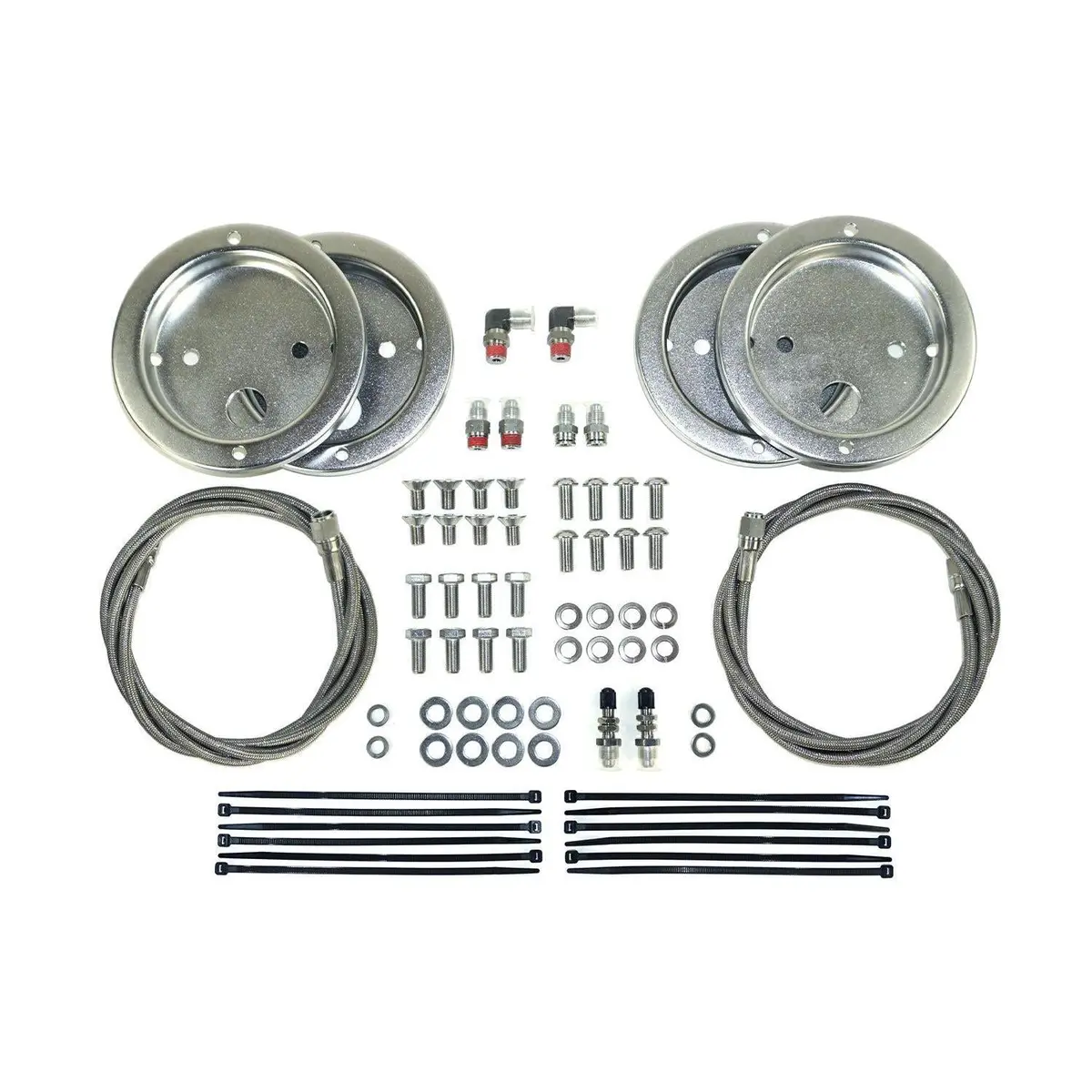

Includes:
- 6ft Braided Stainless Steel Air Lines
- Stainless Steel Air Spring Fittings
- Stainless Steel Air Spring Mounting Hardware
- Stainless Steel Schrader Valves
- Stainless Steel Roll Plates
- Two Air Springs
- Everything required for install
Installation
- 3-Hours
- Stainless Steel Hardware
- Manual Click Here
- Manual Addendum
- Application Guide
Notes
- Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.
Additional Info
Why Pacbrake added a bump stop to their bags?
Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an “insurance policy” against bottoming out.
An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.
Are bump stops necessary?
No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off roading, air bags without bump stops are recommended. Consider the HP10070 ALPHA HD air bag.
Warranty
Parts Only
- Click Here
