Fits
| Year | Make | Model | Engine |
| 2001-2010 | Chevrolet/GMC | Silverado/Sierra 3500HD 2WD/4WD | LB7, LLY LBZ, LMM w/ 6.6L Duramax |
Note: For all trucks, including those with 5th wheel hitches. / Will NOT fit Cab & Chassis vehicles. / Will fit both Gas/Diesel applications.
The ALPHA HD PRO S Air Suspension Kit from Pacbrake stops sag, sway, and bottoming out. It includes air bags with stainless steel hardware, corrosion-resistant end caps, and 20 support wires for durability. The built-in polyurethane bumper protects against damage and allows use without air when not towing. Available with or without in-bag bump stops for added safety.
Part Number: HP10005-J-S
Features
- 5,000 lbs of load leveling capacity
- 2-hour install time
- Lifetime warranty
- Can be run at 0 psi

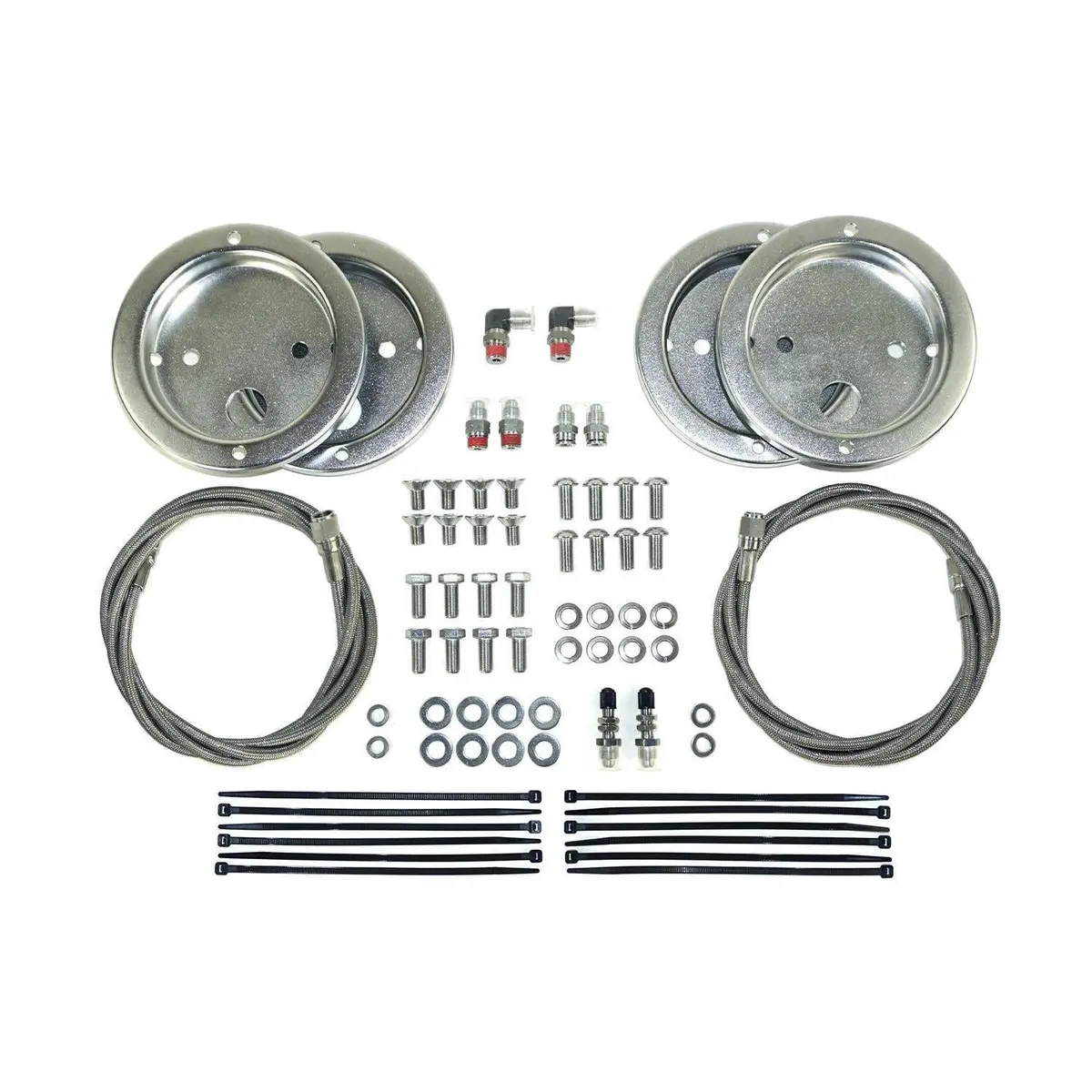

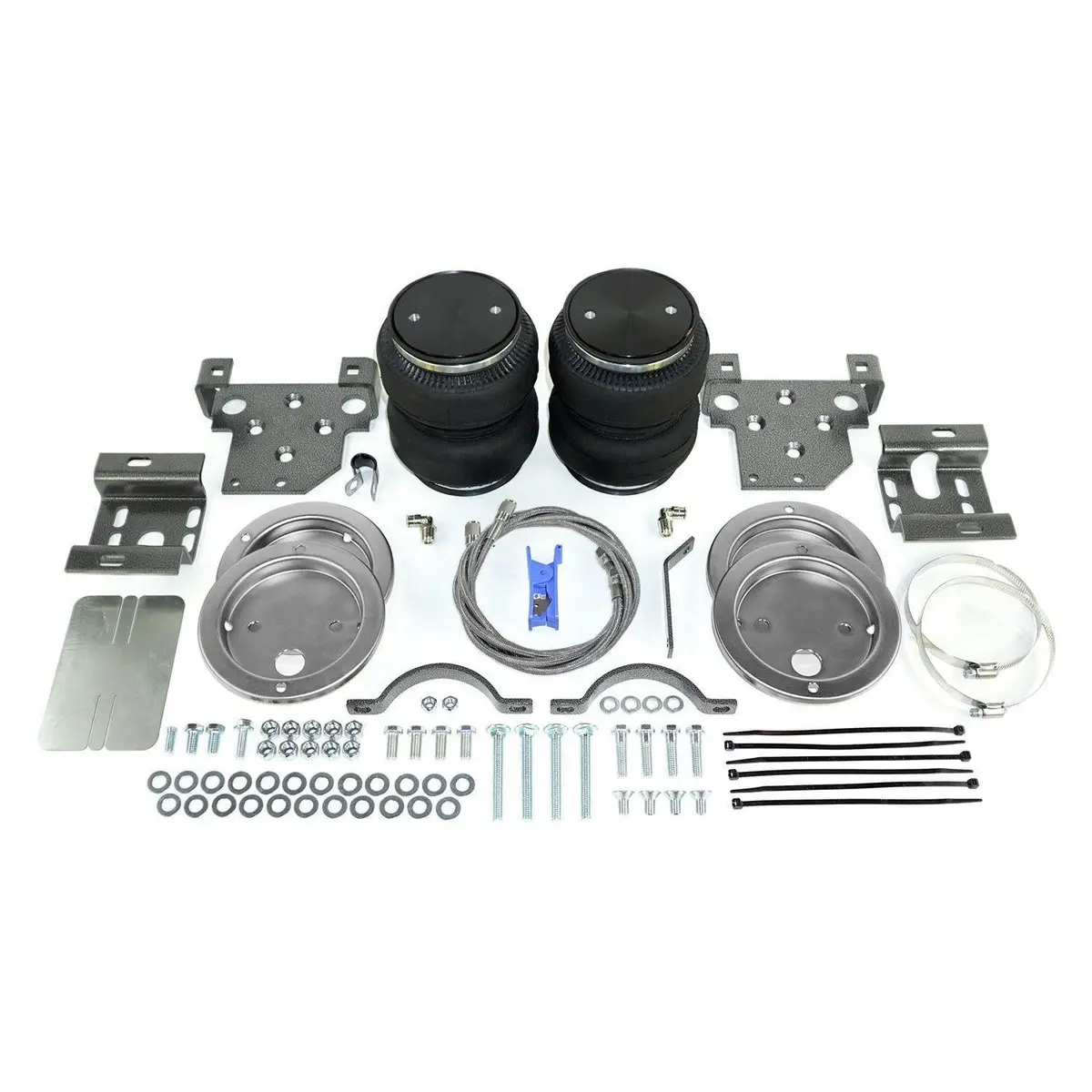

Includes:
- 6ft Braided Stainless Steel Air Lines
- Stainless Steel Air Spring Fittings
- Stainless Steel Air Spring Mounting Hardware
- Stainless Steel Schrader Valves
- Stainless Steel Roll Plates
- Two Air Springs
- Everything required for install
Installation
- 2-Hours
- Stainless Steel Hardware
- Click Here
- Application Guide
Notes
- Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.
Additional Info
Why Pacbrake added a bump stop to their bags?
Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an “insurance policy” against bottoming out.
An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.
Are bump stops necessary?
No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off-roading, air bags without bump stops are recommended. Consider the HP10005 ALPHA HD air bag.
Warranty
Parts Only
- Click Here
