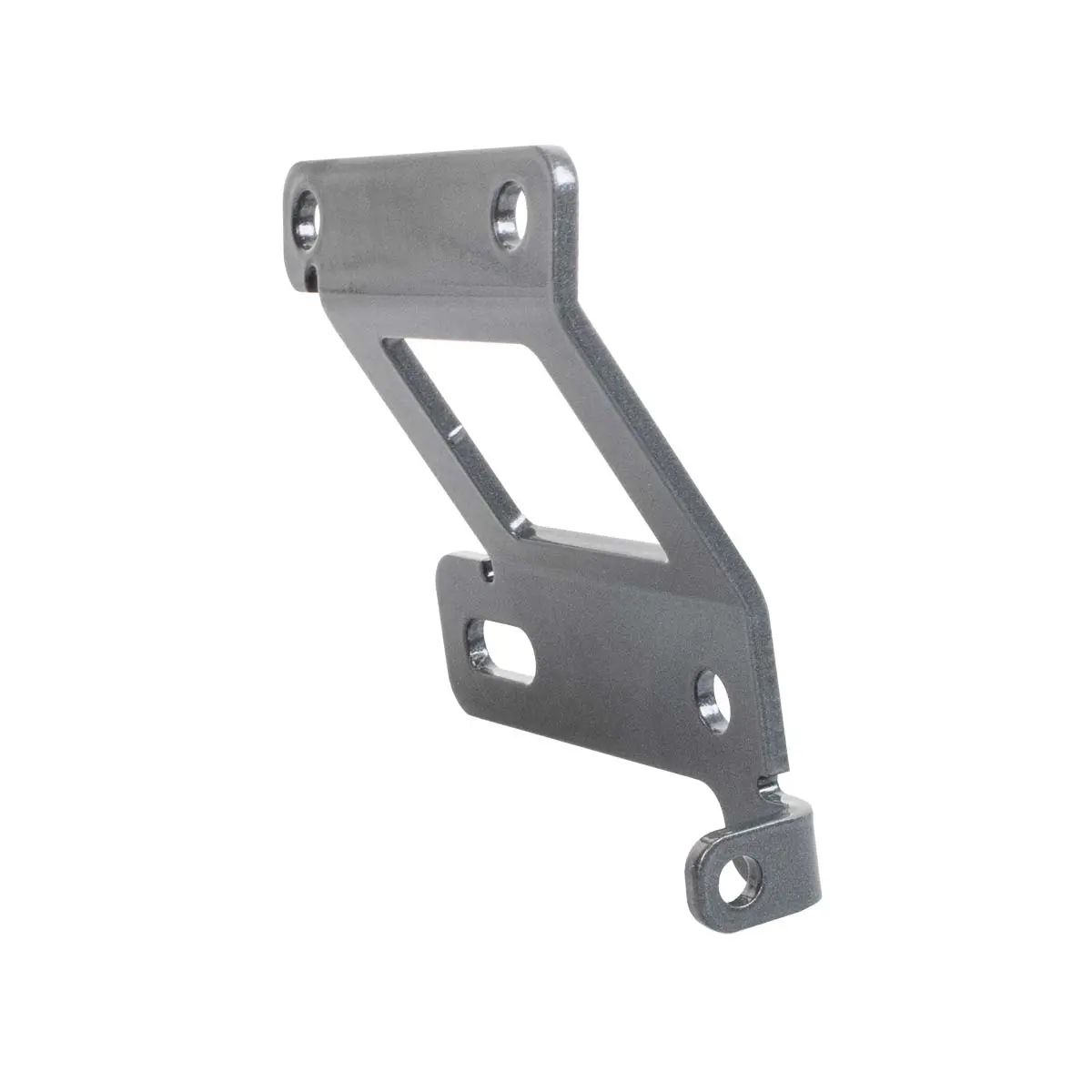

Brake Line Relocation Brackets for 2011–2026 Ford Powerstroke 4×4 Vehicles

Description

Description

Fits

Year	Make	Model
2011-2026	Ford	F-250/F-350 w/ 6.7L Powerstroke

Note: Compatible with 4×4 front axle models ONLY!

Maintain your brake system’s integrity while gaining the clearance needed for a 2.5-inch level on your 6.7L Powerstroke. These laser-cut brackets relocate your factory lines to prevent overextension during full-suspension droop, ensuring your F-250 or F-350 stays safe on the trails without the headache of bleeding the brakes. Zinc-plated for maximum corrosion resistance, they are a “no-mess” solution that retains your factory ABS clips and vacuum lines for a clean, professional install.

Part Number: 8682-01

Features

• Compatible with the 2.5-inch Leveling Kit
• Raises factory brake line bracket 2.5.”
• Allows Increased Suspension Droop
• Retains Factory Brake Lines
• Laser Cut and CNC Bent
• Zinc Plated Corrosion Protection
• Provisions for Factory Vacuum Lines
• No Brake Bleeding Required
• No modifications required to install

Includes

• (2) Brake Line Relocation Brackets
• Installation Hardware Kit

Notes

• Optimized for 2.5-inch leveling kits; not for use above 2.5” of lift.
• The maximum shock extended length cannot exceed 24”.

Installation

Click Here For Instructions
