Bypass Kit for 2003–2005 Cummins 5.9L Diesel Engines

Description

Description

Fits

The rear cylinders on the 5.9/6.7L Cummins suffer from a lack of coolant flow, and therefore, experience the highest coolant temperatures. This can cause excessive pressure to build in the cooling system, especially the rear of the block and blow out freeze plugs externally, or the smaller diameter plugs under the valve cover, leading to a failure. The Fleece Performance coolant bypass kit adds a secondary thermostat, that unlike other brands, works based on temperature instead of excessive pressure. This solves the problem before the pressure becomes an issue by ensuring consistent temperatures across all six cylinders. You will receive an increase in coolant flow and a decrease in coolant temperatures. The Fleece Coolant Bypass is one of the most important additions you make to improve the reliability and longevity of the Cummins platform.

Features

• Lowers coolant temperature at the rear cylinders
• Ensures consistent temperatures across all cylinders
• Prevents damaging coolant pressure build-up

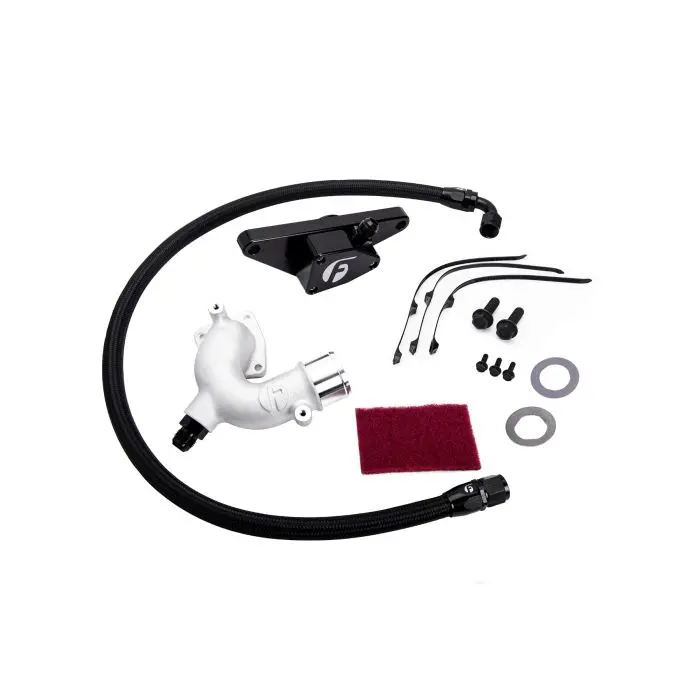

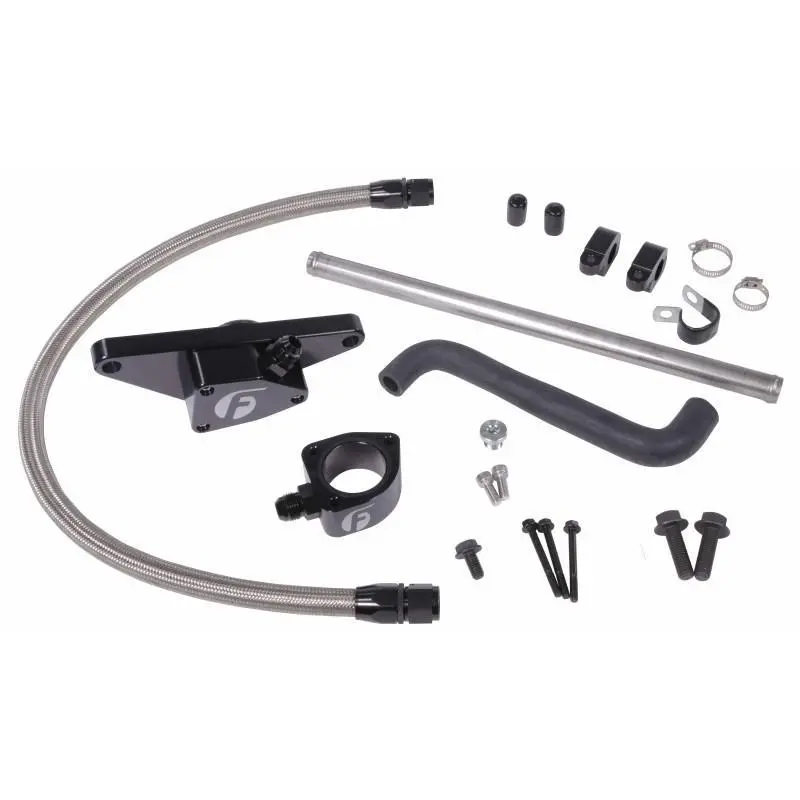

• Complete kit comes with a braided hose and AN O-ring fittings to ensure a leak-free installation. Kits for MY 2003+ include billet hose brackets.

Notes

• The 2003-2007 5.9L automatic transmission version will eliminate the factory transmission fluid heat, exchanger. The heat exchanger is designed for use in cold climates to warm the transmission fluid with the engine coolant. It is not necessary for use in warm climates or high horsepower applications, nor does it detrimentally affect the performance of the truck when removed.

Additional Info

• CARB EO# D-834-9
