Description
Description
Fits
| Year | Make | Model |
| 2020-2024 | Jeep | Gladiator, JT |

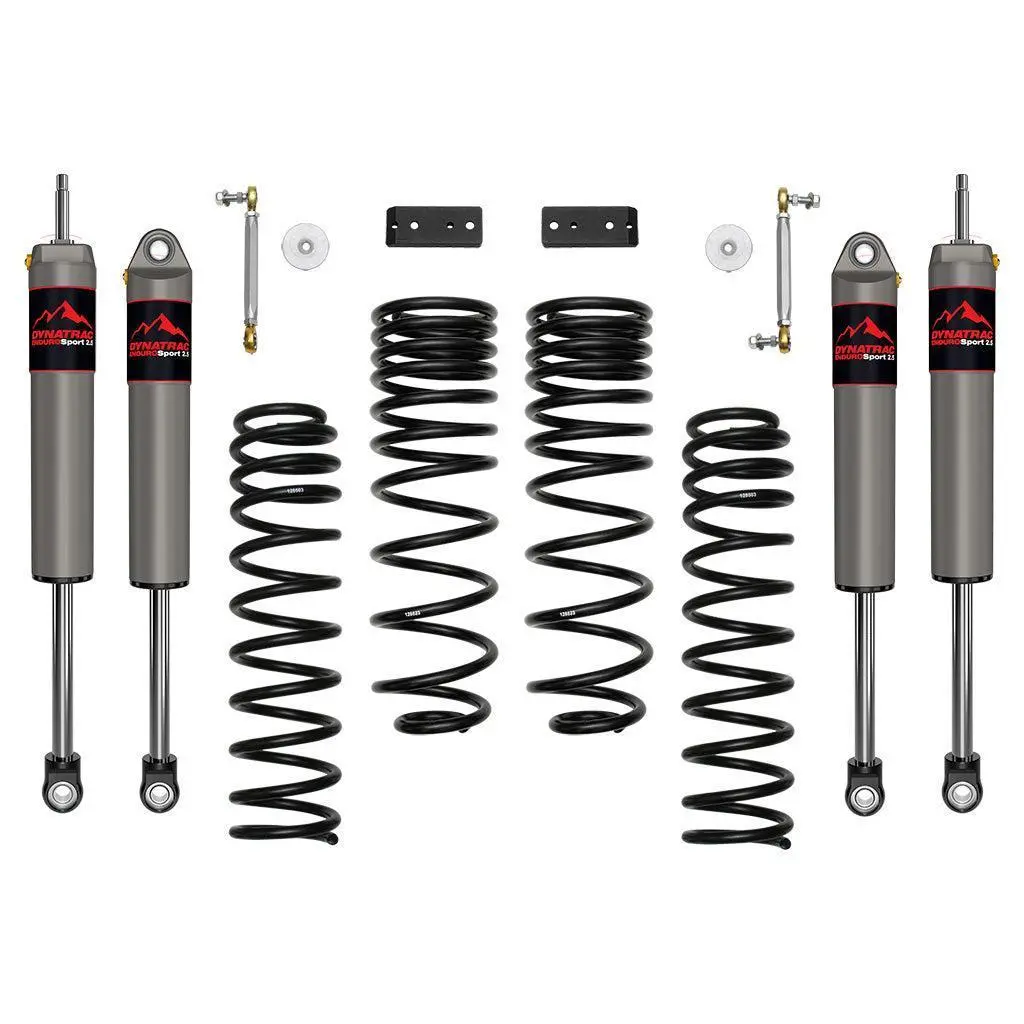

The Dynatrac 3″ Suspension Lift System for 2020-24 Jeep Gladiator JT boosts your ride with upgraded shocks and coil springs, adding 3″ front and 2″ rear wheel travel. It fits 35″ tires easily, and if you’re dreaming bigger with 37″ tires, there’s an optional spacer kit. All the hardware you need is included.
Part Number: JT30-1X5310-L6
Features
- 3″ front lift height and 1.5″ of rear lift over stock
- Fits 35″ tires (37″ with optional extended bump stop spacer kit)
- 3″ front, 2″ rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Dual-rate front coil springs and triple-rate rear coils with lifetime guarantee against sagging/breakage
- 2.5 EnduroSport shocks with Jeep JL-specific valving offer greater shock damping and performance
- Adjustable front sway bar links and rear sway bar brackets eliminate sway bar bind
- 100% bolt-on
- Easy install
- Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Bushings Included: No
- Coil Spring End 1 Type: Closed
- Coil Spring End 2 Type: Closed
- Coils Quantity Front: 2
- Coils Quantity Rear: 2
- Grade Type: Performance
- Maximum Lift Front: 3
- Maximum Lift Rear: 1.5
- Mounting Hardware Included: Yes
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
Notes
- Dynatrac’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- Springs are NOT rated for use with models equipped with EcoDiesel engines.
- Jeep Gladiator Mojave also requires heim spacer kit, part # DT9611070
Tire Fitment
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17×8.5″ w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071)
