| SKU | Finish | Size | Diameter | Width | Lug Count | Bolt Pattern | Offset | Backspacing | Centerbore | Weight |
| D867208272 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8×165.1mm (8×6.5) | 104 | 8.72 | 117 | 44.3 |
| D86720827225 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8×165.1mm (8×6.5) | -201 | -3.29 | 117 | 48.95 |
| D86720827235 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8×165.1mm (8×6.5) | -227 | -4.31 | 117 | 53.8 |
| D86720827245 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8×165.1mm (8×6.5) | -246 | -5.06 | 117 | 52.58 |
| D86720828D | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8×165.1mm (8×6.5) | 104 | 8.72 | 121.5 | 44.1 |
| D86720828D35 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8×165.1mm (8×6.5) | -240 | -4.82 | 121.5 | 51.48 |
| D86720828D45 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8×165.1mm (8×6.5) | -265 | -5.81 | 121.5 | 55.3 |
| D867208292 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8x200mm | 104 | 8.72 | 142 | 43.2 |
| D86720829235 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8x200mm | -201 | -3.29 | 142 | 47.63 |
| D86720829245 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8x200mm | -227 | -4.31 | 142 | 51.82 |
| D867208293 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8x210mm | 104 | 8.72 | 154.3 | 42.8 |
| D86720829325 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8x210mm | -201 | -3.29 | 154.3 | 46.97 |
| D86720829335 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8x210mm | -227 | -4.31 | 154.3 | 50.49 |
| D86720829345 | Blackout | 20×8.25 | 20 | 8.25 | 8 | 8x210mm | -246 | -5.06 | 154.3 | 49.94 |
| D867228272 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8×165.1mm (8×6.5) | 104 | 8.72 | 117 | 50.5 |
| D86722827225 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8×165.1mm (8×6.5) | -201 | -3.29 | 117 | 54.23 |
| D86722827235 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8×165.1mm (8×6.5) | -227 | -4.31 | 117 | 59.3 |
| D86722827245 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8×165.1mm (8×6.5) | -246 | -5.06 | 117 | 57.86 |
| D86722828D | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8×165.1mm (8×6.5) | 104 | 8.72 | 121.5 | 50.3 |
| D86722828D35 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8×165.1mm (8×6.5) | -240 | -4.82 | 121.5 | 56.76 |
| D86722828D45 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8×165.1mm (8×6.5) | -265 | -5.81 | 121.5 | 60.6 |
| D867228292 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8x200mm | 104 | 8.72 | 142 | 49.4 |
| D86722829235 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8x200mm | -201 | -3.29 | 142 | 52.91 |
| D86722829245 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8x200mm | -227 | -4.31 | 142 | 57.1 |
| D867228293 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8x210mm | 104 | 8.72 | 154.3 | 49.0 |
| D86722829325 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8x210mm | -201 | -3.29 | 154.3 | 52.02 |
| D86722829335 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8x210mm | -227 | -4.31 | 154.3 | 55.99 |
| D86722829345 | Blackout | 22×8.25 | 22 | 8.25 | 8 | 8x210mm | -246 | -5.06 | 154.3 | 55.22 |

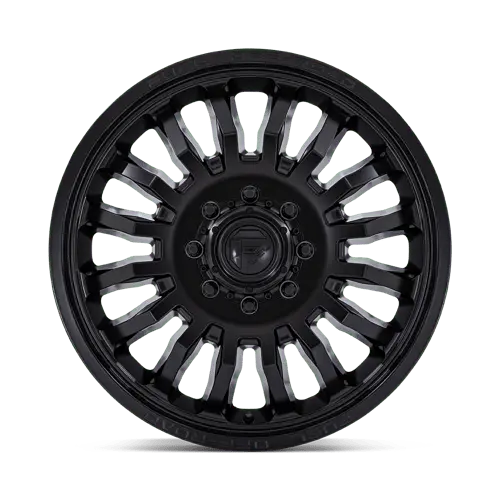

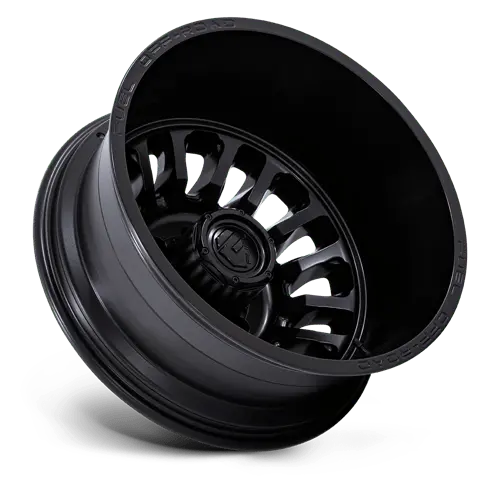

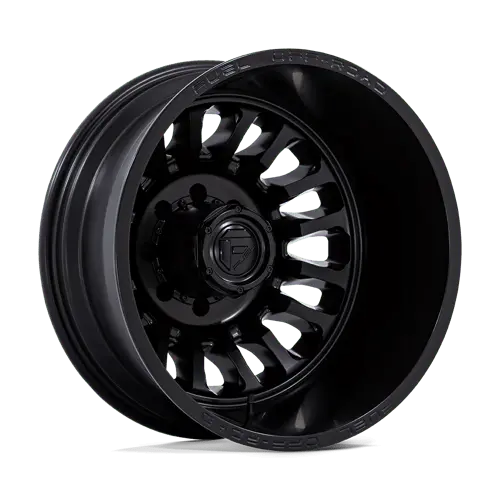

The Fuel Off-Road Arc Dually wheel brings serious style to serious payloads. Designed specifically for dual-rear-wheel trucks, the Arc Dually pairs a convex front with a deep concave rear to match the heavy-duty demands of towing and hauling. Finished in stealthy blackout, it’s built to work hard and look good doing it.
Features
- Cast aluminum construction
- Blackout finish
- Convex front and deep concave rear design
- Engineered for dual-rear-wheel trucks and heavy-duty use
