Gen-Y Boss Torsion-Flex 16K Drop Hitch – 5″ Drop, 2.5″ Shank, Dual Ball Mount Only (GH-1114)

Description

Description

Fits: Universal w/ 2.5″ Shank

Towing Capacity: 16,000LB

Tongue Weight: 1,700LB

Drop/Raise: 5″

Dual Ball: 2″ and 2 5/16″

Optimal Vertical Load: 1,000-1,700lb

What Size Drop Hitch Do I Need? | Drop Hitch Stabilizer Bars

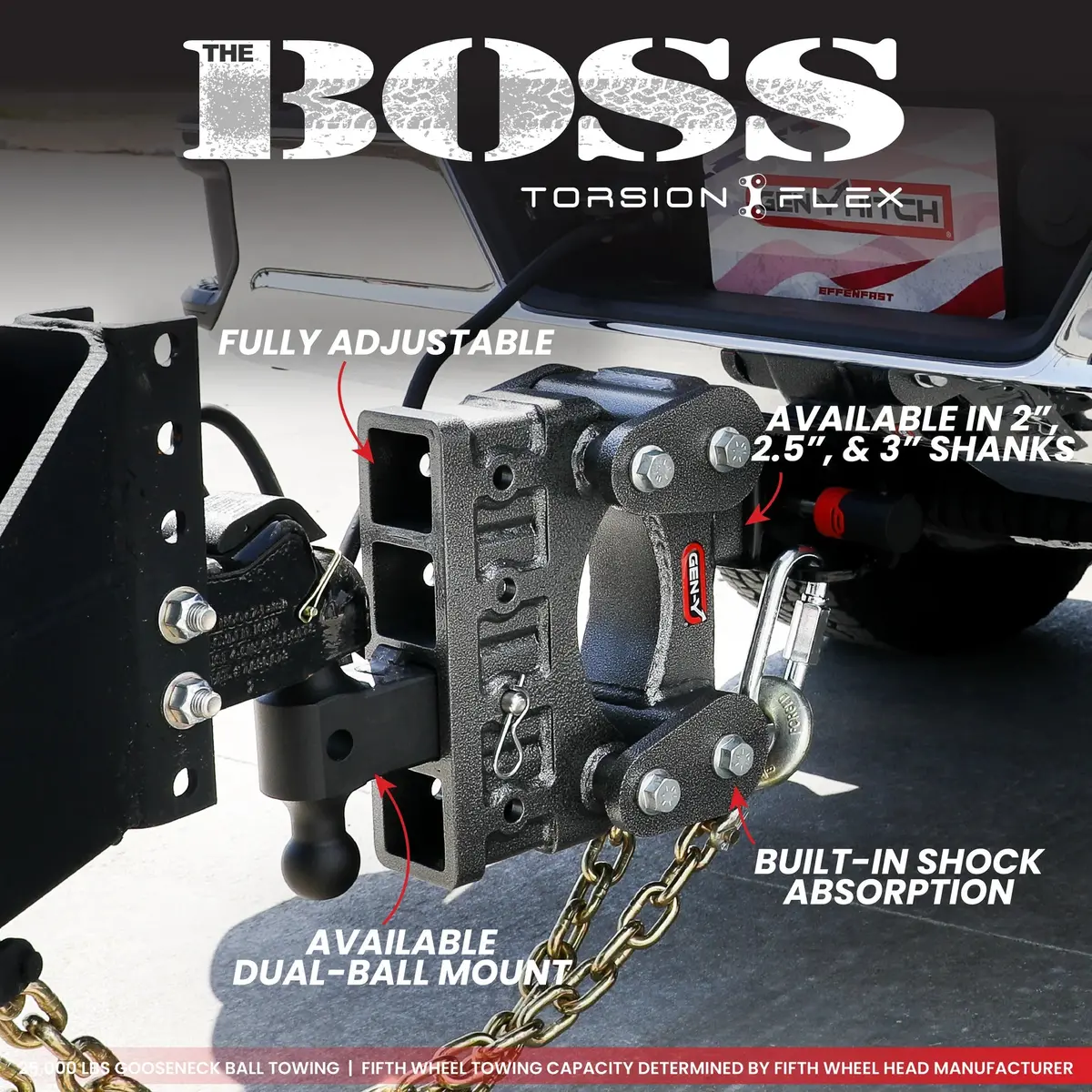

The Gen-Y BOSS Torsion-Flex hitch is engineered for heavy-duty diesel trucks, featuring a 2.5″ receiver and a robust 16,000 lb towing capacity. This model offers a 5″ drop with four adjustable positions and includes a Dual-Ball Mount, providing the perfect height for a wide range of trailer configurations. By isolating up to 90% of trailer inertia through its integrated torsion technology, this rugged steel hitch ensures a smooth, controlled ride while protecting your drivetrain and cargo from the wear of traditional towing.

Smoothest Ride Achieved at 1,000 – 1,700 lbs. Tongue Weight

Part Number: GH-1114

Features

• Dual-Ball Mount
• 4 Adjustable Positions
• 2.5” Shank (Receiver)
• 5″ Drop/Raise
• 16,000 lb Towing Capacity
• 1,700 lb Tongue Weight
• Most Versatile on the Market
• 2″ Slot Openings on Hitch
• Fabricated with Heavy-Duty Steel
• Finish: Zinc Primer and Epoxy Powder Coated
• Built-In Suspension for 90% Smoother Ride

Notes

• Simply adjust your ball mount to the desired height by pulling a pin and moving the ball mount to the desired position. This ensures your trailers are being towed level, this is particularly important when towing trailers with torsion axels.
• It is important to be within the optimal Tongue/Pin weight specified for each model number!
• Tow capacity is limited by lowest rated component. Average break-in period for hitch = 500 miles.
• If you are towing with a pintle ring trailer, use 2 5/16″ ball, NOT  2″ ball when towing.

Safety

With Rubber Torsion Hitches only 10% of the trailer inertia transfers compared to 100% using a hard connection hitch giving you the ultimate control.

Bumps, potholes, expansion joints, curves, hills, and other drivers can be a hazard, the Gen-Y Torsion Hitch helps keeps you under control when confronted with these conditions.

Control

When you run a torsion style hitch, the tow vehicle and trailer track independently giving you greater control and added safety by reducing sway and trailer bounce.

Also, their hitch will help increase braking control as all the weight is evenly distributed between your truck and your load. This will increase your positive contact when braking and maneuvering.

Warranty

Parts Only

• 5 Year Warranty on Rubber Components, Limited Lifetime Warranty on Rest of Components.
