Description
Product Details:
- Generates warm air using diesel drawn from the fuel tank to heat the cab
- Powerful 2.2kW/7000BTU forced air furnace for a reliably warm cab without the engine running

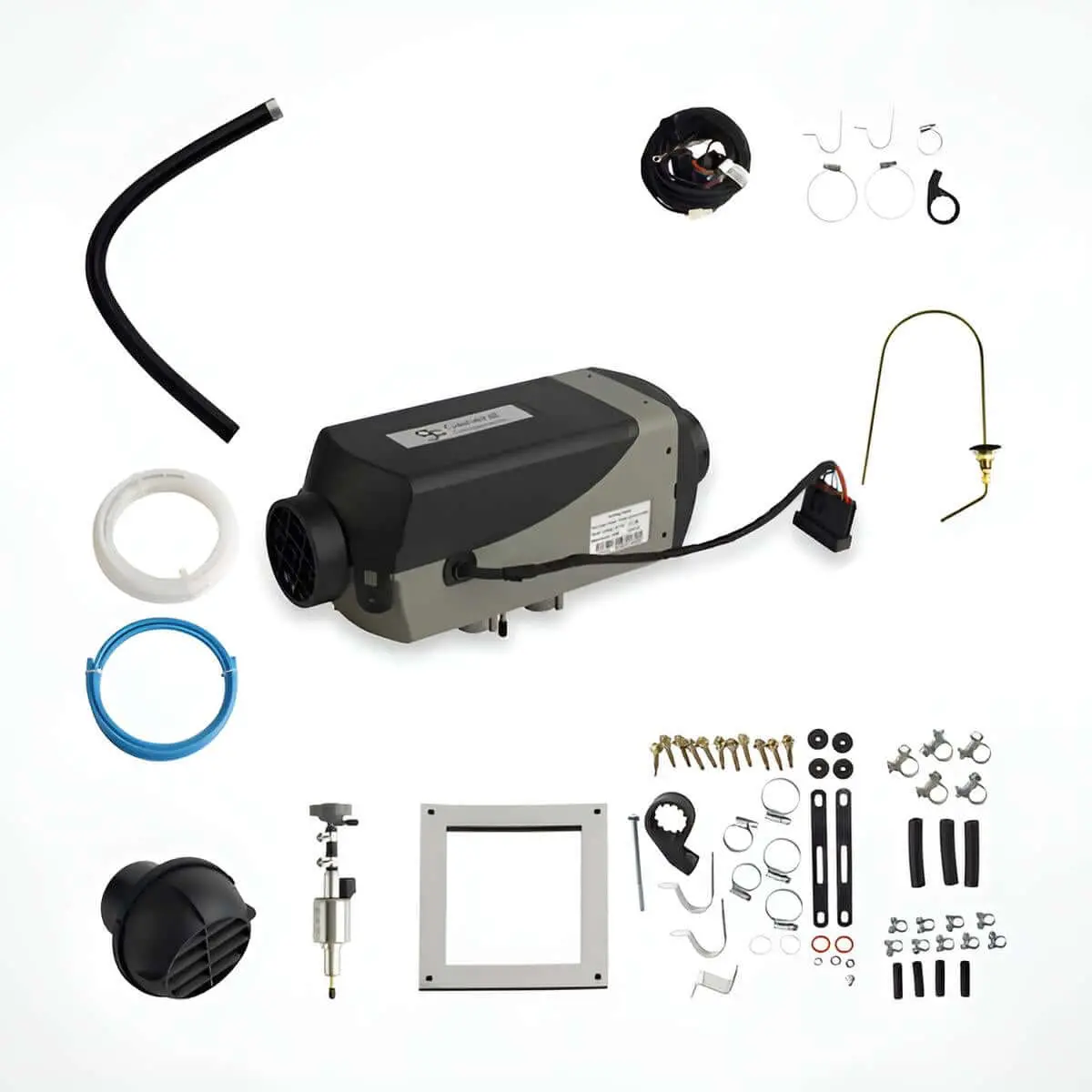

- Includes programmable digital controller and all required hardware for basic installation. Includes 1m air duct with one register, fuel pump with 7m fuel line, fuel pickup tube and a tee, wiring harness straps, screws, clamps and straps, exhaust and intake tubing.
- This heater is designed for air heating applications in cabs/bunks of semi trucks, diesel trucks, and RVs.
- 12V DC, diesel-powered, and no-idle
- Multi-heating mode OLED controller and app compatible
- Heating Setting 1: Setpoint – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection
- Heating Setting 2: Adjustable Min. to Max. Air Circulation
- Heating Setting 3: Ventilation – No Heat, Fan Only
Product Description:
This is a 2200A Bison 2.2Kw diesel power semi truck cab air heater kit with OLED controller. This kit comes with all required components for installation. This is a 12V DC powered air heater designed to pipe into a trucks existing fuel system and warm the cab of a truck. This heater has 3 heating settings. Setpoint which has a narrow temp range that after dropping a few degrees the heater will activate similar to a house thermostat system. Heating setting 2 is the adjustable min to max, which give a larger range setting which once set will turn on when hitting the temperature min and runs until the temp reaches the max. Setting 3 is a fan only setting. This kit has all required components for install.
Warranty:
∙ Highway Vehicles and Recreational Vehicles: 2 years or 2000 hours of operation, whichever comes first.
∙ Off-Highway Vehicles and Marine Vessels: 1 year or 1000 hours of operation, whichever comes first.
(For full warranty info see this link: https://generalcomponents.com/pages/warranty-info)
Technical Information:
| Specification | Value |
|---|---|
| Heat Output: BTU/hr (kW/hr) | 2900(0.85) – 7506(2.2) |
| Diesel Fuel Consumption: U.S Gal./hr (L/hr) | 0.03 (0.1) – 0.07 (0.28) |
| Electric Power Consumption: Amps (Watts) @12VDC | 0.58 (7) – 2.83 (34) |
| Electric Power Consumption: Amps (Watts) @24VDC | 0.29 (7) – 1.42 (34) |
| Voltage Operating Range: Volts DC (for 12V models) | 10.5 – 16 with Low and High Voltage Protecton |
| Voltage Operating Range: Volts DC (for 24V models) | 21 – 32 with Low and High Voltage Protecton |
| Operating Modes | Setpoint – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection – Adjustable Min. to Max. Air Circulation / Ventilation – No Heat, Fan Only |
| Unit Dimensions: LxWxH, Inches (mm) | 12.21 x 4.53 x 4.80 (310 x 115 x 122) |
| Unit Weight: lbs (kg) | 5.95 (2.7) |
