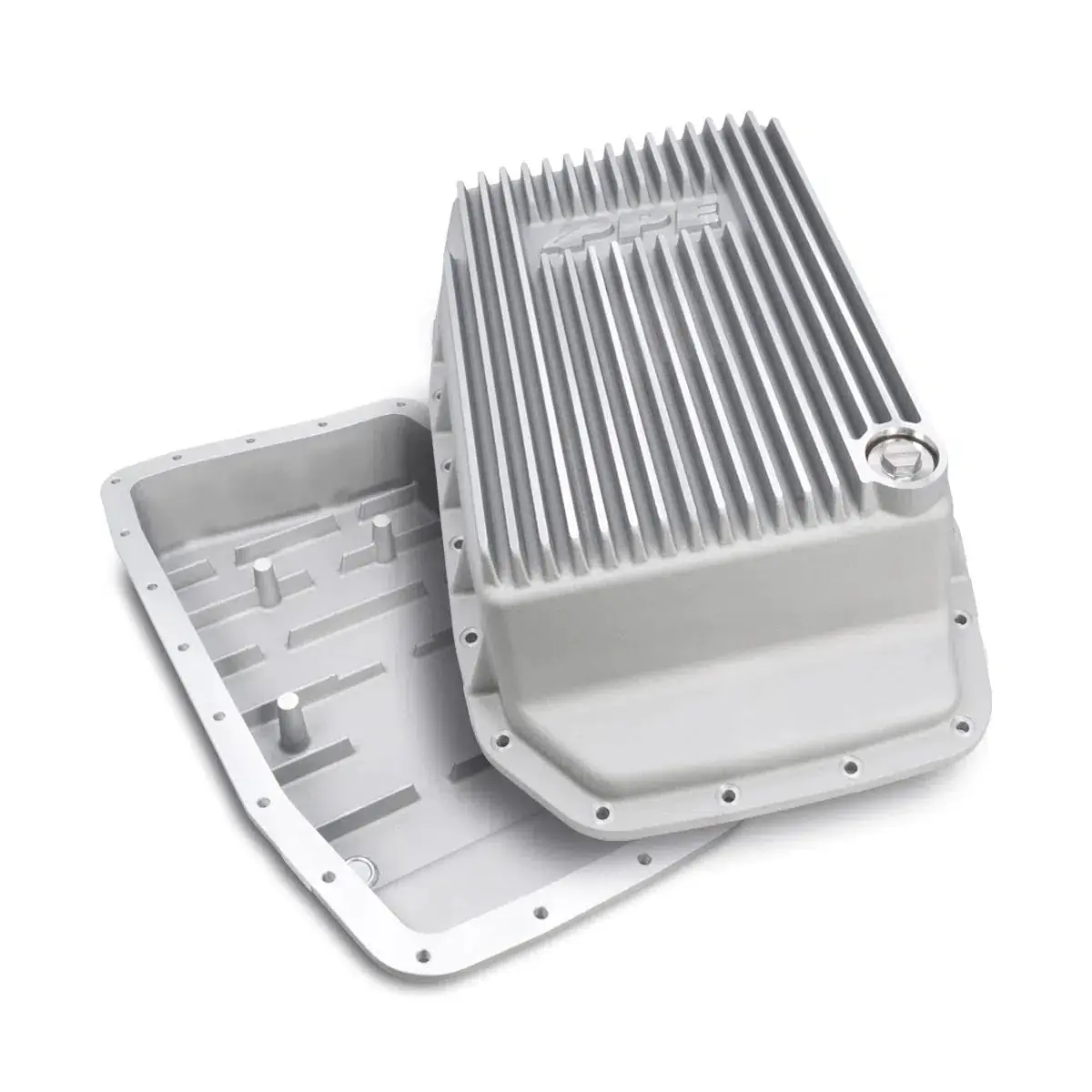

Heavy-Duty Deep Cast Transmission Pan for 2009–2017 Ford 6R80 (328051100)

Description

Description

Fits

Holding an  extra 4.25 quarts of fluid, is cast from high-quality A356.0-T6 aluminum alloy for strength and optimum heat dissipation, & a flat bottom design for complete fluid drain; this deep transmission pan features cast external fins & internal baffles that increase surface area while reducing fluid temp. While the gussets provide strength and support; for an overall robust transmission pan.

Part Number: 328051100

Features

• Deep design increases fluid capacity by 4.25 quarts
• .75″ external fins improve heat dissipation, lower transmission fluid temperature, and increase strength
• .75’’ internal baffles increase heat dissipation and reduce fluid sloshing
• Internal posts support trans filter at stock location
• One-inch Neodymium magnet equipped with 304 stainless steel drain plug with Viton O-ring
• 1/8″ NPT port for optional fluid temperature monitoring sensor
• Compatible with OEM gasket and filter
