High-Mount S300 Turbo Swap Kit for 2004.5–2007 Cummins (2nd Gen Compatible) (Wcf100475)

Description

Description

Fits

Designed to be used with 2nd Gen Style Stainless Diesel or Steed Speed exhaust Manifold. If you are not purchasing the turbo and manifold from us you must specify the brand of turbo and manifold you are using, some brands may require that you send the parts into Wehrli for the kit to be built.

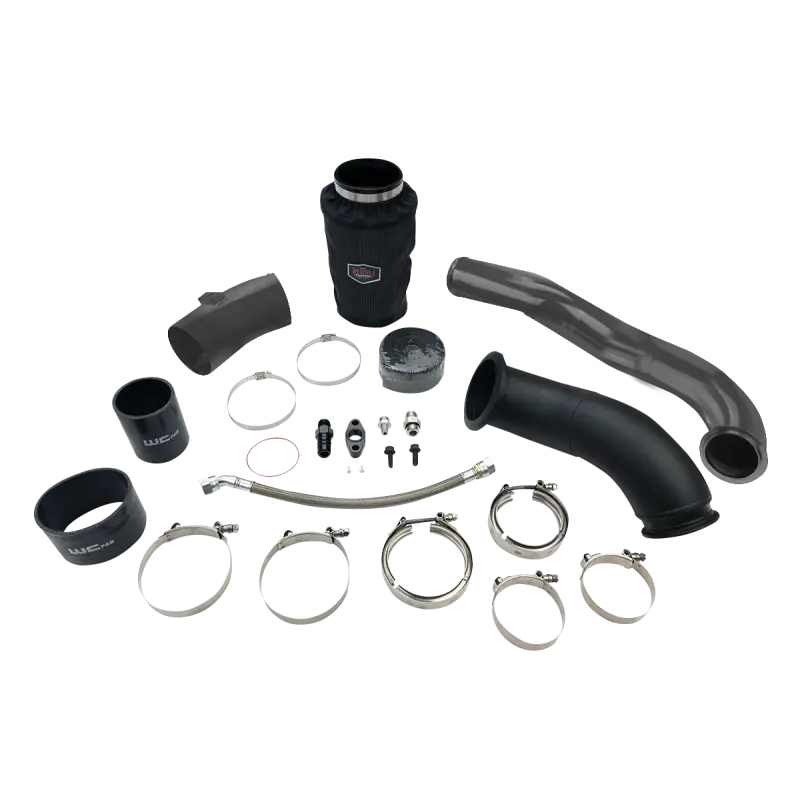

This kit includes all the components needed to install the turbo. We mount the manifold pointing up which allows for a quick and simple downpipe install; no cutting of your exhaust system is required! This downpipe connects to the v-band flange on the exhaust pipe just as your factory turbo/cast elbow did.

Part Number: WCF100475

Features

• 4″ Shorty Down Pipe (Mates to exhaust system V-band)
• 4″ Intake
• Dry Air Filter
• Outerwear’s Pre-Filter Cover
• Oil Feed Line Fitting
• Oil Drain Line Assembly
• 1/2″ T4 Spacer plate
• 3″ Hot Side Intercooler Pipe (v-band style connection)
• Silicone Boots
• T-Bolt Clamps
• Coolant Hoses and Fittings
• Powder Coating

Notes

• This downpipe is HX40 style flange connection at the turbo exhaust housing as this style offers the best seal, alignment, and easiest installation. If you are not purchasing the turbo from us you will need to make sure your exhaust housing is machined to HX40 style outlet flange
• Hot side Intercooler pipe uses a v-band connection at turbo. The kit INCLUDES welding of V-band flange to the SXE turbo cover. If you are not purchasing turbo from us, it WILL need to be sent in to have the flange welded onto the outlet.
• Not compatible with Banks Power Intercoolers! If you have a Banks Intercooler, please contact us for assistance placing your order.
• Also compatible with 2003-2004 model year trucks which have updated their down pipe / front pipe to the 2004.5-2011 style part
• This product is not on order estimated average lead time is 40+ business days
