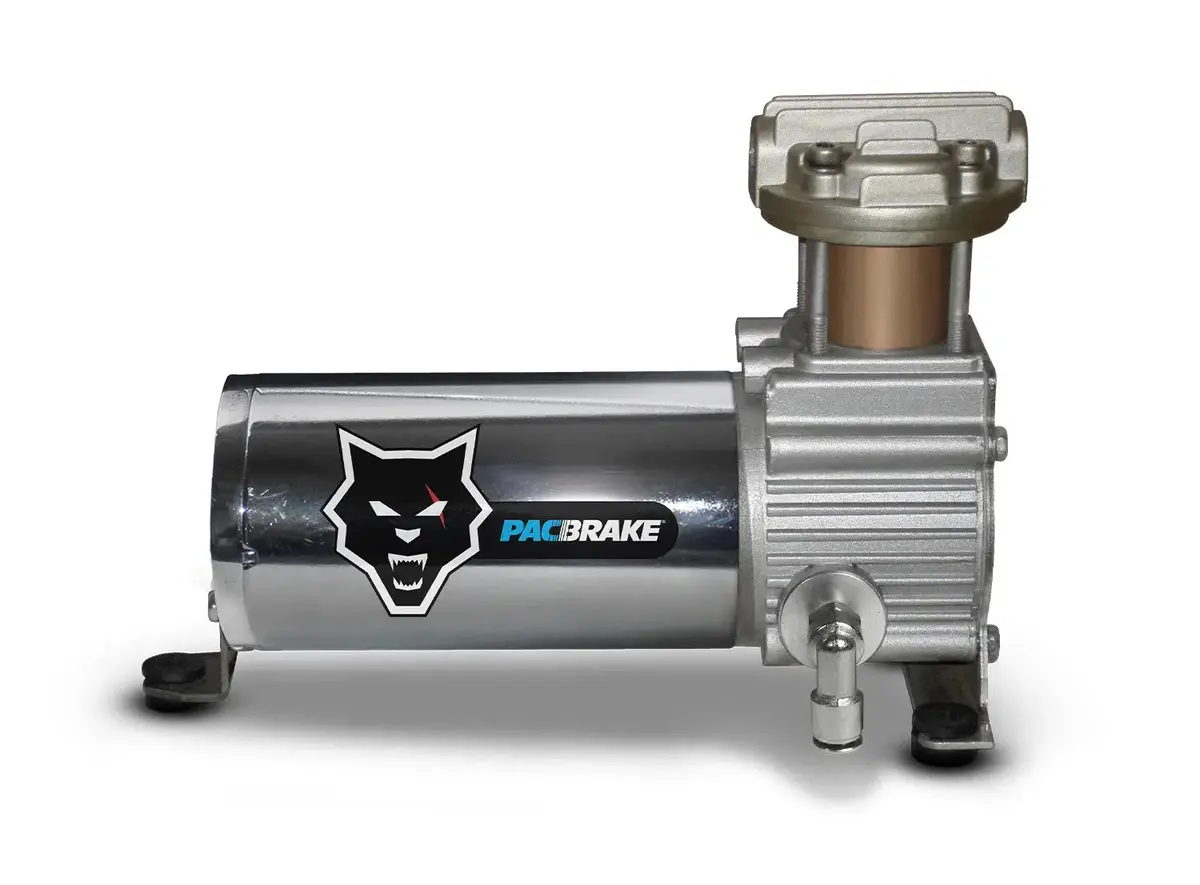

HP325 Series 12V Universal Air Compressor Kit with Wiring Harnesses – Model HP10066

Description

Description

Fits: Universal

The Pacbrake HP325 Series 12 Volt Air Compressor Kit is intended for filling air tanks for both the on and off-road markets. This compressor will provide quick and effortless inflation power thanks to its 1/4HP air compressor that has a 33% duty cycle (20 minutes @ 100psi). All AMP compressors have a max working pressure of 150psi, feature an oil-less design, and are mountable in any orientation. So whether you are wanting to fill your air suspension, supply air to your train horns, fill flat tires, or power small air tools, the HP625 Series Air Compressor will get the job done!

Part Number: HP10066

Features

• Quick & effortless inflation power
• 33% duty cycle
• Oil-less design
• Sealed bearings
• PTFE piston ring
• Copper wire wound permanent magnet motor
• Hard-anodized aluminum cylinder and aluminum sleeve
• Equipped with a Check Valve to prevent possible motor damage
• 150 PSI max working pressure

Includes:

• HP325 Series Air Compressor
• Pre-Built Wiring Harnesses
• All Required Hardware

Compressor Specifications:

• (Part Number HP10143)
• 12 VDC
• 100 percent (1 Hour at 100 PSI) duty cycle
• 1/4 HP
• Size is 8.7 x 4 x 6.2 (LxWxH) or 221 mm x 102 mm x 158 mm
• Weight is 5.5 lbs

Installation

• For installation instructions, Please Click Here
