Fits: Universal

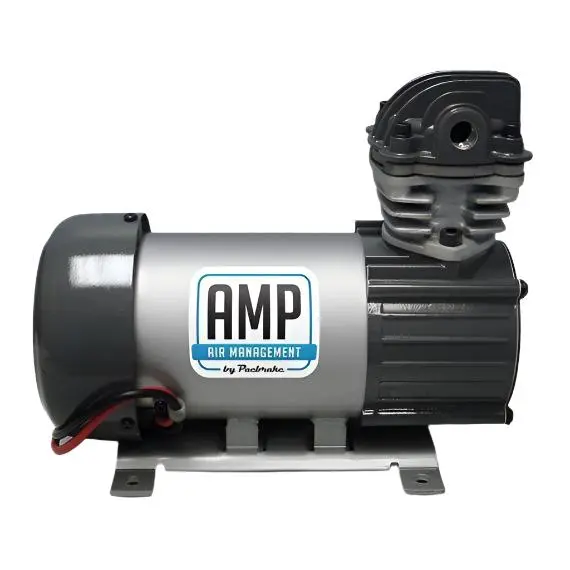

The Pacbrake HP625 Series 12 Volt Heavy Duty Air Compressor Kit is intended for filling air tanks for both the on and off-road markets. This compressor will provide quick and effortless inflation power thanks to its 3/4HP air compressor that has a 100% duty cycle (1 hour @ 100psi). All AMP compressors have a max working pressure of 150psi, feature an oil-less design, and are mountable in any orientation. So whether you are wanting to fill your air suspension, supply air to your train horns, fill flat tires, or power small air tools, the HP625 Series Air Compressor will get the job done!
Part Number: HP10629
Features
- Copper wire wound permanent magnet motor
- Oil-less design
- Sealed bearings
- PTFE piston ring
- Cast aluminum cylinder head
- Hard anodized aluminum cylinder and aluminum sleeve.

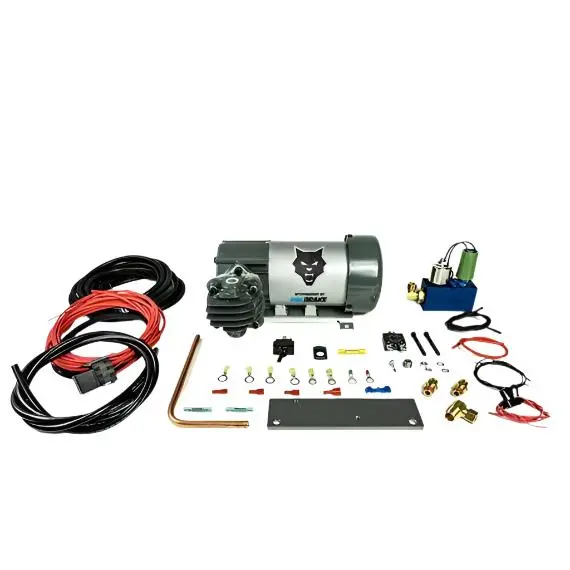

Includes:
- Pacbrake’s HP625 Series Pacbrake Air Compressor (Kit Number HP10625V)
- The entire unloader block assembly kit with pre-built harnesses
- (Kit Number HP10116). All you need is a mounting location, power, ground wire and a pneumatic airline.
Compressor Specifications:
- 12V DC
- 100 percent duty cycle at 100 PSI
- 3/4 HP
- Vertical head configuration
- Size is 11.5 x 6 x 9.5 or 293 mm x 153 mm x 242 mm (LxWxH)
- Weight is 17.7 lbs
Installation
- For Installation Instructions, Please Click Here
