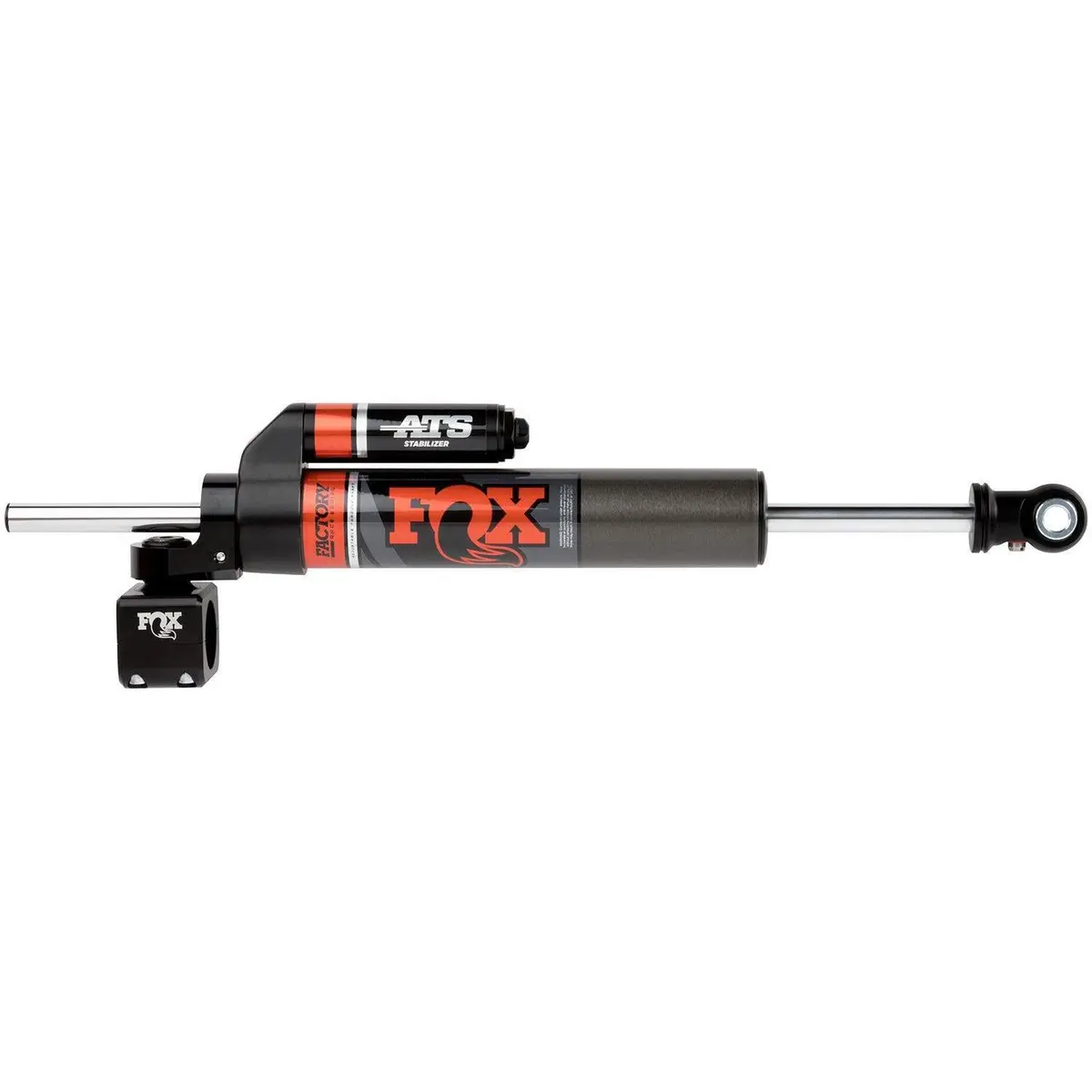

Jeep Wrangler Race Series ATS Stabilizer (2007–2018, 8.1″, 1 5/8″ Tie Rod, Part #983-02-146)

Description

Description

Fits

Note: For 1 5/8″ Tie Rod

The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates Shaft fluid displacement throughout the stabilizer’s entire Travel in both directions.

The external piggyback Reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation.

Part Number: 983-02-146

Features

• Through Shaft Stabilizer
• Includes mounting hardware
• Aluminum Body Dissipates Heat Faster Than Steel
• Eliminates fluid displacement, delivering neutral and consistent damping of unwanted steering feedback
• IFP Separates Oil From High-Pressure Nitrogen Gas
• 2″ impact-extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8″ hard chrome plated heat-treated alloy steel
• Race-developed high-flow Piston design
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal

Specs:

• Extended Length 22.2″
• Compressed Length 14.09″
• Top Mount Tie Rod Clamp
• Bottom Mount Eyelet
• Travel 8.12″
