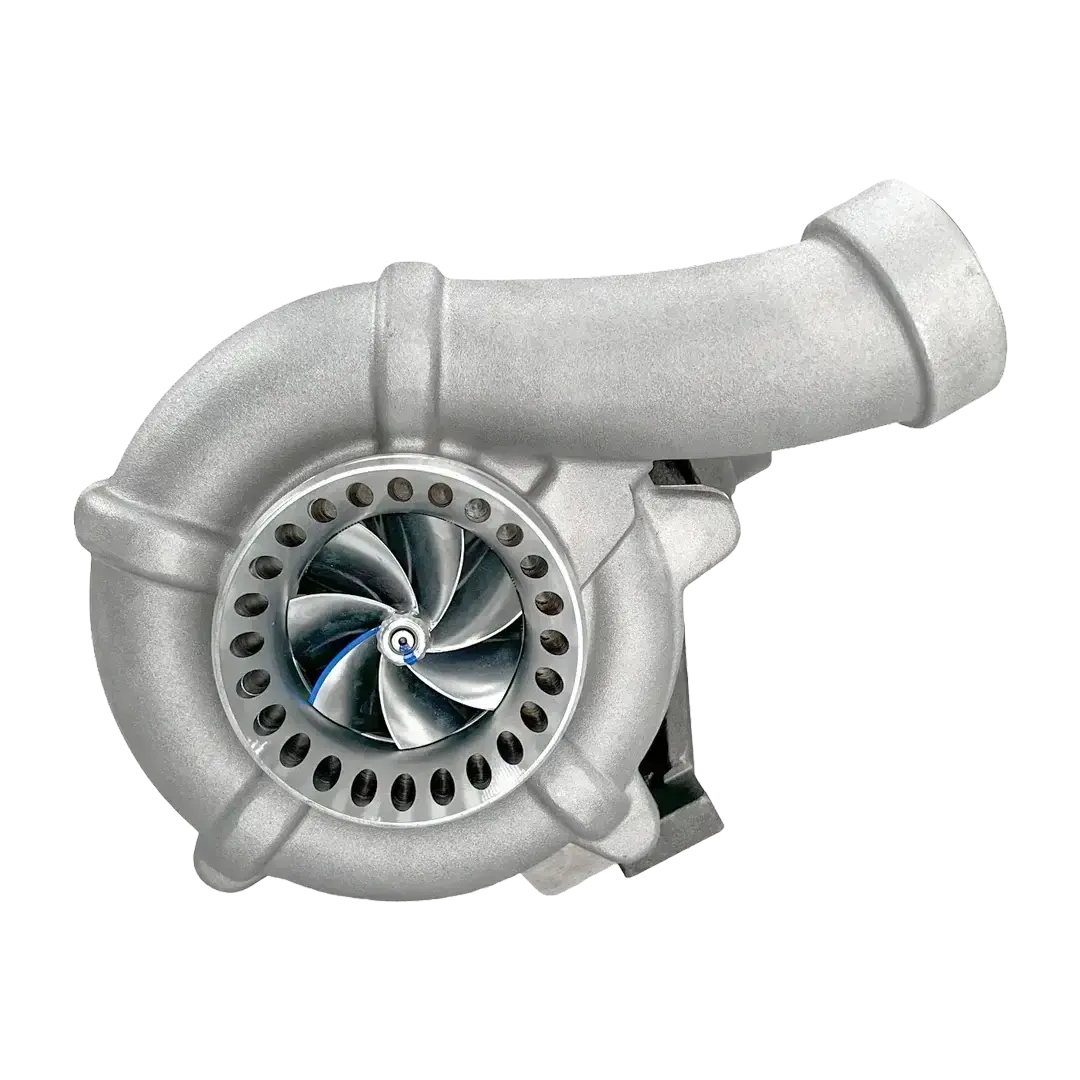

KC Fusion Stage 1 Low-Pressure Turbocharger for 2008–2010 6.4L Powerstroke

Description

Description

Fits

Year	Make	Model	Engine
2008-2010	Ford	F-Series	6.4L Powerstroke

Power: Up to 630HP

Recommended Injectors: Stock

This turbo is perfect for the 6.4L Superduty and is ideal for towing, stock-ish trucks, and those who don’t plan on upgrading their injectors. It’s got a 4″ inlet and a ported anti-surge cover, plus a bigger 360 thrust bearing.

This may be an entry level towing turbo meant for stock injectors, but it still outperforms most other options on the market unless you go much bigger.

If you want more than 650HP, then check out the KC Fusion Stage 2 Low Pressure Turbo for your 2008-2010 6.4L Powerstroke.

Part Number: 302069

Features

• 71mm Billet Compressor wheel
• Stock size Turbine Wheel
• Ideal for stock size injectors
• Larger 4″ inlet
• Ported anti-surge compressor cover
• Larger upgraded 360 thrust bearing on the market
• Drop-in turbo (no mods except air filter)
• REQUIRES 4″ inlet air filter
• DOES NOT require upgrades to the high-pressure turbo
• NO CORE required
• Includes install kit

Warranty

Parts Only

• 1-Year Unlimited Miles Limited Warranty

Notes

• These turbos come with a standard finish unless specifically requested. You can add a polished/custom color cover for an additional fee.
• REQUIRES upgraded 4″ intake to fit over upgraded 4″ inlet

Graph Breakdown

• Stock injectors: GRAPH 1
• KC 71mm S1 turbo 2200us – 638hp 1306tq RED LINES
• Competitor 73mm 2200us – 621hp 1253tq YELLOW LINE
