Description
Description
Fits
| Year | Make | Model | Engine |
| 2003-2007 | Ford | F-Series 2WD/4WD Flange Drivetrain | 6.0L Powerstroke |

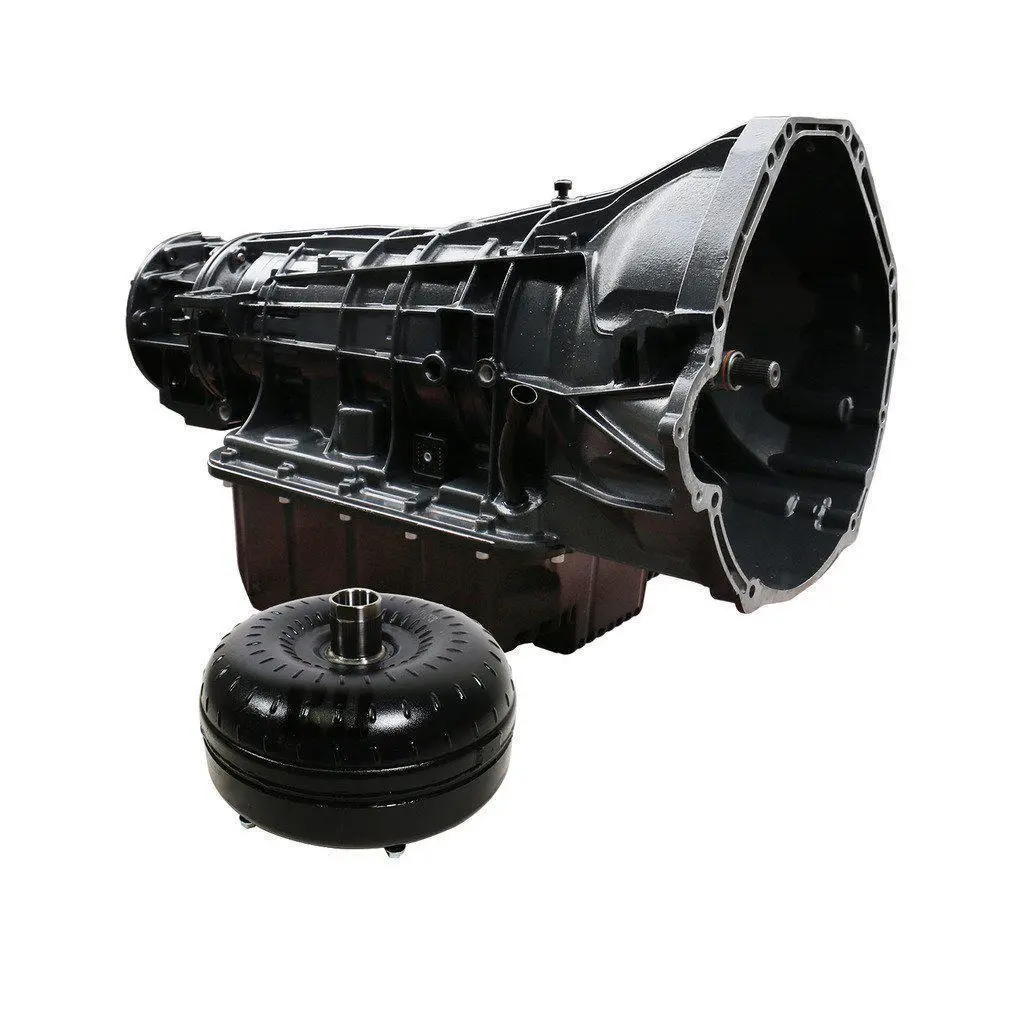

Whether it be crossing the finish line at the track or at the end of a long haul towing journey, the BD Diesel 1064464SM Transmission and Torque Converter Package will get you to your final destination. Each and every transmission and torque converter package has been dyno tested together to achieve ultimate performance and reliability. All transmissions from BD also include their very own Heavy-Duty Transmission pan which adds extra fluid capacity, helping to keep your transmission temperature run cooler.
Part Number: 1064464SM
Features
Transmission:
- Increase the durability of your drivetrain
- BD aluminum HD deep-pan increases oil capacity by 6qt
- Upgraded sump filter
- Replace plastic pressure plugs in the valve body with aluminum
- Heavy-duty snap ring and blow-off valve to prevent runaway pressure damaging case
- Reworked front pump
- Clutch Count: COAST CLUTCH 3
- Clutch Count: FORWARD 4
- Clutch Count: LOW REVERSE 6
- Clutch Count: INTERMEDIATE 5 (67% increase over OEM)
- Clutch Count: DIRECT 6 (20% increase over OEM)
- Clutch Count: OVERDRIVE 5 (67% increase over OEM)
- Each transmission is dyno-tested
Torque Converter:
- Enhanced Stall – Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Up to triple the amount of lock-up clutch material
Installation
- 7 Hours
- Install Click Here
Warranty
Parts Only – No Race or Sled Pull abuse covered.
- 36-Months
- 150,000 Miles
- Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
