Single-Channel Wireless Air Suspension Controller with SD Compressor – HP20472-QM

Description

Description

Fits: Universal

Control your air springs from the comfort of your cab with the Pacbrake Dual Channel Wireless Air Spring Control kit. They’ll fit on any vehicle application/frame & any air spring kit on the market!

Part Number: HP20472/ HP20472-QM/HP20472-QM-R

Features

• Max Working Pressure: 827.4 kPa [120 psi], 9% @ 689.5 kPa [100 psi]
• Max Continuous Run Time: 5 Minutes ON / 55 Minutes OFF
• Rated Flow: 29 L/min [1.02CFM] @ 0kPa [0 psi]
• Simultaneous Fill
• Ingress Protection: IP55 Compressor, IP67 Electric Connectors
• Ambient Operating Temp: -40C to +70C [-40F to +158F]
• 12 VDC MAX current draw: 11 AMPS

Additional Info

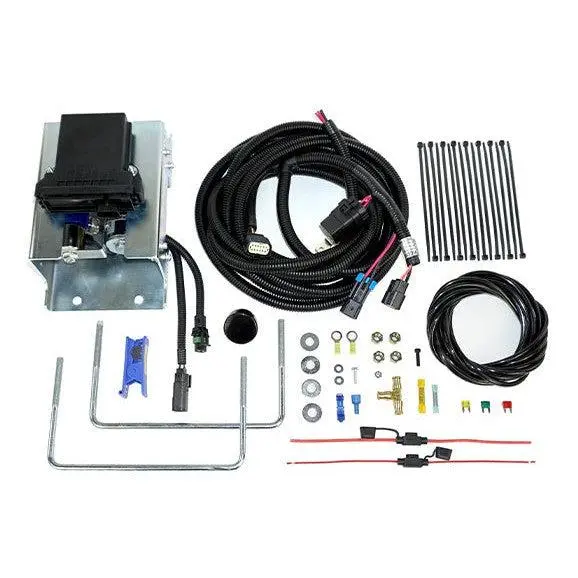

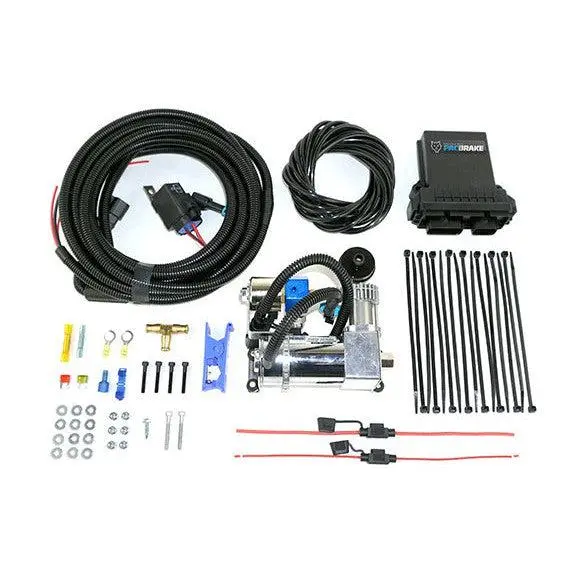

• Air compressor, controller, solenoid block, pressure sensors and harnesses
• Free Phone app (For use with Android 4.3+ or Apple iOS 10.3+ mobile device)
• Air lines, pressure connectors and mounting hardware
• This kit comes with HP325 12V DC Air Compressor
• The kit is on demand and intended to use without an air tank

Installation

• Click here to view installation instructions
• Click here to view quick mount installation guide
