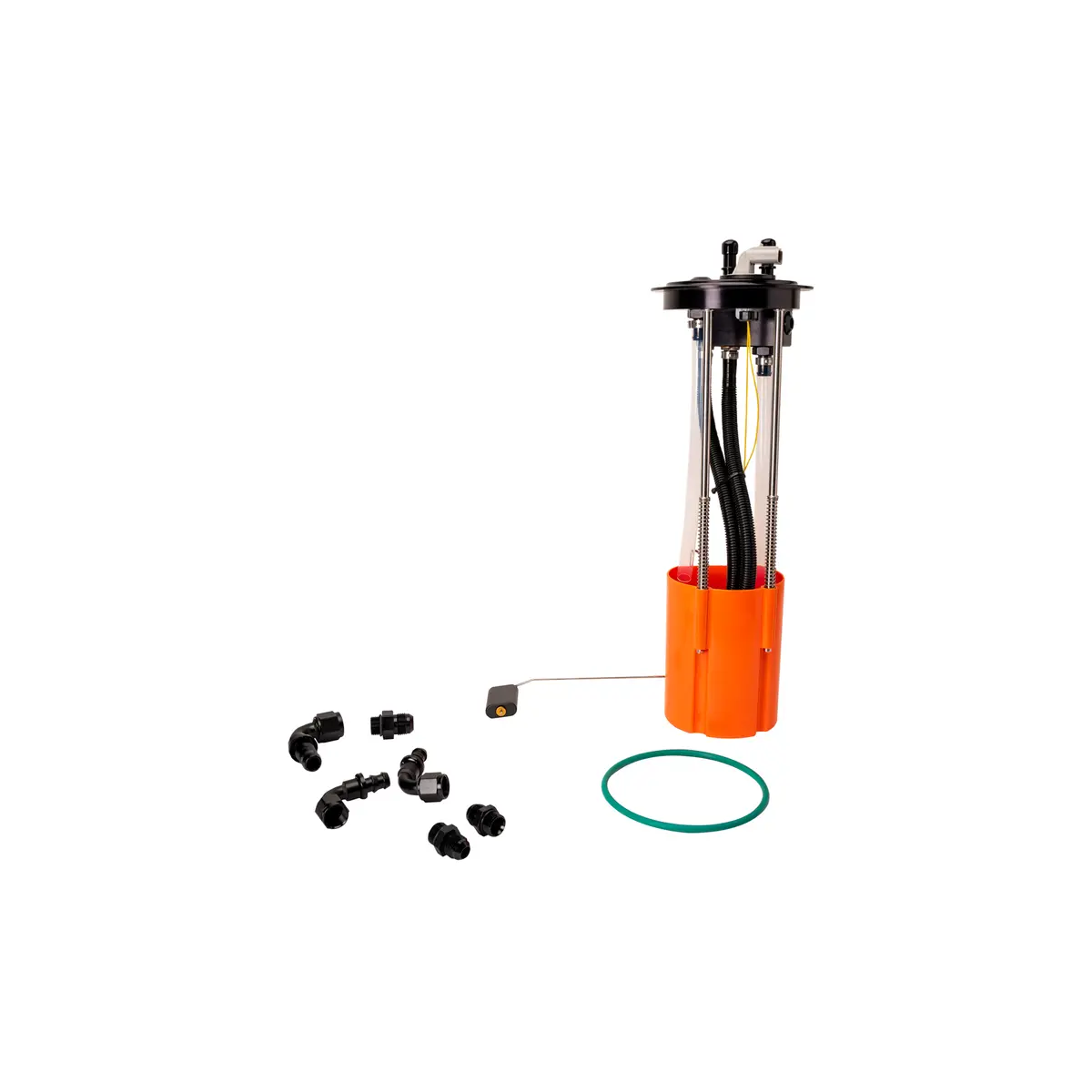

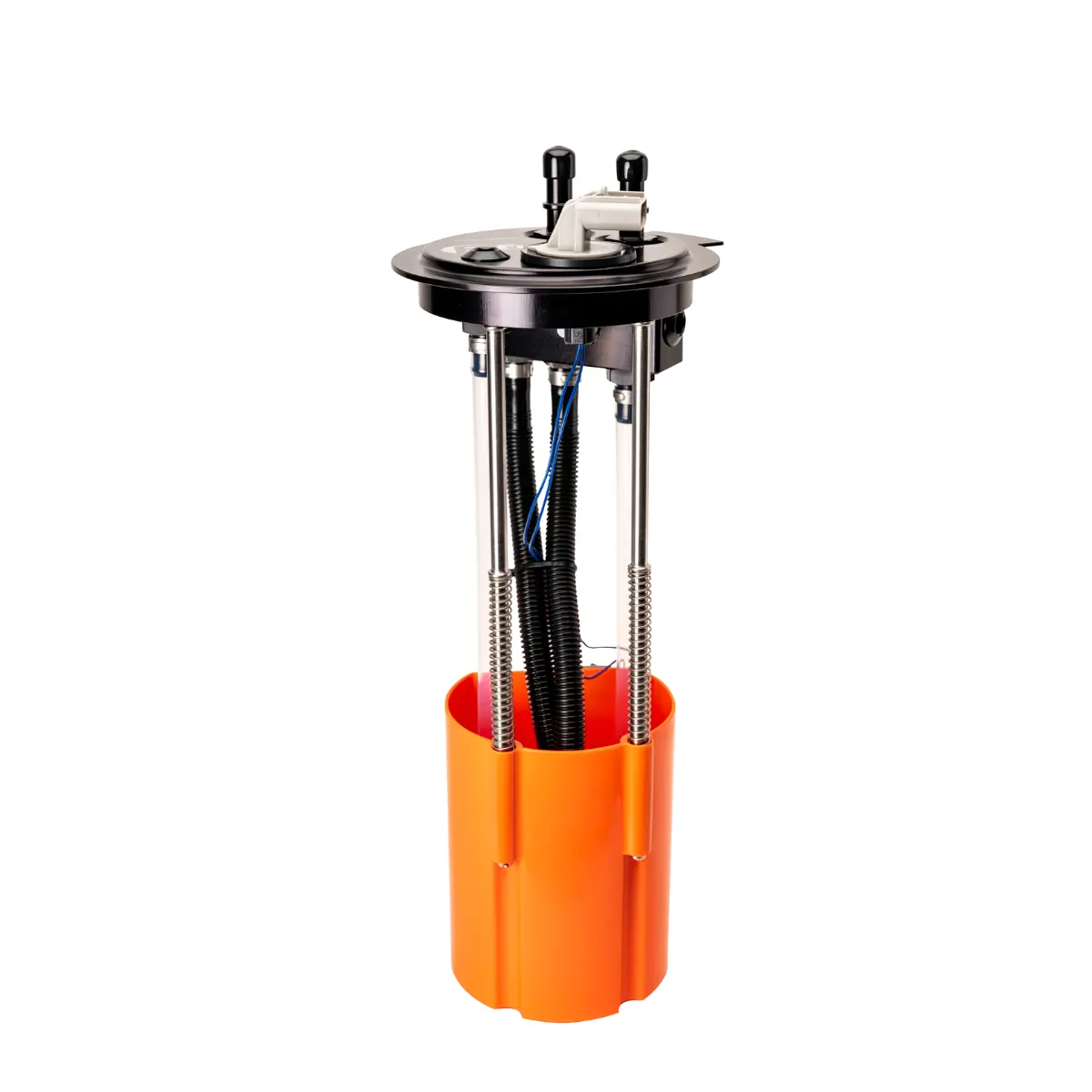

SureFlo Performance Fuel Sending Unit for 2011–2016 Power Stroke – FPE-SF-FMC-1116-XB

Description

Description

Fits

Year	Make	Model	Engine
2011-2016	Ford	F-250/F-350/F-450	6.7L Powerstroke

PROBLEM: If you’ve got an aftermarket pump external of your tank, you’ll have to add a draw straw or modify the tank to fit a sump. Each option has downsides, like the dreaded ¼ tank problem causing pump cavitation from sucking in air.

SOLUTION: The SureFlo performance sending units are designed to be compatible with aftermarket lift pumps and fit directly into the stock sending unit location. You’ll appreciate the factory style quick disconnects that easily adapt to your stock fuel lines at the tank, making for a clean installation with no cutting or drilling required. SureFlo works by pulling fuel from, and returning it to, the bucket assembly at the base of the unit. This clever design ensures that you’ll always be drawing fuel into your pump and not accidentally drawing air into the fuel system, alleviating the dreaded ¼ tank problem. Bonus: The SureFlo bucket even includes one-way check valves for easy fuel flow at lower tank levels.

In need of a fix for your 2011-2016 Ford truck’s malfunctioning level sender or want to run your own fuel lines straight to the tank? Look no further than the SureFlo Performance Sending Unit!

Part Number: FPE-SF-FMC-1116-SB /  FPE-SF-FMC-1116-LB

Features

• OEM style fitment
• No modifications
• New fuel level electronics and fuel float
• Heavy-duty billet aluminum cap
• Universal -8 AN ports for professionally plumbing a custom fuel setup
• New O-ring

Installation

• Short Box Click Here
• Long Box Click Here

Notes

• Not for use in cab and chassis applications
• This product has been confirmed to fit Titan and S&B aftermarket fuel tanks.
• This product has been developed and tested to work with aftermarket pumps including AirDog !!-5G and FASS 180F/140GPH high pressure pumps.

Additional Info

Year	FPE Part Number	Replaces Ford OE Part Number
2011-2016	FPE-SF-FMC-1116-SB	BC3Z-9A299-A
2011-2016	FPE-SF-FMC-1116-LB	BC3Z-9A299-G

Warranty

Parts Only

• 1-Year Limited Warranty
