Description
Description
Fits:
| Year | Make | Model | Trim |
| 2007-2010 | Jeep | Wrangler | X, Unlimited X |
| 2007-2017 | Jeep | Wrangler | Unlimited Rubicon, Rubicon, Sahara, Unlimited Sahara |
| 2010-2017 | Jeep | Wrangler | Unlimited Sport, Sport |
| 2011-2011 | Jeep | Wrangler | 70th Anniversary, Unlimited 70th Anniversary |
| 2016-2016 | Jeep | Wrangler | 75th Anniversary, Sport S, Unlimited Sport S, Unlimited 75th Anniversary |
| 2018-2018 | Jeep | Wrangler JK | Unlimited Rubicon, Sport, Unlimited Sahara, Sahara, Unlimited Sport, Rubicon |

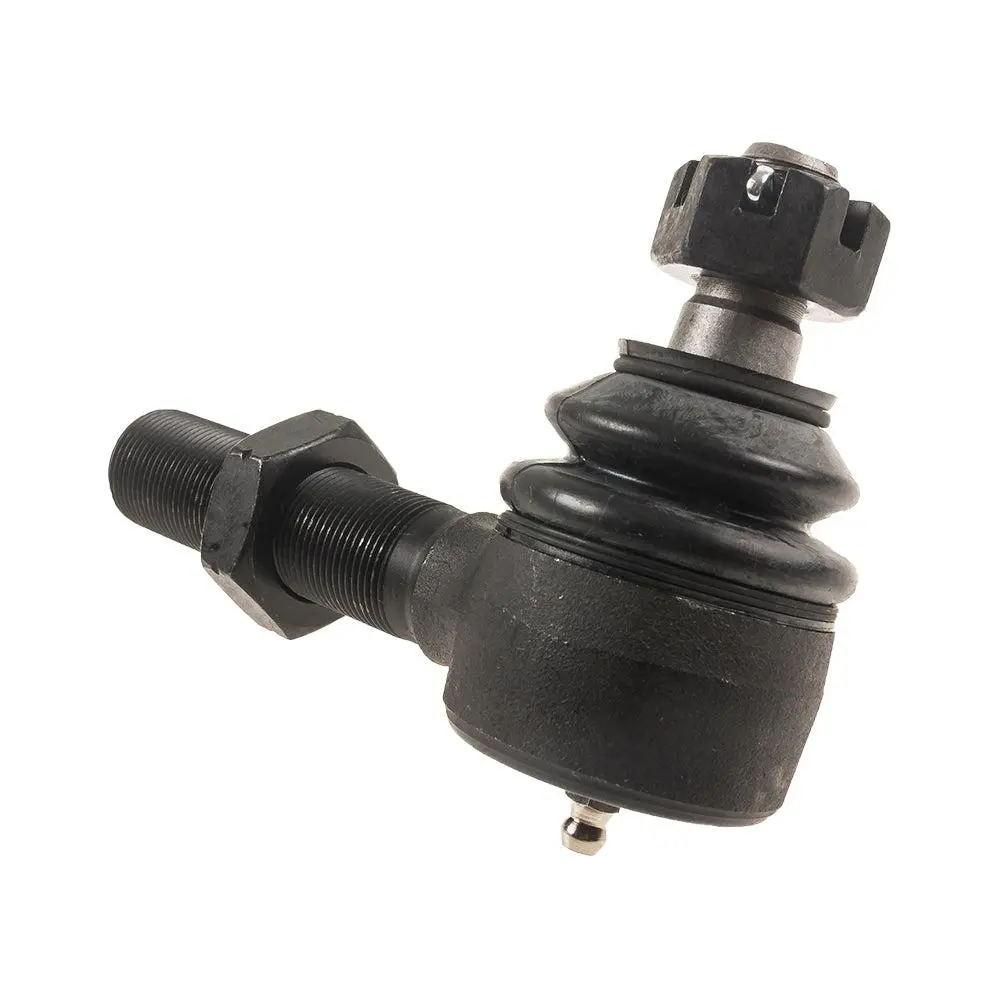

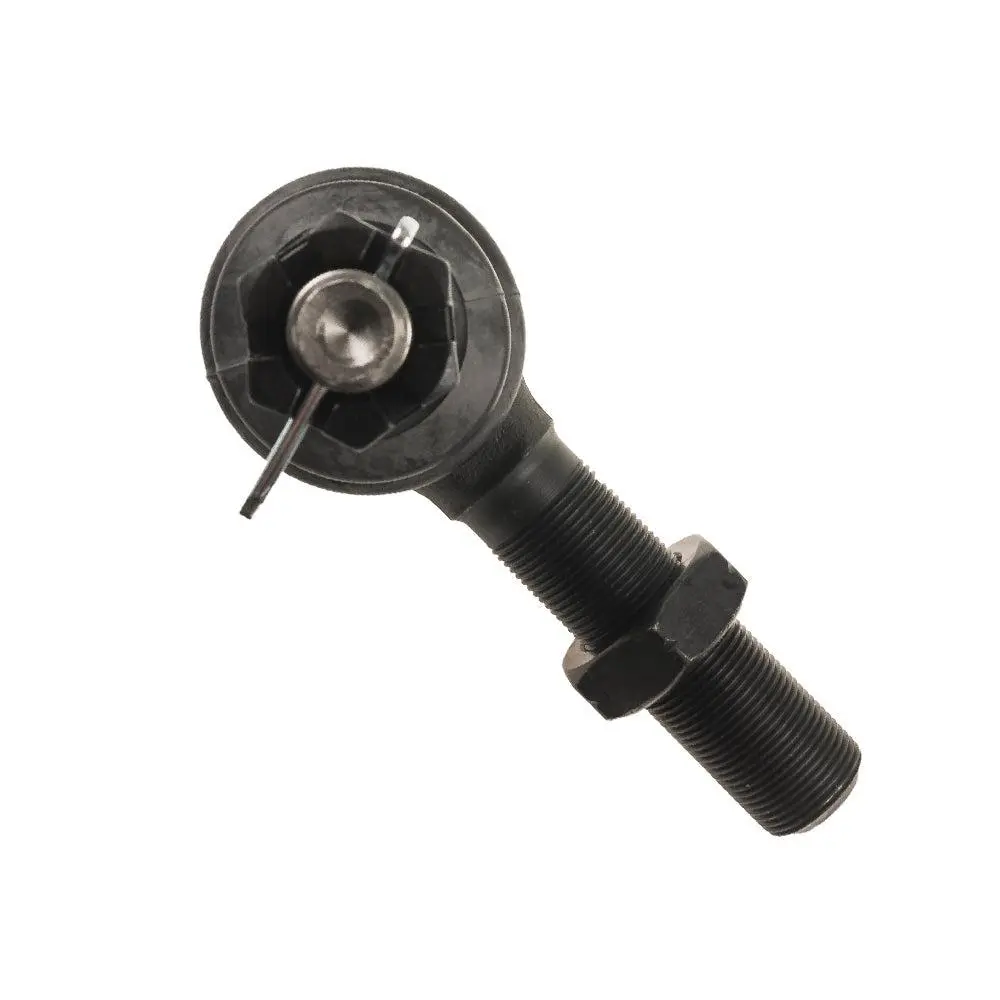

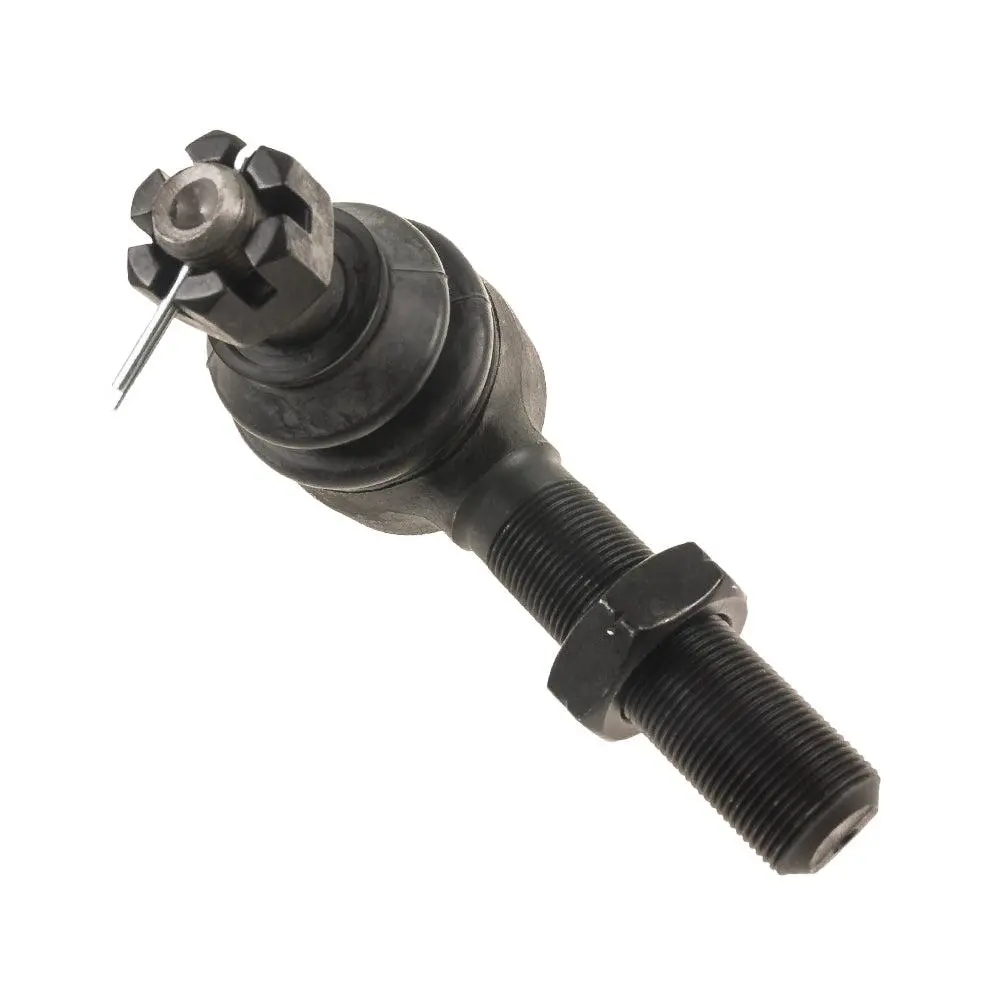

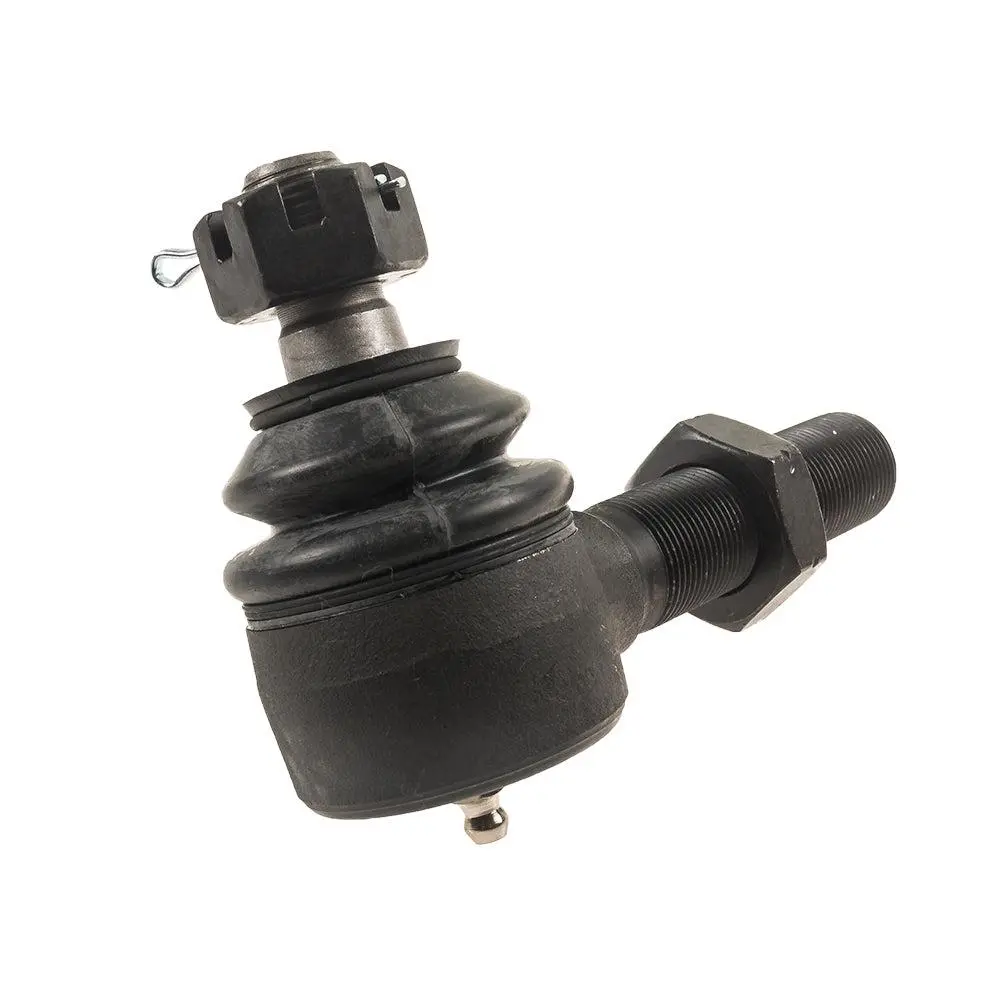

HD Metal-on-Metal Tie Rod Ends; fully greaseable, wear resistant, & forged bearing housings are made from 1018 steel for a strong, smooth bearing surface. These tie rod ends outperform any other OEM or aftermarket version out there.
Part Number: 4131-L
Features
- Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
- Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
- Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
- A larger shank with no stress riser (doesn’t neck down at base), Elimination of the nylon ball race
- Black NBR with retaining springs
- Includes all necessary hardware for installation
- 7/8-18 UNF LH Thread
- Sold Individually
Additional Info
| Part # | Description | Thread | Taper | Style |
|---|---|---|---|---|
| 4131-L | HD Tie Rod End, Left Hand Thread for JK’s | 7/8-18 Left Hand | 1:8 Taper (7.125 DEG INCL ANGLE) | Standard |
| 4131-R | HD Tie Rod End, Right Hand Thread for JK’s | 7/8-18 Right Hand | 1:8 Taper (7.125 DEG INCL ANGLE) | Standard |
| 4135-L | HD Tie Rod End, Left Hand Thread for TJ/XJ/ZJ’s | 7/8-18 Left Hand | 1:8 Taper (7.125 DEG INCL ANGLE) | Standard |
| 4135-R | HD Tie Rod End, Right Hand Thread for TJ/XJ/ZJ’s | 7/8-18 Right Hand | 1:8 Taper (7.125 DEG INCL ANGLE) | Standard |
| 4137-L | HD Tie Rod End, Left Hand Thread for TJ/XJ/ZJ’s | 7/8-18 Left Hand | 1:8 Taper (7.125 DEG INCL ANGLE) | Single Plane |
| 4139-L | HD Tie Rod End, Left Hand Thread for JK’s | 7/8-18 Left Hand | 1:8 Taper (7.125 DEG INCL ANGLE) | Single Plane |
| 4161-L | HD Tie Rod End, Left Hand Thread for JL | 1-14 Left Hand | 1:6 Taper (9.5 DEG INCL ANGLE) | Single Plane |
| 4162-L | HD Tie Rod End, Left Hand Thread for JL / JT Drag Link | 1-14 Left Hand | 1:8 Taper (7.125 DEG INCL ANGLE) | Single Plane |
| 4163-L | HD Tie Rod End, Left Hand Thread for JL / JT Drag Link and Tie Rod | 1-14 Left Hand | 1:6 Taper (9.5 DEG INCL ANGLE) | Standard |
| 4164-L | HD Tie Rod End, Left Hand Thread for JL / JT Tie Rod | 1-14 Left Hand | 1:6 Taper (9.5 DEG INCL ANGLE) | Single Plane |
| 4166-L | Conversion Tie Rod End (Pitman side). Adapts 8000-01 Drag Link for JL / JT with Ultimate Dana 60 axle housings only. |
7/8-18 Left Hand | 1:8 Taper (7.125 DEG INCL ANGLE) | Single Plane |
Notes
- 4131-L are designed specifically to be used in the following Synergy products: 8001, 8002 (2x required per product)
- 4135-L and 4135-R are designed to be used in the following Synergy product: 8121-00 (3x 4135-L and 1x 4135-R required)
- Synergy High Performance Grease (4119) is the recommended grease for this product
