Fits: Universal
Pacbrake’s experience designing cost effective hydraulic and pneumatic solenoids with demanding requirements has equipped Pacbrake with the experience to integrate solenoid controls into any application.

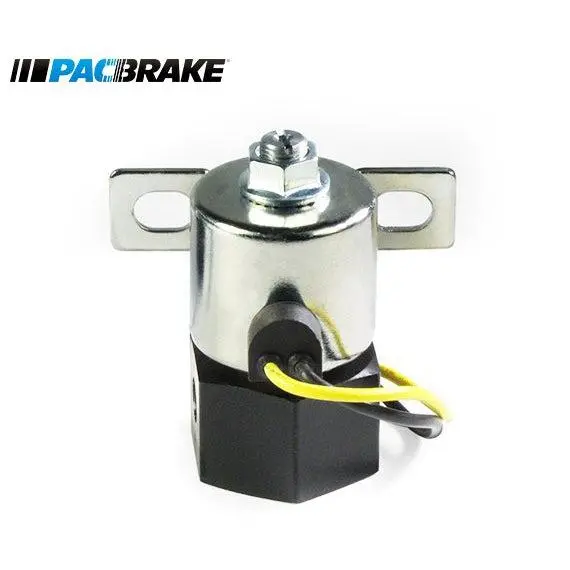

Part Number: C11935
Features
- Vacuum and air solenoids
- Stackable applications available
- 12 volt solenoids rated for automotive use
- Severe-duty applications
- ‘IN’ port normally closed
- ‘CYL’ port normally open to exhaust (atmosphere)
- 18″ [457 mm] long 18 AWG wire lead length
- Anodized aluminum valve body
- Zinc chromate plated carbon steel solenoid body
Additional Info
- PNEUMATIC SOLENOID
- Voltage Range: 12 VDC
- Coil Resistance: 10
- A: 2.91″ [74.0 mm]
- B: (Hex): 1.50″ [38.1 mm]
- C: .35″ X .50″ [8.9 mm X 12.7 mm]
- D: 2.00″ [50.8 mm]
- E: 1.8″ [45.7 mm]
- F: (Port):1/8″- 27 (-2) NPTF
- G: (Port): 1/8″- 27 (-2) NPTF
- H: .563″ [14.3 mm]
