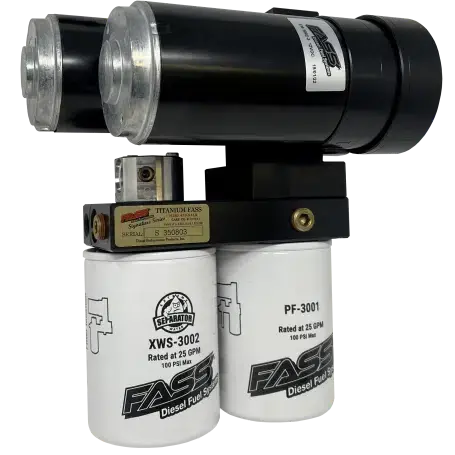

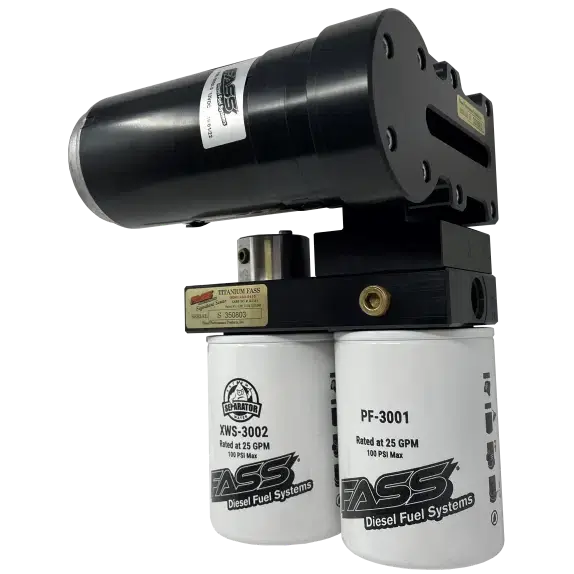

Universal Competition Series 360 GPH Diesel Lift Pump – Optimized for Stock & Mild Builds (Part #COMP360G)

Description

Description

Fits: Universal

Specially designed for high-performance diesel applications that demand a vast volume of fuel.

Part Number: COMP360G

Features

• Supplied with Universal Mounting Bracket
• Pressure Adjustable from 0-100 PSI
• -10 AN Inlet, Outlet, and Pressure Regulator Ports
• Removes Water, Air and Debris from Diesel Fuel
• 2 Micron Filtration Rating
• 1/8 NPT Pressure Gauge Port
• Easier to prime than a mechanical gear System
• 100 PSI Maximum Pressure
• 1,000,000 Mile Motor

Additional Info

Flow Rates:

• 360 Gallons Per Hour at Free Flow (0 PSI)
• 348 Gallons Per Hour at 10 PSI
• 336 Gallons Per Hour at 20 PSI
• 324 Gallons Per Hour at 30 PSI
• 318 Gallons Per Hour at 40 PSI
• 312 Gallons Per Hour at 50 PSI
• 306 Gallons Per Hour at 60 PSI
• 294 Gallons Per Hour at 70 PSI
• 282 Gallons Per Hour at 80 PSI
• 276 Gallons Per Hour at 90 PSI
• 264 Gallons Per Hour at 100 PSI

Notes

• 2 WH-1006-3R can be purchased to power the FASS Competition Series motors if you do not wish to build a custom wire harness
• Does not come with fuel lines, wiring, or fittings
• Electrical Requirements: Each motor will need a 30 amp fuse and we recommend 10 gauge wiring to each motor. Each electric motor can draw up to 10 amps max.
• Fuel Line Requirements: A single -12 suction line is recommended while a -8 or -10 engine feed and FASS return line is sufficient.
