Universal Onboard Air Kit – Compact 0.5-Gallon Aluminum Tank with Compressor (HP10163-AL)

Description

Description

Fits: Universal

The Pacbrake HP10163-AL HP325 Series Onboard Air Kit is perfect for utilizing accessories such as Air Horns, Air Lockers, and filling up to 33″ tires. This kit consists of an air compressor, aluminum ½ gallon air tank, fittings, pressure switch, relay(s), electrical connectors and all the required accessories.

Part Number: HP10163-AL

Features

• Copper wire wound permanent magnet motor
• Oil-less design; sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve

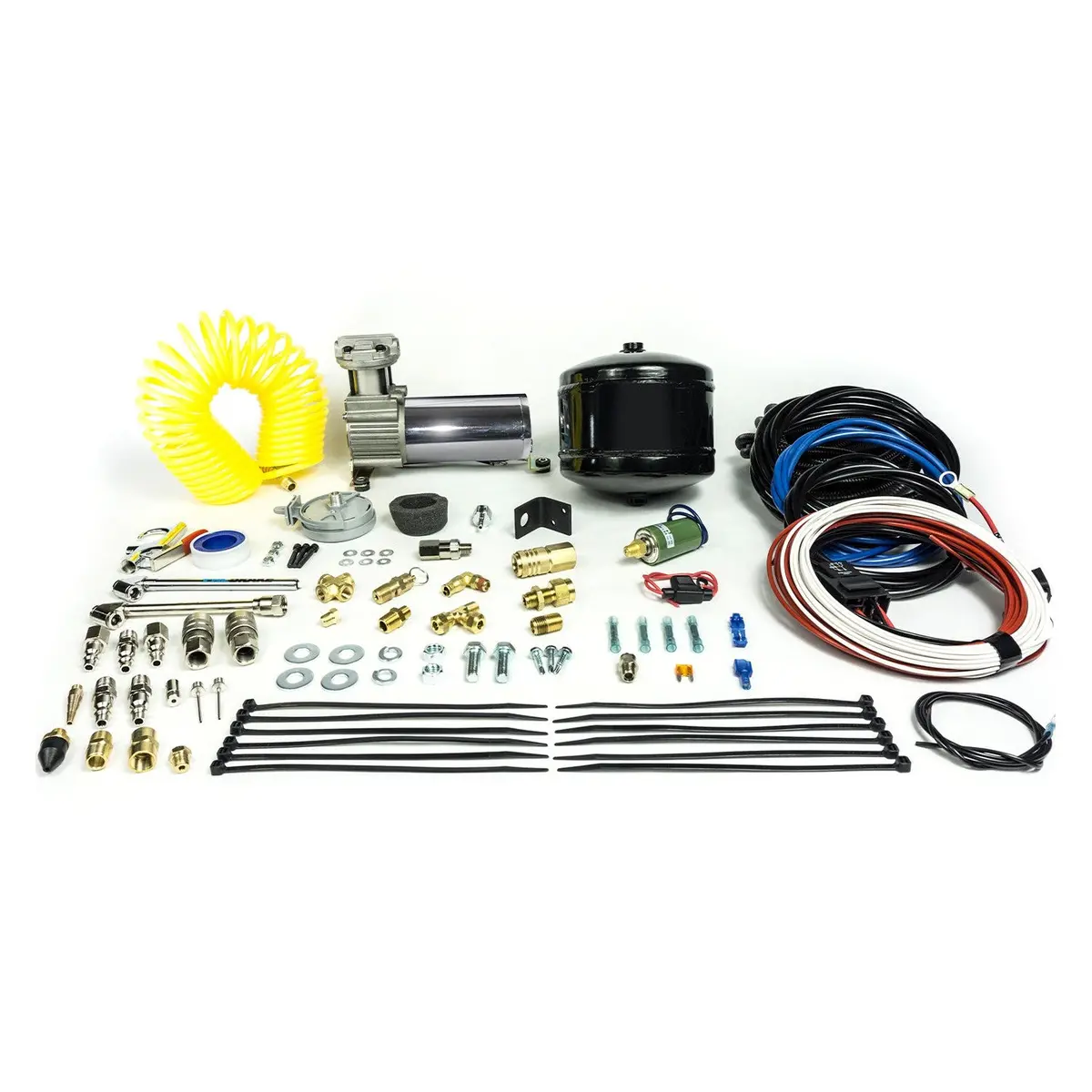

Includes:

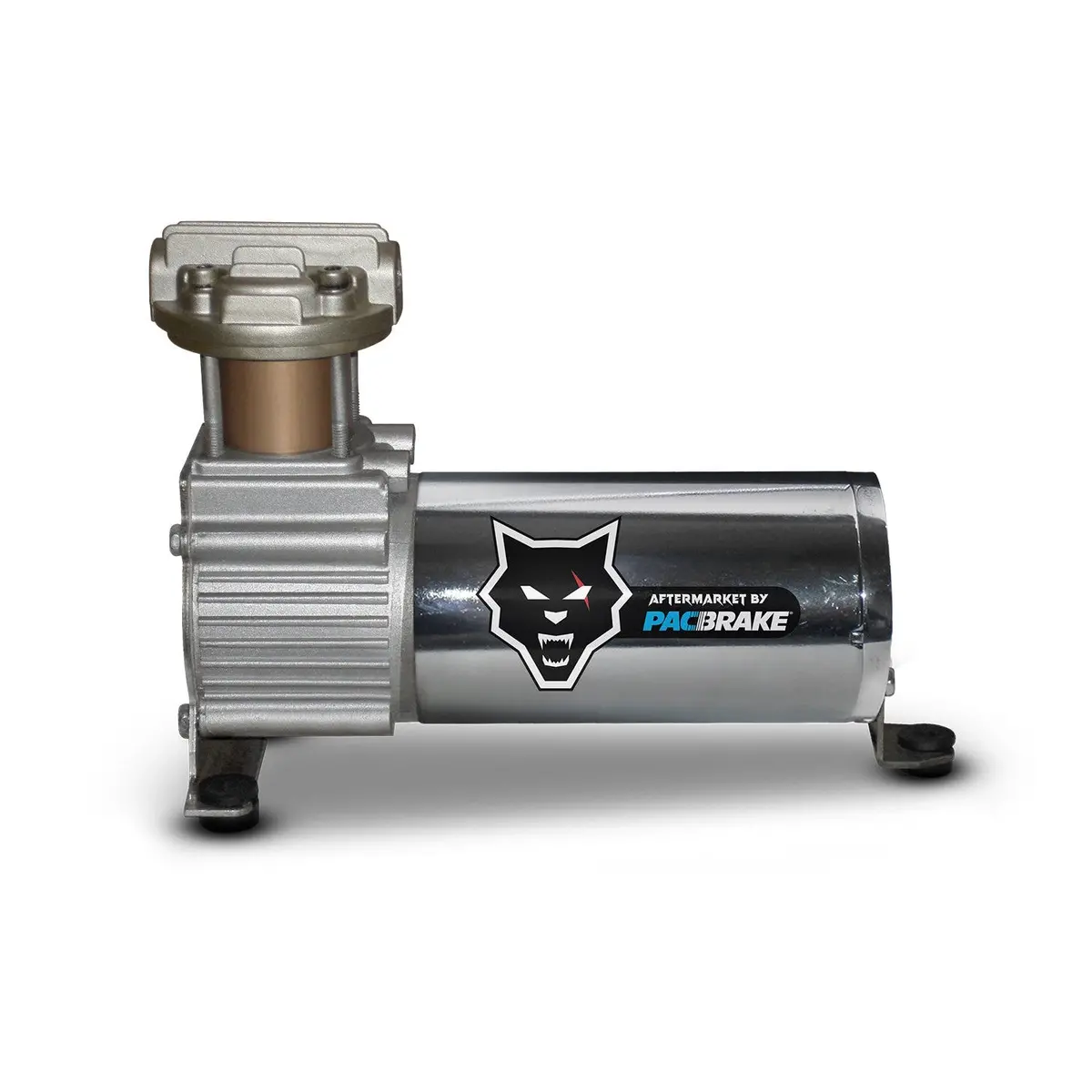

• HP325 Series 12V DC compressor
• ½ Gallon aluminum air tank
• Fittings, pressure switch, relay(s)
• Electrical connectors and all applicable accessories

Compressor Specifications:

• 12 VDC
• 33% (20min at 100 PSI) duty cycle
• 1/4 HP
• 2-1/4 inch NPT ports
• Rust inhibitor applied to the inside of the tank
• Max working pressure 150 PSI
• Size is 6.4 inch x 5.5 inch x 6.5 inch (LxWxH)
• Weight is 3.4 lbs
• Welded on mounting brackets

Installation

• For installation instructions, Please Click Here
