Description

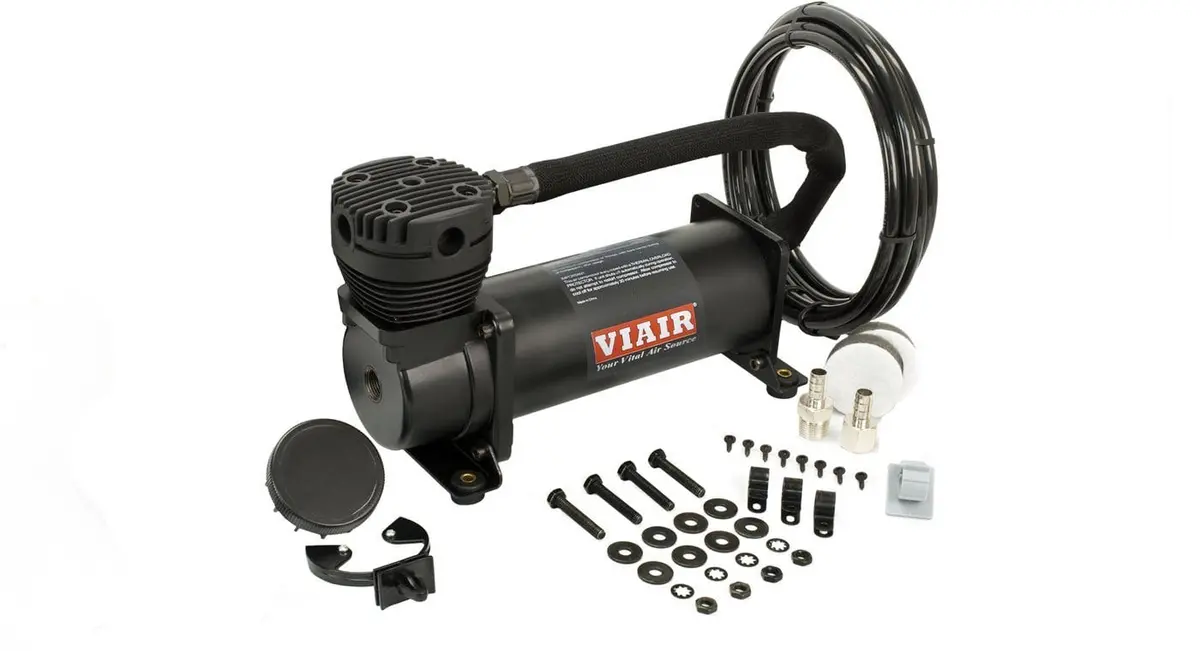

480C is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8” stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring.
| FEATURES |
|---|
| – Thermal Overload Protector |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose |
| – Air Line for Remote Mount Air Filter |
| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. 12V Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.87″L x 4.2″W x 6.75″H |
| – Net Weight: 11.05 lbs. |
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 2 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 57 sec. (± 05 sec.) |
| 0 to 200 PSI | 5 min. 02 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 30 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 6 min. 02 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 55 sec. (± 05 sec.) |
| 0 to 200 PSI | 10 min. 30 sec. (± 15 sec.) |
| 165 to 200 PSI | 3 min. 10 sec. (± 10 sec.) |
