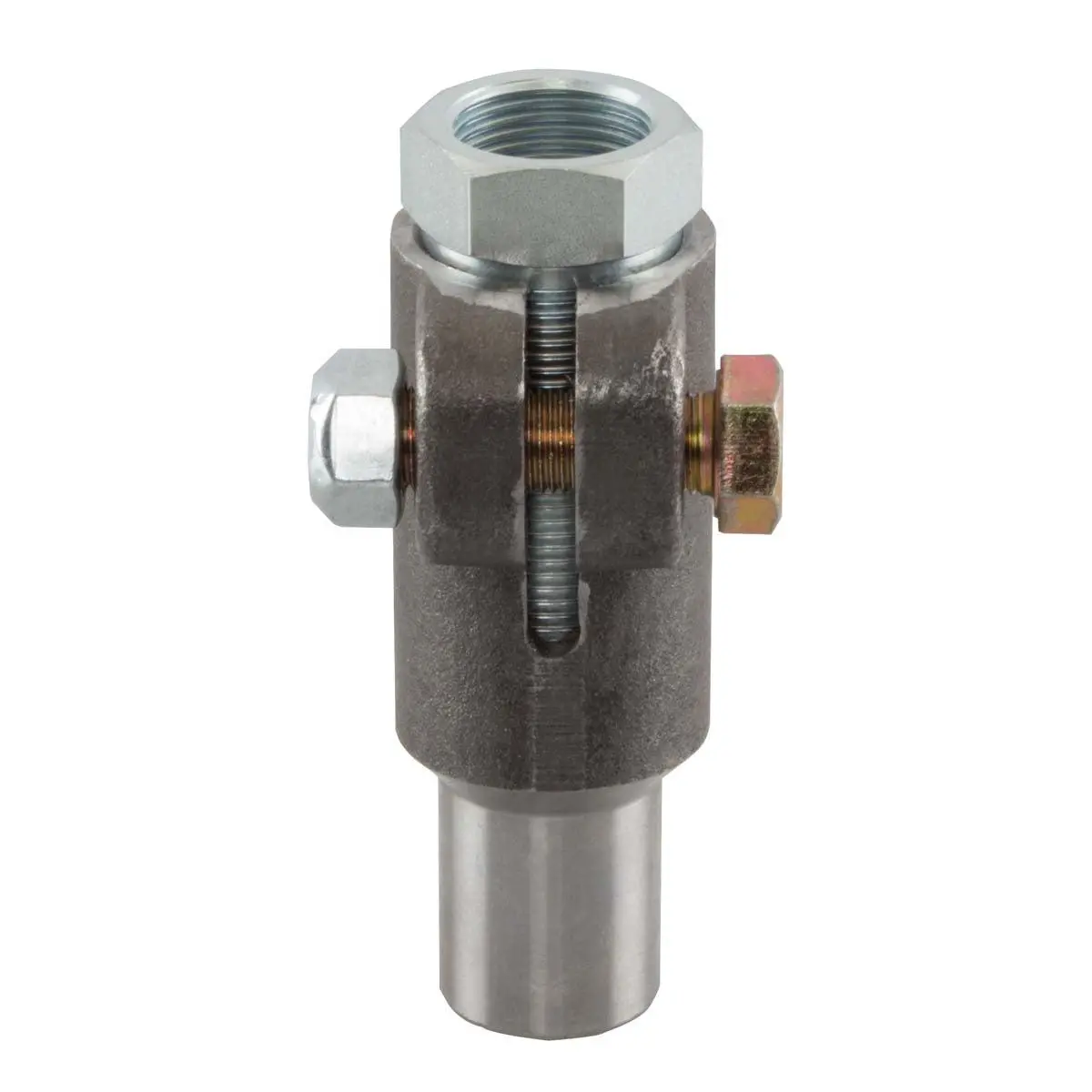

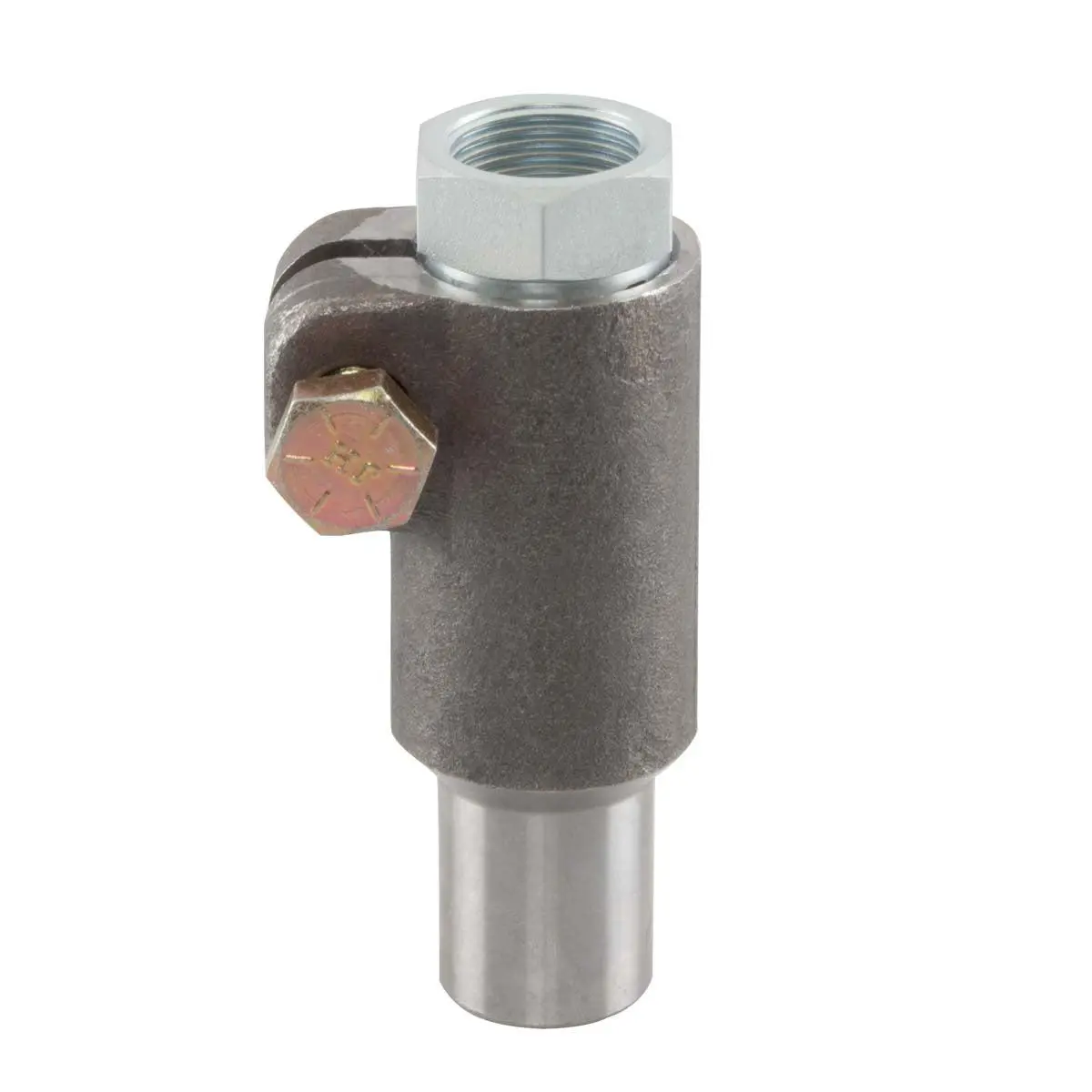

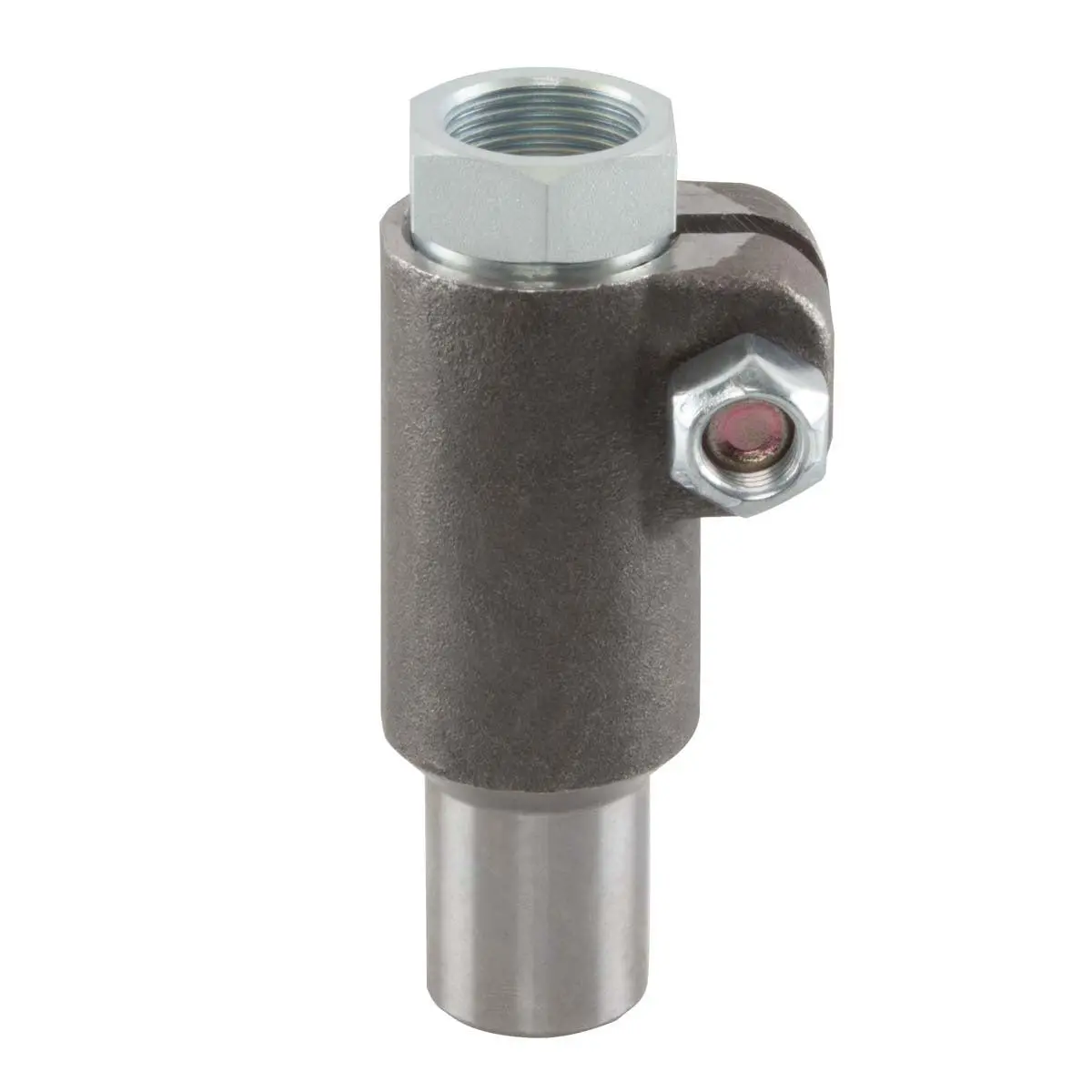

Double-Adjuster Tube Adapter for Precision Suspension Tuning (Universal, Part #3620-070X)

Original price was: $125.21.Current price is: $62.61.

Quantity
SKU: N/A Category: Brand:

Description

Description

Fits: Universal

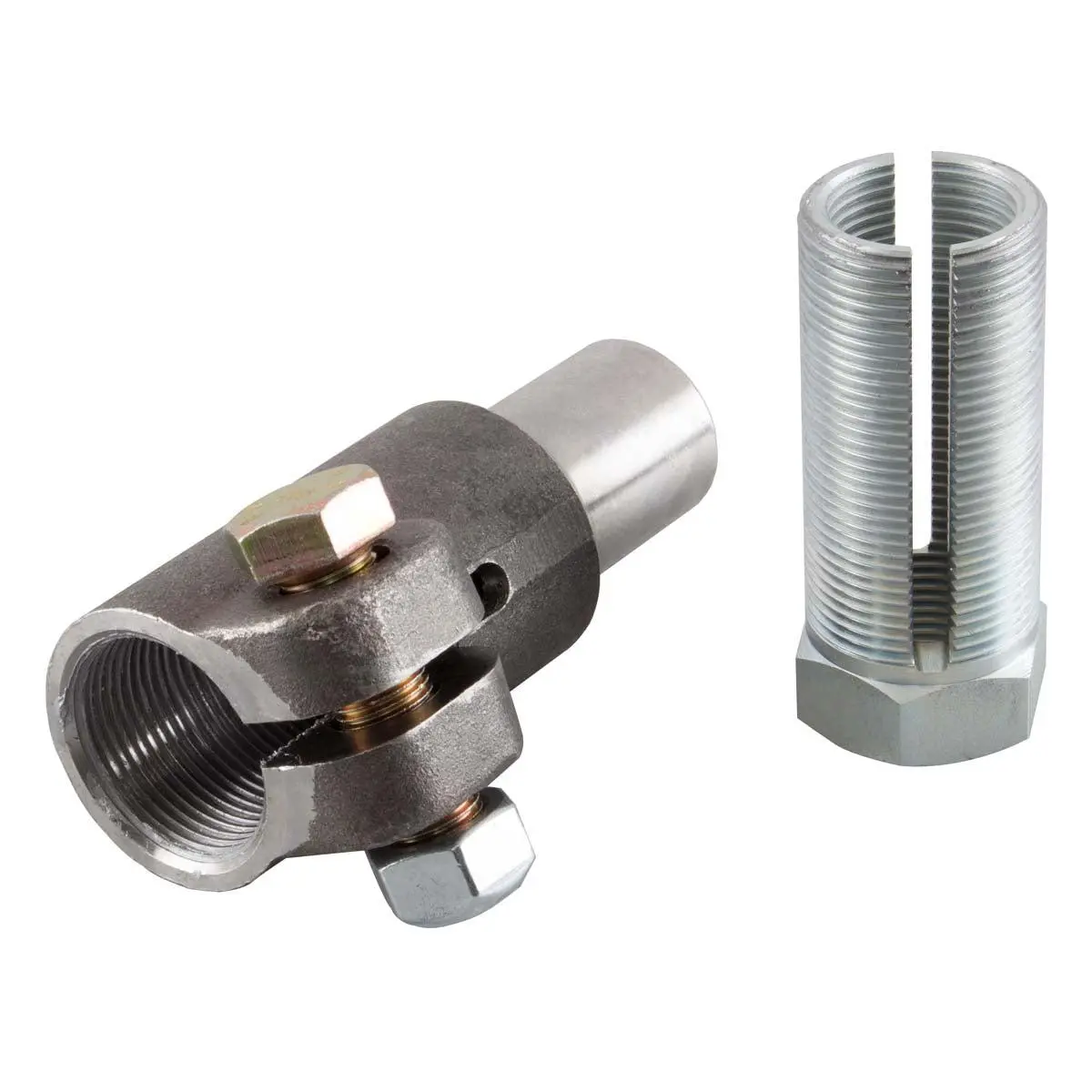

Designed to eliminate the need for jam nuts that are normally used when building link suspension and steering systems, allows the suspension/steering link to be adjusted without removal, & fine-tune the geometry by loosening the pinch bolt and turning the adjuster sleeve.

Part Number: 3620-070X

Features

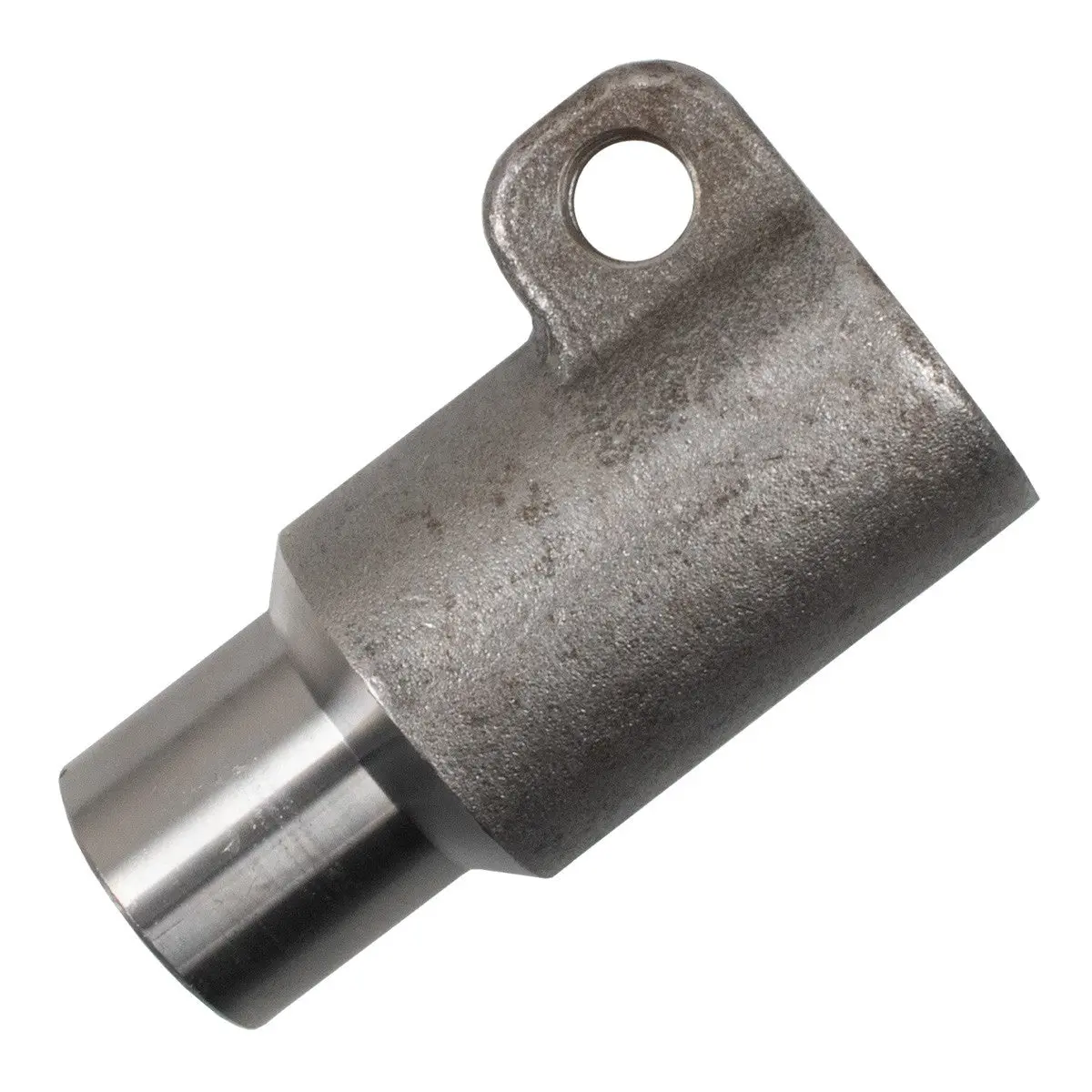

  • Tube adapters are forged from high-strength SAE AISI 1045 steel

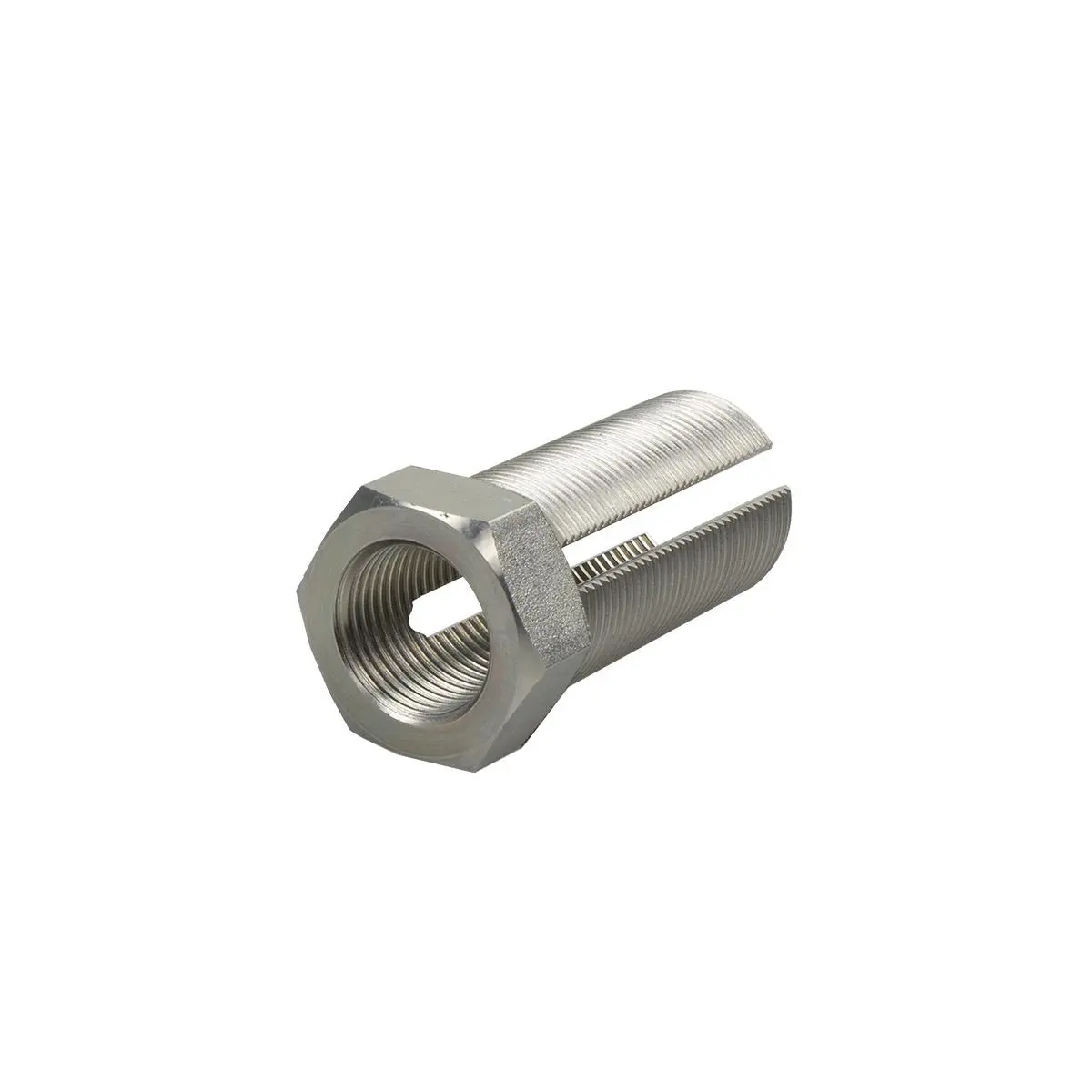

  • Double adjusters are machined from ultra-tough 1144 stress-proof steel
  • Durable Zinc-plated Double Adjuster Sleeves
  • Versatile weld-on application
  • Grade 8 hardware

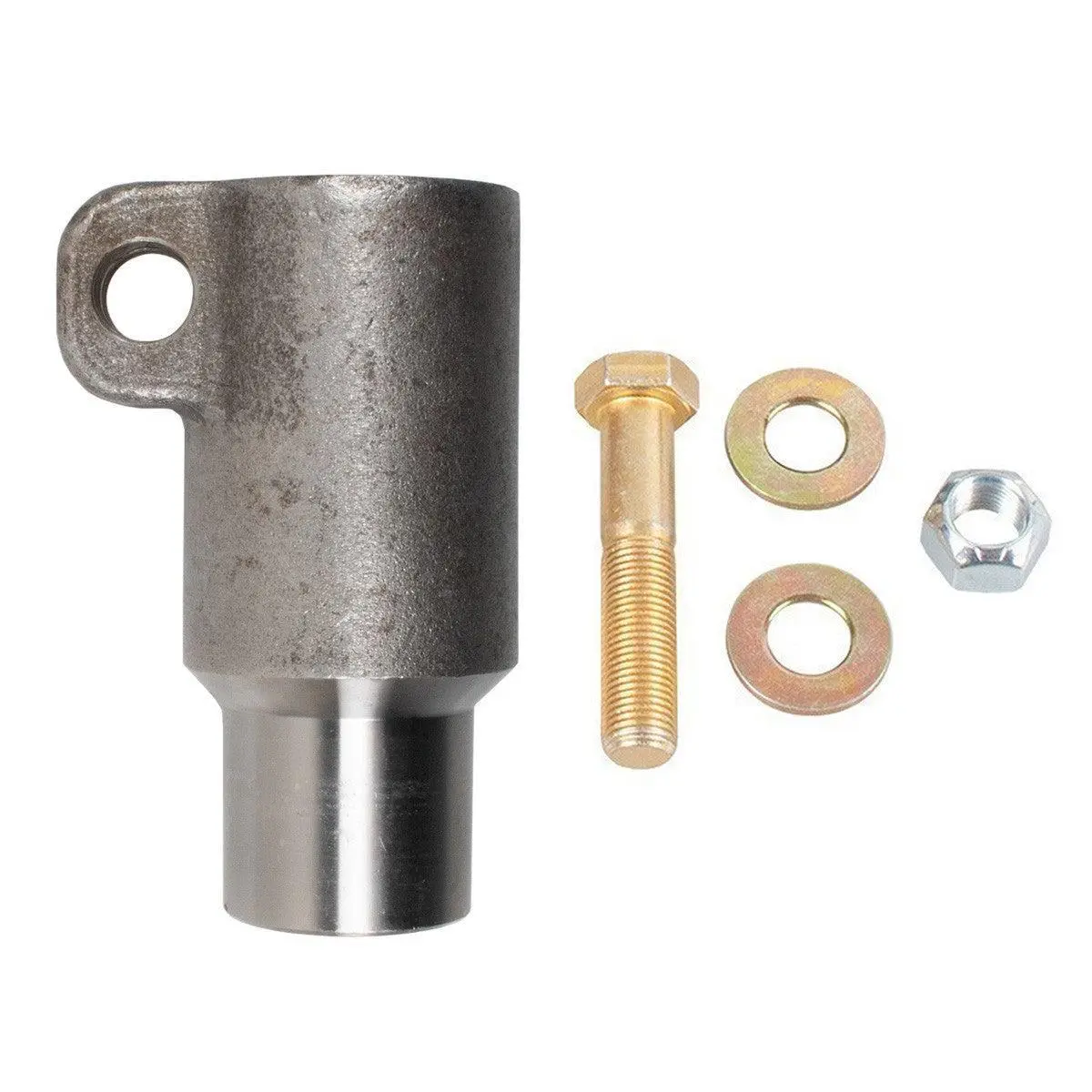

Includes:

  • (1) Forged Pinch Bolt Tube Adapter
  • (1) Zinc Plated Double Adjuster Sleeve
  • (1) Pinch Bolt Hardware Kit
  • All Adjusters Use A Left-Hand Threaded Rod End or Johnny Joint
Notes
  • All Adjusters Use A Left-Hand Threaded Rod End or Johnny Joint
  • It is recommended all welding be done by an experienced welder/fabricator
Additional Fitment

Fitment

Part # Useable Thread Size Forging OD (Inches) For Tube ID (Inches) Double Adjuster Sleeve
3620-0701 7/8″ – 14 UNF-2B Left Hand Thread 1.56″ 1.00″  3622-07-14L-PL
3620-0702 7/8″ – 18 UNS-2B Left Hand Thread 1.56″ 1.00″  3622-07-18-PL
3620-0703 7/8″ – 14 UNF-2B Left Hand Thread 1.56″ 1.125″  3622-07-14L-PL
3620-0704 7/8″ – 18 UNS-2B Left Hand Thread 1.56″ 1.125″ 3622-07-18-PL
3620-0801 1″ – 14 UNS-2B Left Hand Thread 1.56″ 1.125″ 3622-10-14-PL
3620-0802 1″ – 14 UNS-2B Left Hand Thread 1.56″ 1.00″ 3622-10-14-PL
3620-1001 1-1/4″ – 12 UNF-2B Left Hand Thread 1.81″ 1.375″ 3622-12-12-PL
3620-1002 1-1/4″ – 12 UNF-2B Left Hand ID Thread 2.00″ 1.50″ 3622-12-12-PL

      Specifications

      Part # A B C D E Thread Length
      3620-0701 1.00″ 3.50″ 2.50″ 1.56″ 2.28″ 1.69″
      3620-0702 1.00″ 3.50″ 2.50″ 1.56″ 2.28″ 1.69″
      3620-0703 1.125″ 3.50″ 2.50″ 1.56″ 2.28″ 1.69″
      3620-0704 1.125″ 3.50″ 2.50″ 1.56″ 2.28″ 1.69″
      3620-0801 1.125″ 4.13″ 2.88″ 1.56″ 2.28″ 1.88″
      3620-0802 1.00″ 4.02″ 2.77″ 1.56″ 2.28″ 1.88″
      3620-1001 1.375″ 4.25″ 3.00″ 1.81″ 2.56″ 1.88″
      3620-1002 1.50″ 4.25″ 3.00″ 2.00″ 2.70″ 1.88″

      Explore more from our collection.

      Additional information

      Part Number

      7/8" – 14 UNF-2B Left Hand Thread/OD-1.56"/ID-1.00", 7/8" – 18 UNS-2B Left Hand Thread/OD-1.56"/ID-1.00", 7/8" – 14 UNF-2B Left Hand Thread/OD-1.56"/ID-1.125", 7/8" – 18 UNS-2B Left Hand Thread/OD-1.56"/ID-1.125", 1" – 14 UNS-2B Left Hand Thread/OD-1.56"/ID1.125", 1" – 14 UNS-2B Left Hand Thread/OD-1.56"/IC-1.00", 1-1/4" – 12 UNF-2B Left Hand Thread/OD-1.81"/ID-1.375", 2 1-1/4" – 12 UNF-2B Left Hand ID Thread/OD-2.00"/ID-1.50"
