Fits: Universal

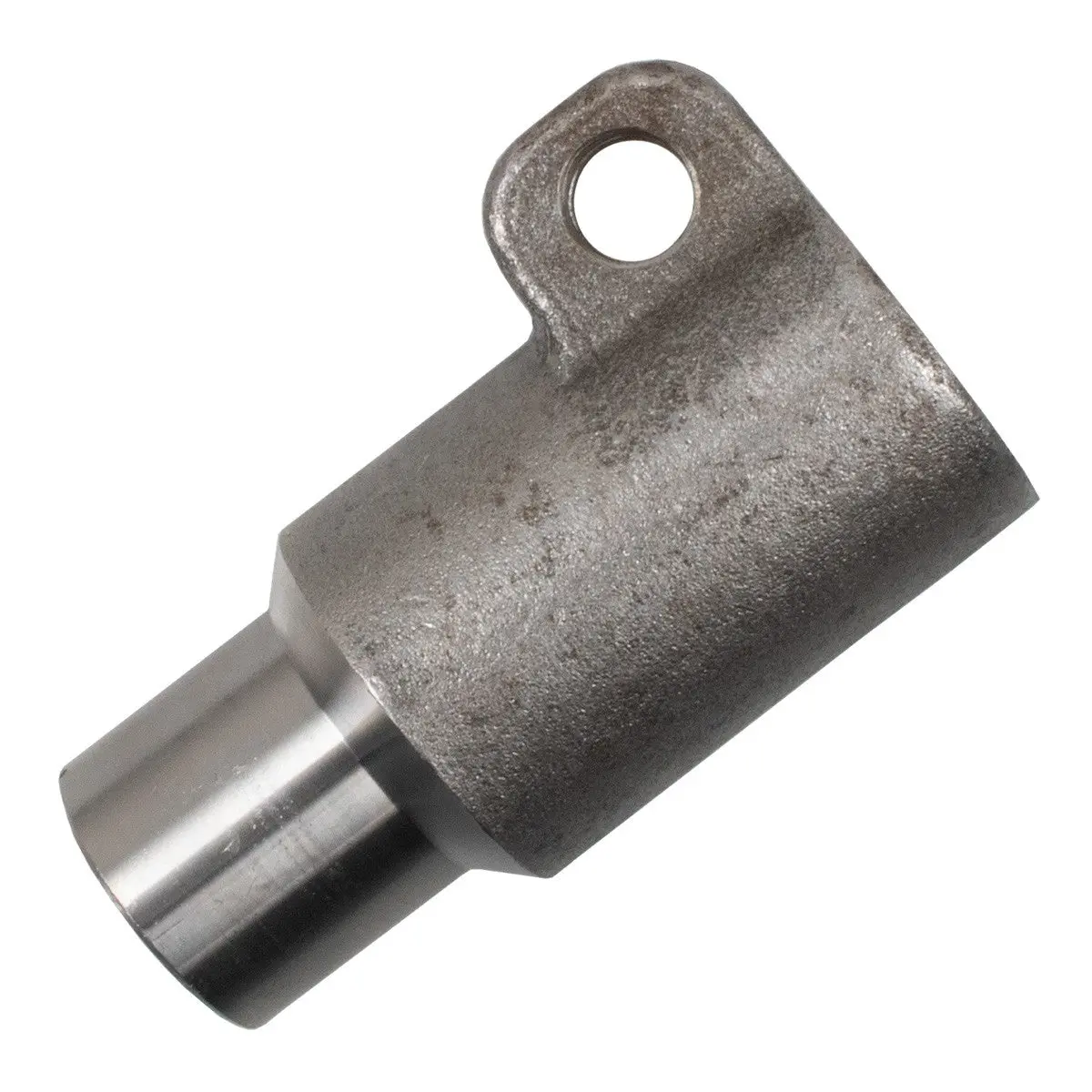

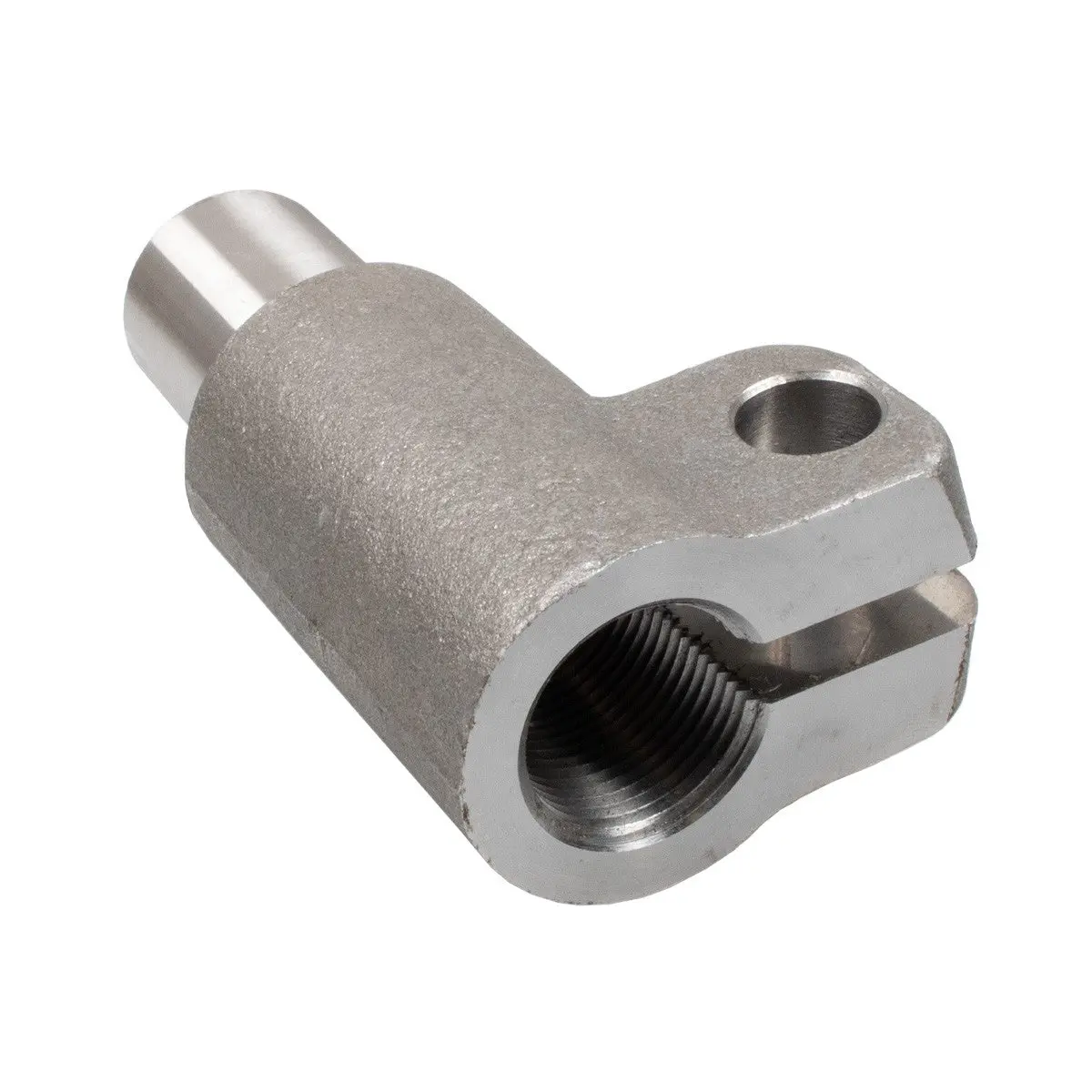

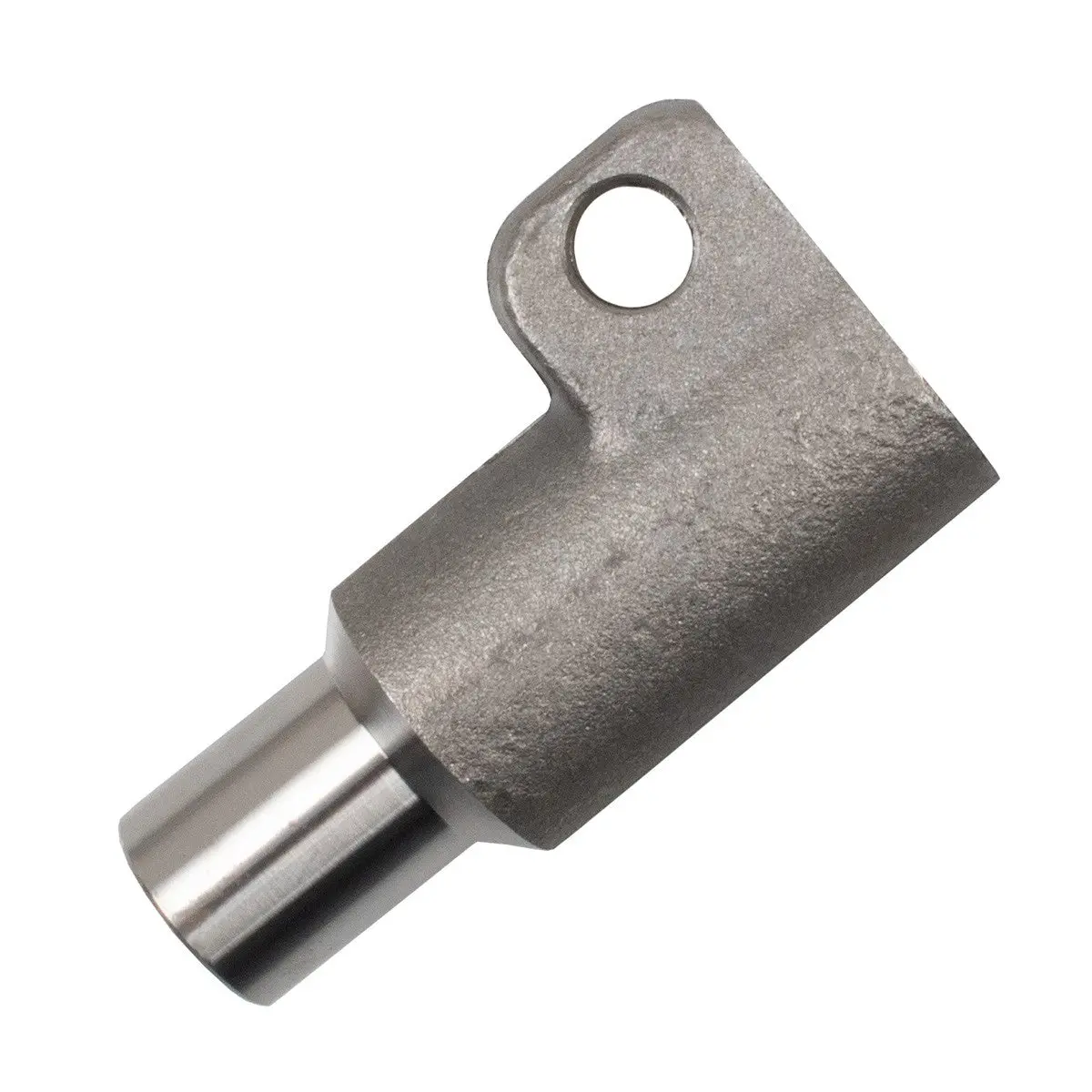

Synergy Weld-In Forged Tube Adapters eliminate the need for tap sets and jam nuts. Designed for heavy-duty rod ends, they offer a strong, reliable solution for custom steering and suspension fabrication. Engineered to withstand aggressive driving conditions.
Part Number: 3620-XXXX
Features
- Tube adapters are forged from high-strength SAE AISI 1045 steel
- Ideal for fabricating bent suspension links or adjustable bars with one rod end
- Synergy Pinch Bolt Assembly eliminates the need for jam nuts
- Durable Zinc-plated Double Adjuster Sleeves
- Versatile weld-on application
- Grade 8 hardware

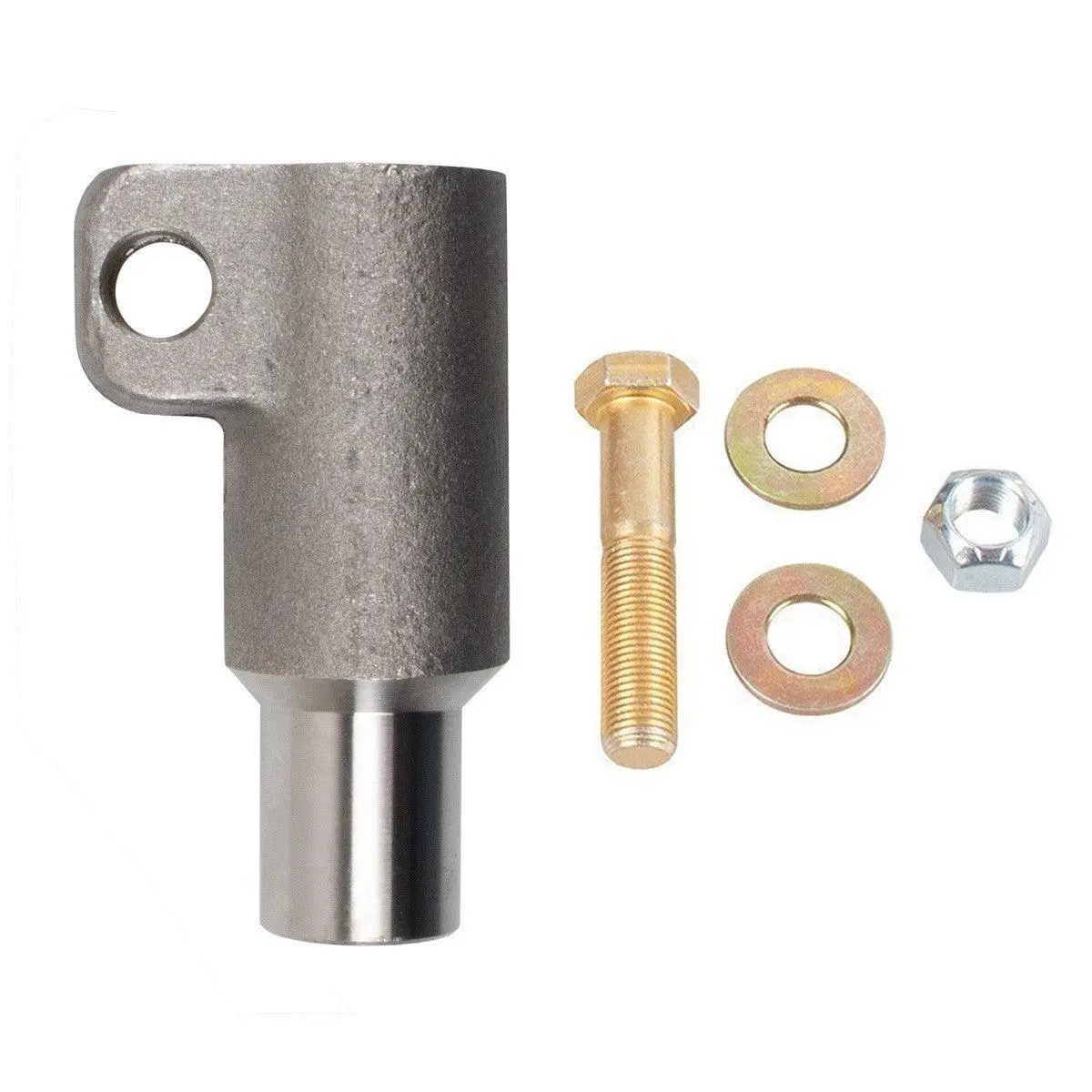

Includes:
- (1) Forged Pinch Bolt Tube Adapter
(1) Pinch Bolt Hardware Kit
Notes
- All Synergy Double Adjusters utilize an internal left-hand thread compatible with all Synergy left-hand thread forged ends with Dual Durometer Bushings, Johnny Joints, or heim joints
- Replacement hardware available with part number PINCHBOLT-HDW-DOUBLE
- Synergy recommends all welding be done by an experienced welder / fabricator
Additional Fitment
Fitment:
| Part # | Useable Thread Size | For Tube ID (Inches) |
|---|---|---|
| 3621-0701 | 7/8″ – 14 UNF-2B Left Hand Thread | 1.125″ |
| 3621-0801 | 1″ – 14 UNS-2B Left Hand Thread | 1.00″ |
| 3621-0802 | 1″ – 14 UNS-2B Left Hand Thread | 1.125″ |
| 3621-1001 | 1-1/4″ – 12 UNF-2B Left Hand Thread | 1.375″ |
| 3621-1002 | 1-1/4″ – 12 UNF-2B Left Hand ID Thread | 1.50″ |
Specifications:
| Part # | A | B | C | D | E | Thread Length |
|---|---|---|---|---|---|---|
| 3621-0701 | 1.125″ | 3.50″ | 2.50″ | 1.56″ | 2.28″ | 1.30″ |
| 3621-0801 | 1.00″ | 4.02″ | 2.77″ | 1.56″ | 2.28″ | 1.50″ |
| 3621-0802 | 1.125″ | 4.13″ | 2.88″ | 1.56″ | 2.28″ | 1.88″ |
| 3621-1001 | 1.375″ | 4.25″ | 3.00″ | 1.81″ | 2.56″ | 1.88″ |
| 3621-1002 | 1.50″ | 4.25″ | 3.00″ | 2.00″ | 2.70″ | 1.88″ |
