Leveling Kit Designed for 2014 and Newer Cummins-Powered Vehicles (Part #8750-10)

Description

Description

Fits

Year	Make	Model	Engine
2014+	Ram	2500/3500	6.7L Cummins

Note: Does not fit trucks with rear air ride suspension.

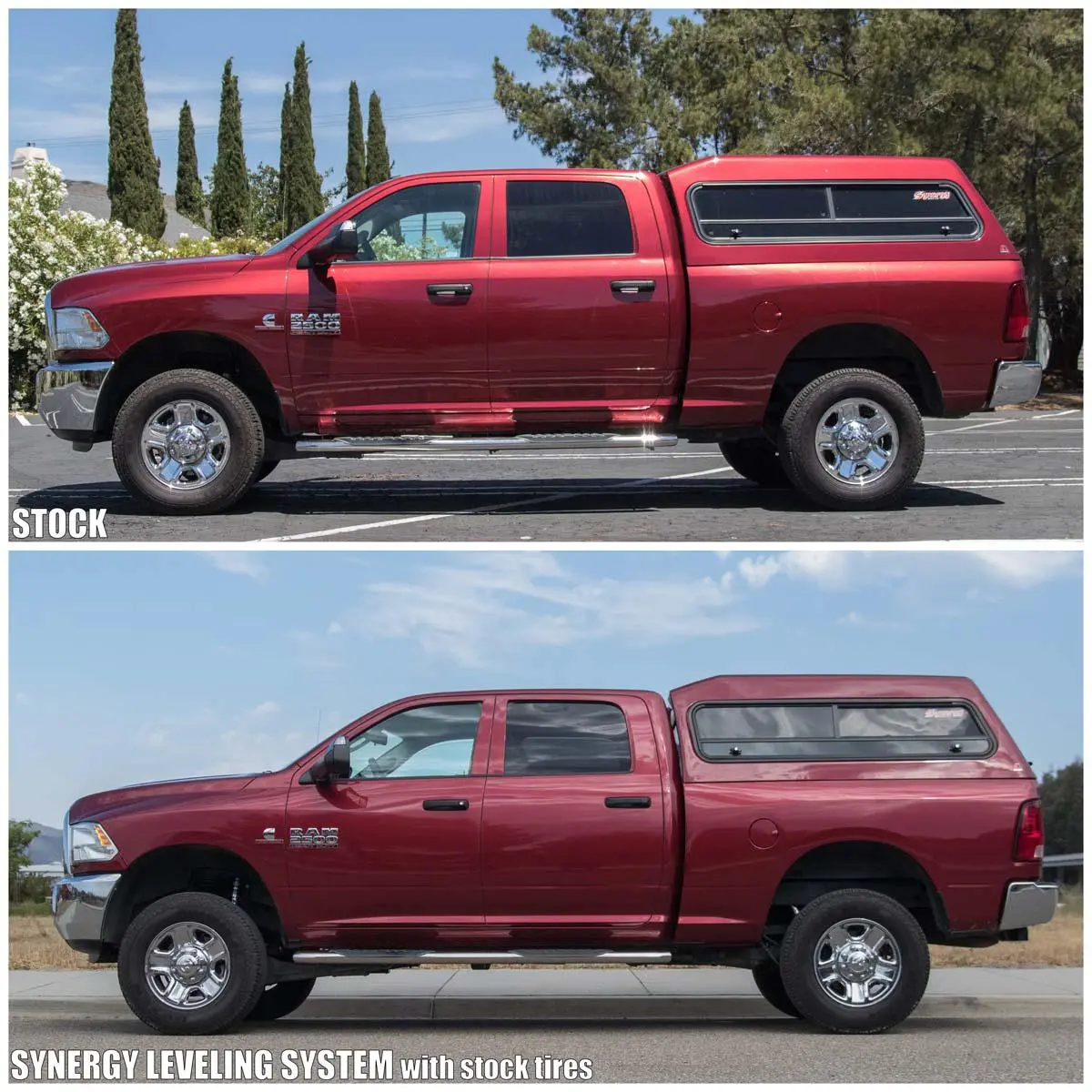

The Synergy Ram Truck Leveling System levels the stance of the truck and significantly improves ride quality and control with no loss in towing capacity. Proprietary Synergy Tuned Fox shocks have been paired with matched coil springs to create a system that significantly outperforms the competition.

Part Number: 8750-10/8750-11

Features

• Proprietary Synergy Tuned Fox Shocks matched to Ram’s spring rates and weight provide incredible ride quality and control.
• Front-wheel travel is increased 40% from 7″ to 10″ and rear wheel travel is increased from 8.5″ to 10″ on 2500 trucks and from 6.5″ to 10″ on 3500 trucks.
• Progressive wound linear coil springs are manufactured using the latest in CNC hot winding technology for optimized on and off-road performance.
• Coil springs are softer than stock and raise the front of the truck 2.25″ based on the weight of a 2500 Diesel Crew Cab configuration.
• Coil springs are cycled to set height and can compress to solid without overstressing.
• Coil springs feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance.
• Raises the front suspension to level the truck
• Increases ride comfort and control
• Increases small bump compliance and bottom-out resistance
• Increases wheel travel
• No loss in towing capacity
• Will allow installation of 35″ or 37″ tires
• Affordable Quality, made in the USA

Includes:

• 2- Front Coil Springs
• 2- Synergy Tuned Front Shocks
• 2- Synergy Tuned Rear Shocks

Installation

• Click Here

Notes

• Does NOT fit trucks with Rear Air Ride
• This basic leveling system can be further upgraded with additional components available from Synergy.
• An HD adjustable track bar is available to re-center the front axle under the vehicle, Radius Arm Drop Brackets are available to correct the radius arm geometry
• An HD replacement steering is available to replace the weak and problematic stock drag link and tie rod
• The use of MOPAR upper isolator 68268825AA is recommended. This is the factory Power Wagon unit and has thicker material to better hold up and eliminate spring bowing.
• This system is designed to fit 35″ tires. 37″ tires will fit with minor inner fender trimming.
