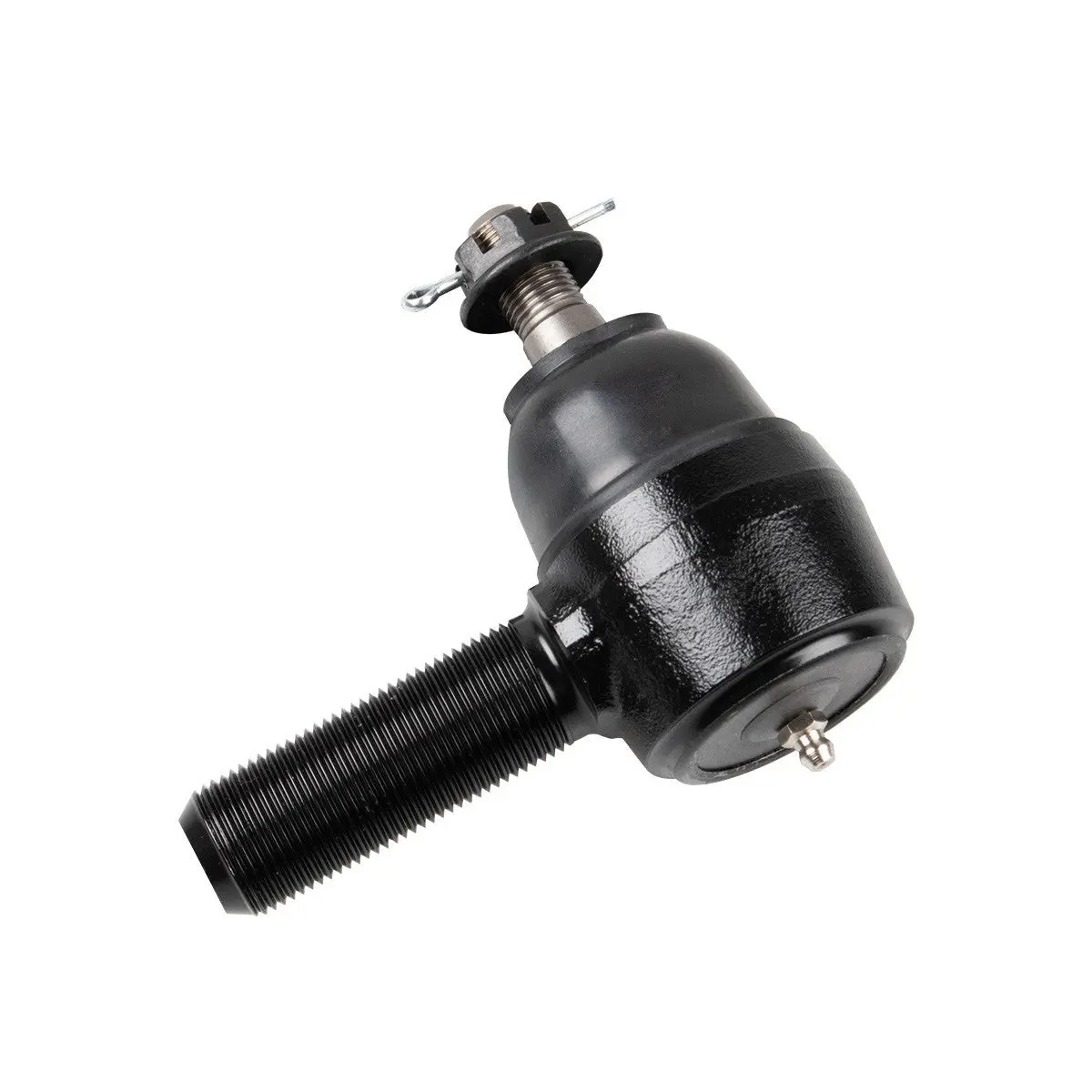

Replacement Tie Rod End for 1994–2014 Cummins Diesel Trucks

Description

Description

Fits

Note: HD w/ 8525-01 or 8725-01.

*This part does NOT fit a 2007.5 Cummins

Part Number: 4133-L, 4134-L, 4136-L, 4138-L,  4160-L, 4167-L,4168-L & 4169-L

Features

• Fully greaseable sintered metal on metal bushing design has high wear resistance
• Specially designed grease grooves in the OD of the ball allow for maximum lubrication
• Spring-loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
• Forged bearing housing made from 1018 steel for a strong, smooth, bearing surface
• Tie Rod End stud made from 4140 steel with an induction heat-treated bearing surface for smooth operation and maximum life
• Outperforms the factory and all other aftermarket style tie rod ends by offering: A larger shank with no stress riser (doesn’t neck down at base), Elimination of the nylon ball race

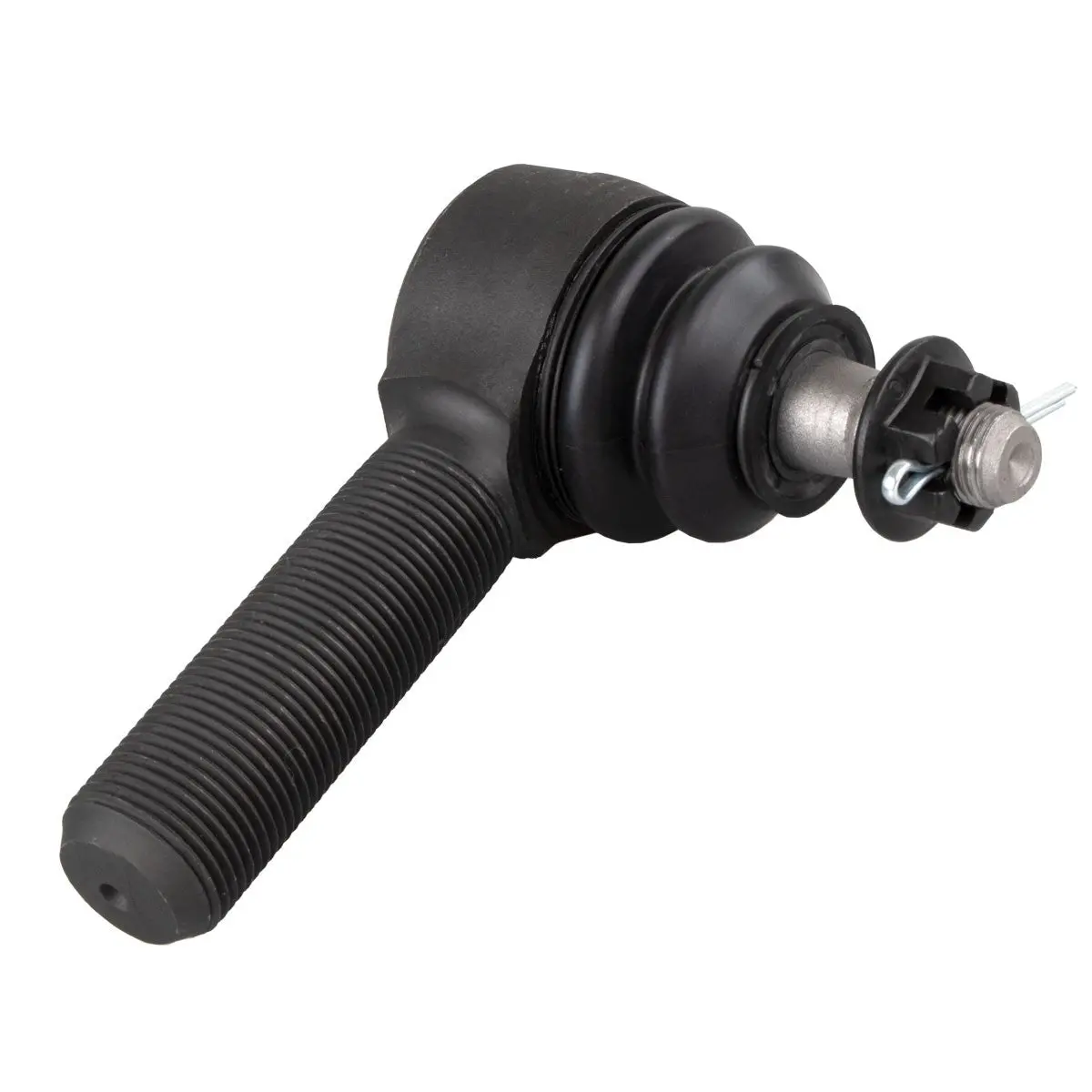

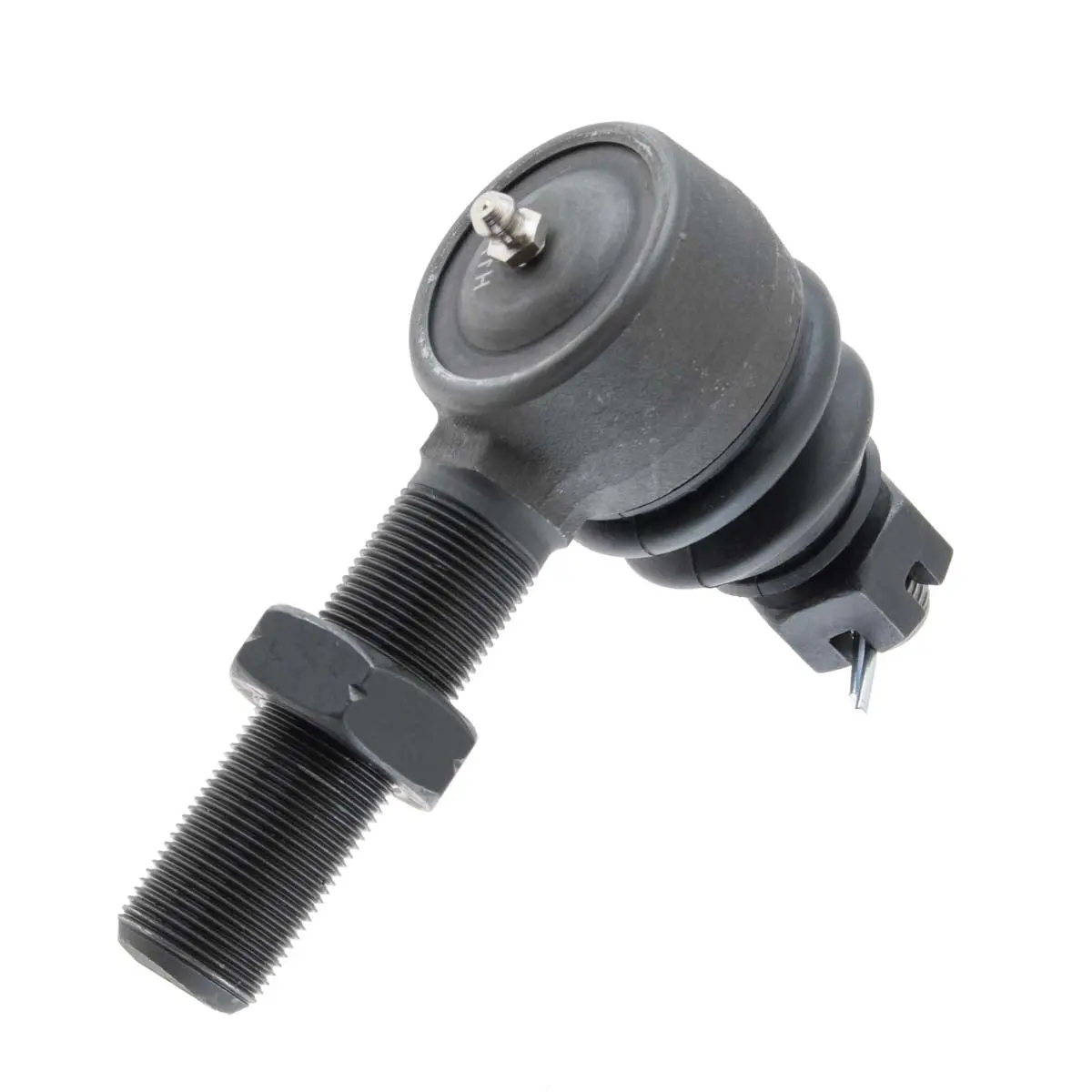

• Boots are made from tear/wear-resistant black NBR and come with retaining springs. (4133-L, 4136-L, 4138-L, and 4160-L only.)

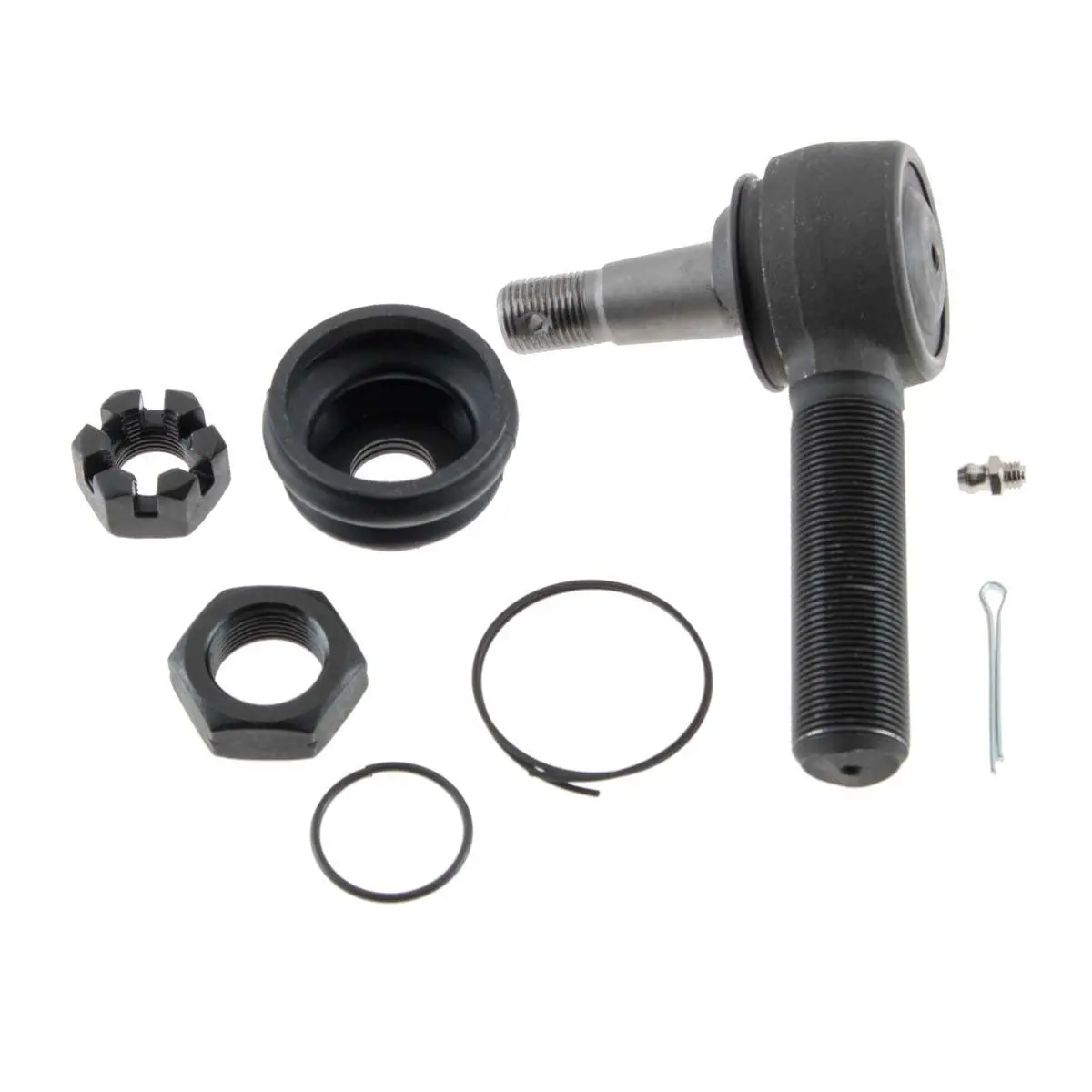

• Includes all necessary hardware for installation
• 1-14 UNF LH Thread

Additional Info

• 4134-L
  • 1-14 Left Hand
  • 1:6 TAPER (9.5 DEG INCL ANGLE)
  • Standard
• 4136-L
  • 1-14 Left Hand
  • 1:8 TAPER (7.125 DEG INCL ANGLE)
  • Standard
• 4160-L
  • 1-14 Left Hand
  • 1:8 TAPER (7.155 DEG INCL ANGLE)
  • Single Plane
• 4133-L
  • 1-14 Left Hand
  • 1:8 TAPER (7.125 DEG INCL ANGLE)
  • Standard
• 4138-L
  • 1 1/4-12 Left Hand
  • 1:6 TAPER (9.52 DEG INCL ANGLE)
  • Standard
• 4167-L
  • 1-14 Left Hand UNF Thread
  • 1:6 TAPER (9.52 DEG INCL ANGLE)
  • Single Plane
• 4168-L
  • 1 1/4-12 Left Hand UNF Thread
  • 1:6 TAPER (9.52 DEG INCL ANGLE)
  • Single Plane

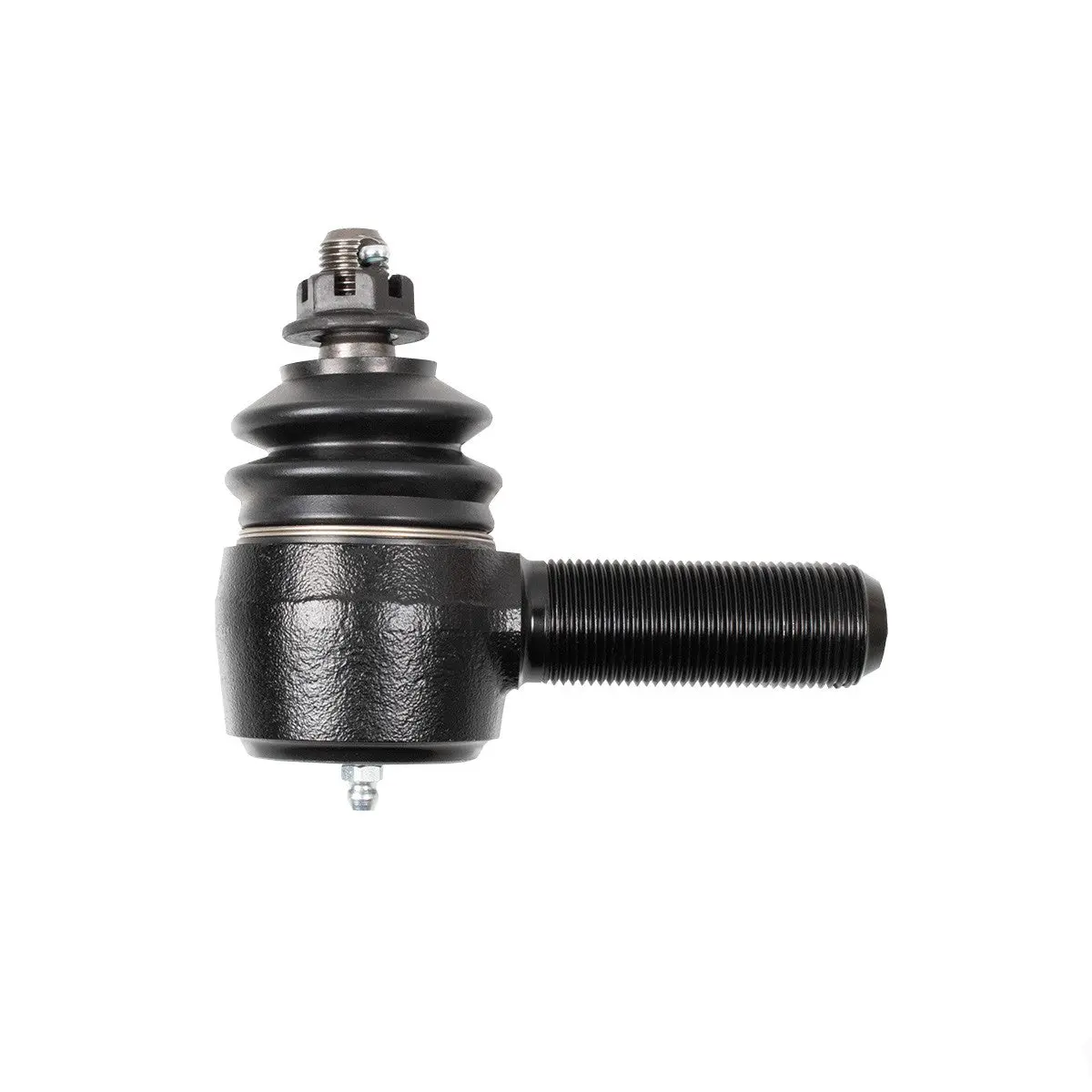

• 4169-L
  • 1-14 Left Hand UNF Thread
  • 1:8 TAPER (7.125 DEG INCL ANGLE)
  • Single Plane

Notes

• These are REPLACEMENT Tie Rod Ends for the Synergy Steering Kits ONLY
• Synergy High-Performance Grease (4119) is the recommended grease for this product
• 4133-L, 4136-L, 4138-L, and 4160-L are the only options that come with black NBE & retaining springs

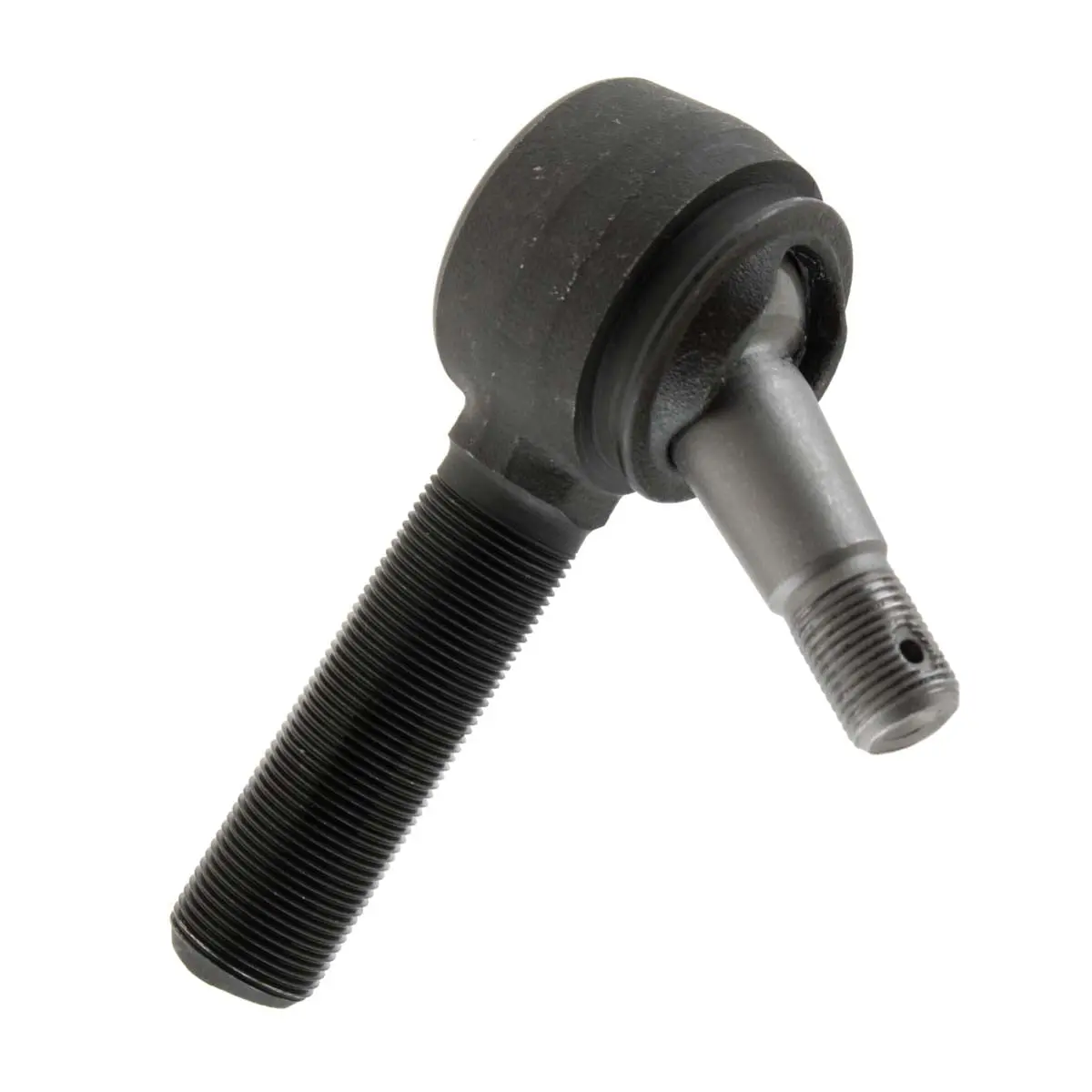

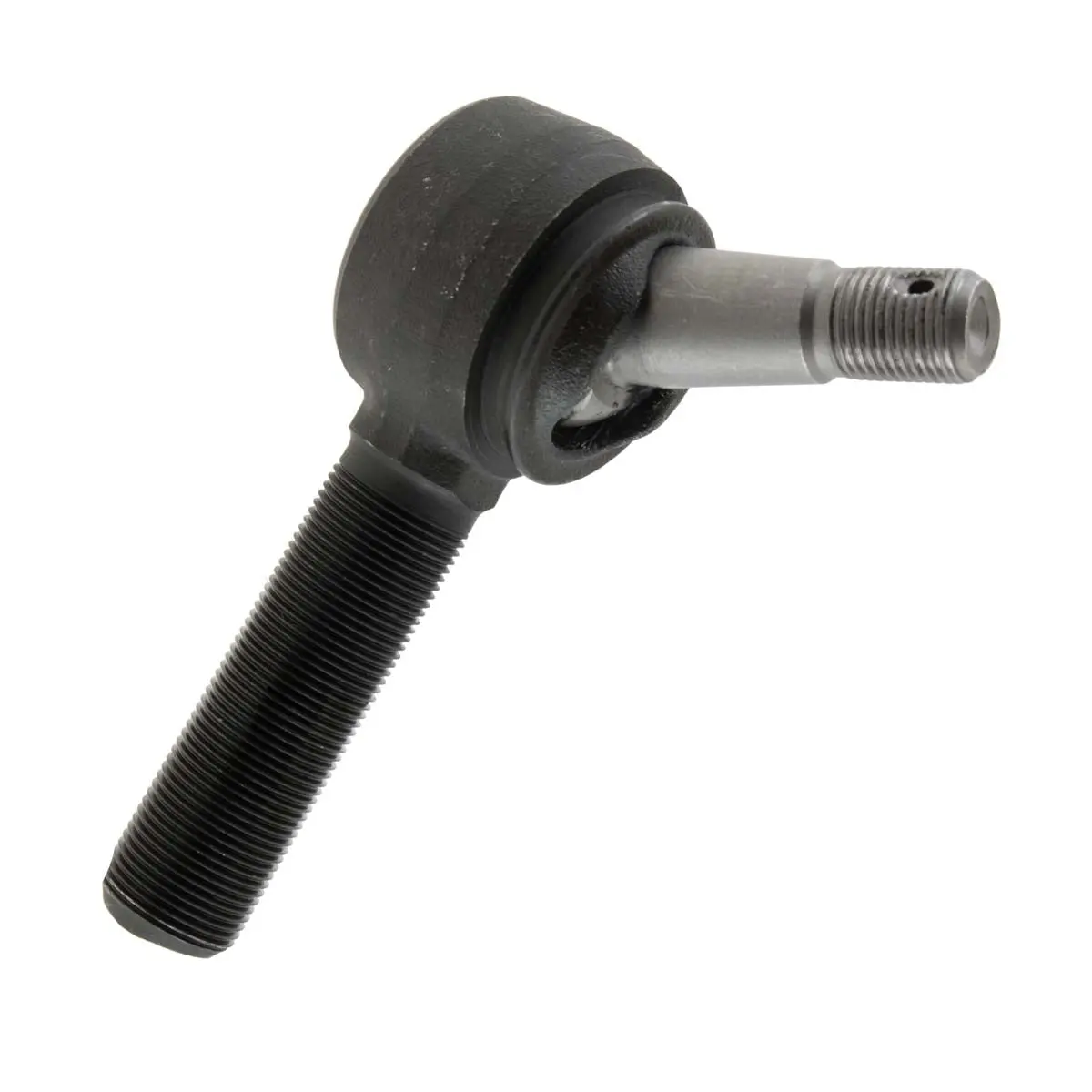

• 4134-L does not include a dust boot.
• 4134-L low misalignment boot available separately, 4134-02
• New single plane tie rod ends now included with all 1994 – present tie rods – part numbers 4167-L, 4168-L, 4169-L
  • Single plane tie rod ends are not compatible with the metal misalignment caps – part number 4134-02
  • If upgrading to the new single plane tie rod end on older model tie rods for these model years, the opposing tie rod end will require a new poly boot part number 4131-01
  • If the cotter pin does not engage the castle nut upon install, a washer is required; Washer may not be required on all knuckles depending on casting differences and wear
• Current Tie Rod Ends are backwards compatible with all old model Synergy Ram steering
• Synergy Ram Heavy Duty Replacement Tie Rod Ends are not compatible with OEM steering
• This part will NOT fit a 2007.5 Cummins
