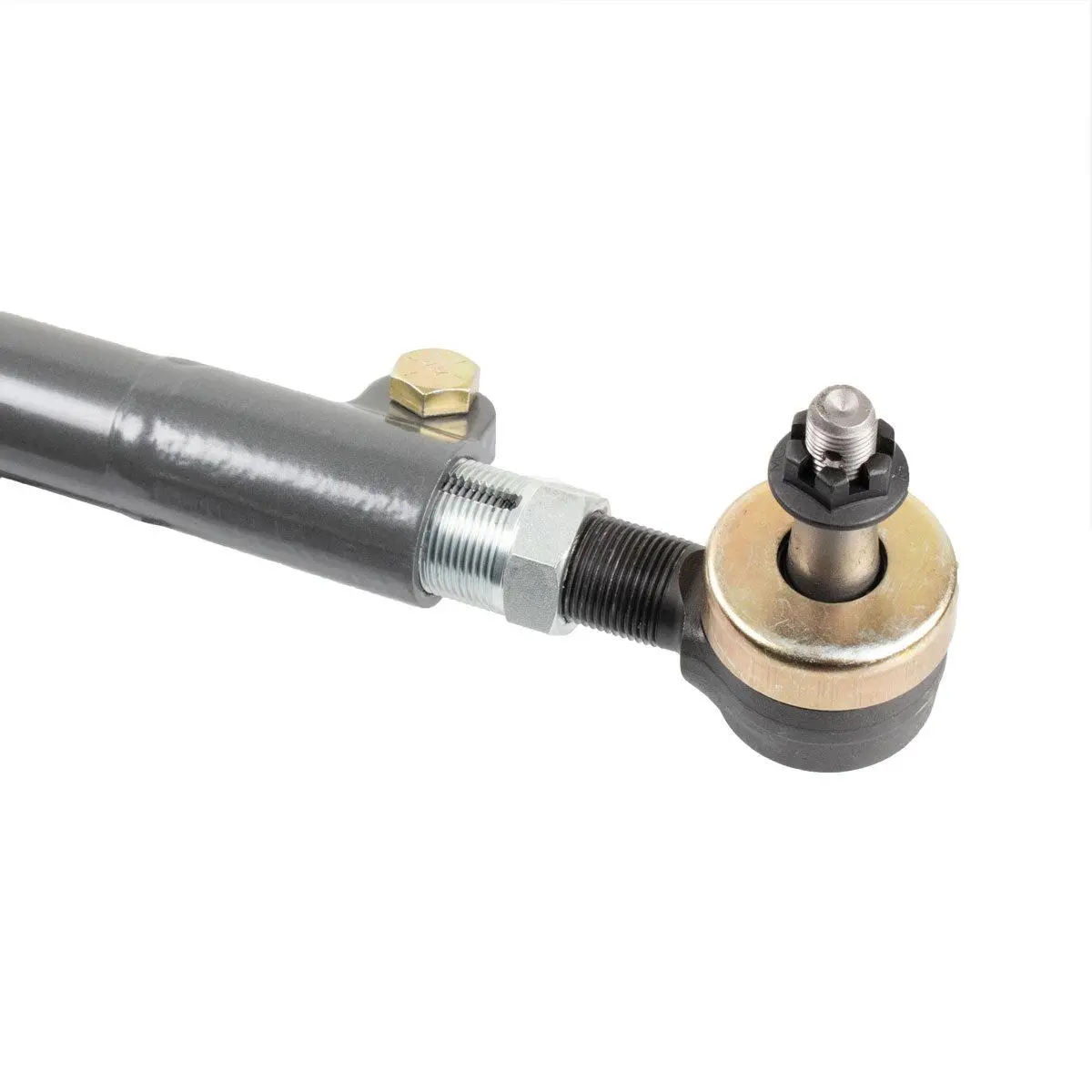

1994–2002 Cummins Heavy-Duty Tie Rod Assembly (8568-2X)

Description

Description

Fits

The Synergy Heavy Duty Tie Rod is a direct bolt-on upgrade for Cummins trucks, requiring no drilling. It uses the factory T-style steering design to prevent toe-change and bump steer, offering reliable and precise steering. For best results, pair it with the heavy duty drag link steering stabilizer mount kit, and Synergy tuned IFP stabilizer (6401-01).

Part Number: 8568-23/8568-22

Superseded Part Number: 8568-03/8568-02

Features

• Tie Rod is bent to clear sway bar mounts and steering pitman arm
• Provides 2″ of additional ground clearance from stock tie rod
• Made from 1-1/2″ x .188 wall 4130 Chromoly and Heat Treated for maximum strength – 200% stronger than stock tie rod
• Synergy Double Adjuster Sleeve: allows adjustment of tie rod length without removing it from the vehicle
• Suspension components feature an abrasive-resistant powder coat finish for maximum durability and corrosion resistance
• 100% bolt-on components assure an easy, trouble-free installation with the use of basic hand tools
• Tie Rod comes with Synergy HD metal-on-metal tie rod ends, 4136-L

Installation

• Click Here

Notes

• 98-99 trucks that originally came with T-Style Steering (Where the tie rod connects to both knuckles) must use the pitman arm from 94-97 trucks, stamped TRW-246

Additional Info

• Min/max Measurements:
  Measured from center of mounting point to center of mounting point
  • Minimum – 59.75″
  • Maximum – 62″
