Description

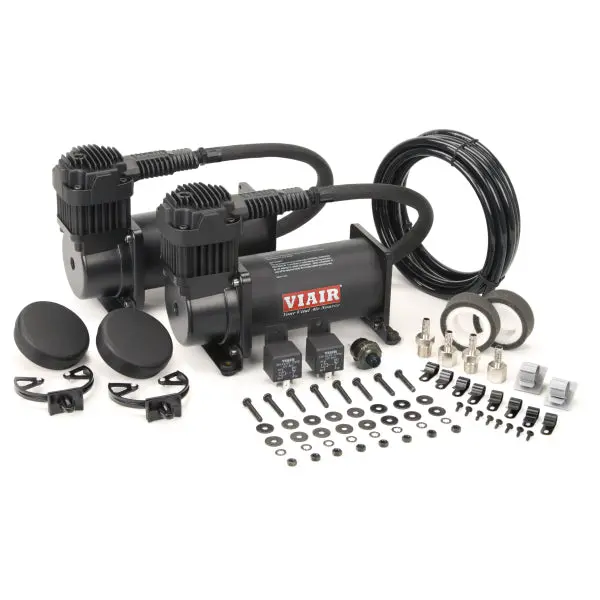

The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features two 12-volt Pewter, Chrome, or Stealth Black 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch. Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware
| FEATURES |
|---|
| – (2) 380C (Chrome or Stealth Black) Air Compressors w/Thermal Overload Protectors |
| – (2) Air Filter Assemblies |
| – (2) Remote Mount Brackets |
| – (2) Sets of Remote Mount Fittings |
| – (2) Sets of Spare Air Filter Elements |
| – (2) Leader Hose Clips |
| – (6) Air Line Clips with Included Hardware |
| – (8) Sets of Nuts, Bolts, Washers and Lock Washers |
| – (2) 40-Amp Relays |
| – (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off) |
| – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve |
| – Air Line (For Remote Mount Filter Installation) |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 10.0 Gallon |
| – Combined Max. Amp Draw: 46-Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 9″L x 4″W x 6.75″H (Each Unit) |
| – Net Weight: 17.50 lbs. |
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 3 min. 13 sec. (± 10 sec.) |
| 165 to 200 PSI | 53 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 7 min. 11 sec. (± 15 sec.) |
| 165 to 200 PSI | 2 min. 06 sec. (± 10 sec.) |
