Description

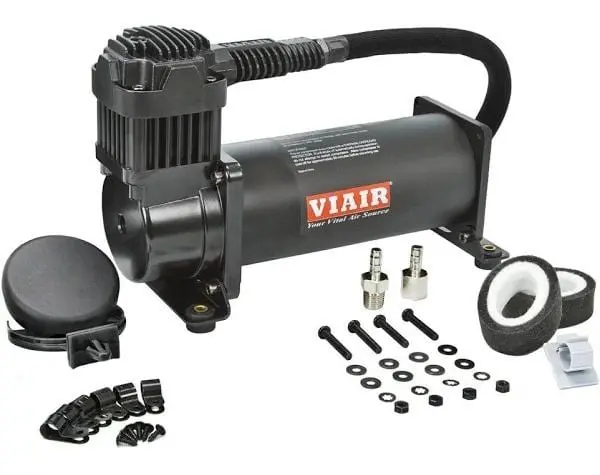

Viair 444c Compressor
All 444C compressors feature a head assembly that includes a newly-developed, patents pending intercooler head. Additionally, they are equipped with a stainless steel braided leader hose with inline check valve assembly that serves to protect the compressor by eliminating the possibility of high amperage restarts.
Included Parts:
– 1 444C Compressors
– Intercooler Head (Patents Pending)
– 1 Air Filter Assemblies
– 1 Remote Filter Mounting Brackets
– 1 Set of Remote Mount Fittings
– 1 Set of Spare Air Filter Elements
– 4 Sets of Nuts, Bolts, Washers and Lock Washers
– 1 Stainless Steel Braided Leader Hoses with Inline Check Valve
– 3 Airline Clips with Included Hardware
Compressor Specs:
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. Amp Draw: 21 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.87″L x 4.2″W x 7.06″H
– Net Weight: 11 lbs.
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 32 sec. (± 10 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 10 min. 30 sec. (± 15 sec.) |
| 165 to 200 PSI | 2 min. 50 sec. (± 05 sec.) |
